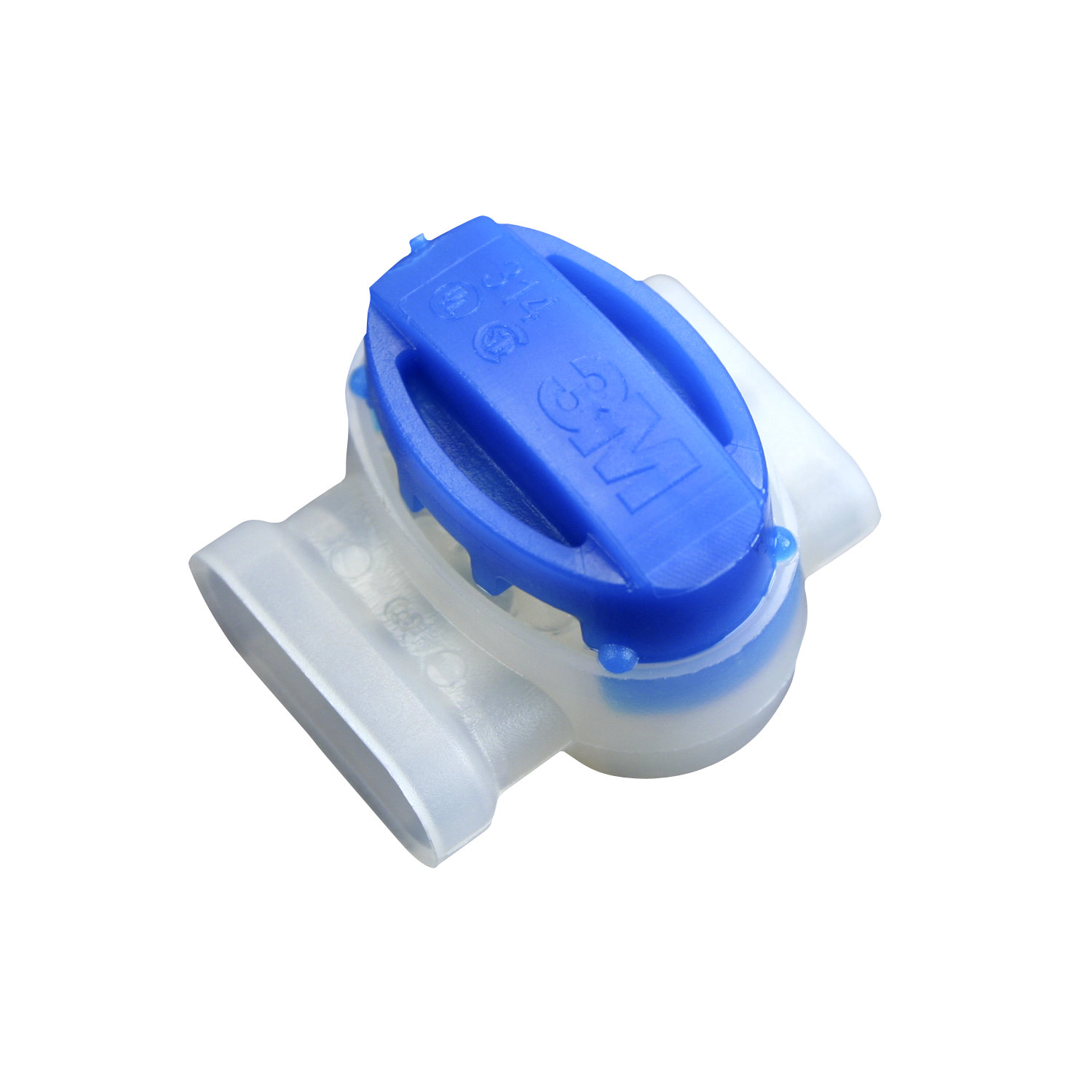

3M™ Scotchlok™ Electrical IDC 314 Pig Tail Connectors

3M™ Scotchlok® 314 Electrical Pigtail Connector electrically connects two or three wire ends, insulates the connection and provides an additional moisture-resistant1 sealing in junction or distribution boxes and other protected connections with a higher needed sealing level for electrical connections (up to IPx8).

Connector is UL Listed wire connector and CSA Certified for 600 volts maximum, building wire: 1000 volts maximum, signs, fixtures and luminaires, and temperature rated 105°C maximum (acc. UL 486C and C22.2 No. 0. 188-MI983).

Category:

Selection table

Data sheets

Download Data Sheet

Reference Name
314 Scotchlok™ 0.5 – 1.5mm Connector type
