Cembre B500E 18V Cordless Hydraulic Crimping Tool

The next generation of Cembre cordless hydraulic tools represents a significantly advantageous evolution from current models.Born of the renowned B51 type crimping tool, first into the market is the 63kN B 500, suitable for a wide range of connectors up to 300 sqmm using die sets common to the Cembre 50kN tooling range.

Category:

Description

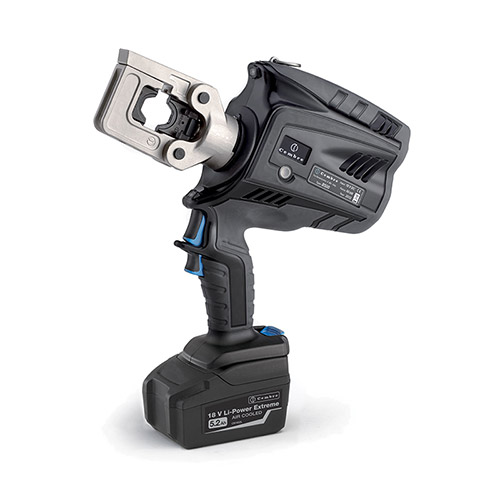

Cembre B500E 18V Cordless Hydraulic Crimping Tool

The Cembre B500E represents the next generation in cordless hydraulic crimping tools. Building on the trusted design of the B51 series, it delivers enhanced performance, portability, and user-friendly features. With a crimping force of 63 kN, it handles connectors up to 300 mm² using die sets compatible with the 50 kN Cembre tooling range.

This compact and ergonomic tool features a dual-speed hydraulic system for faster crimping cycles: a rapid approach followed by a slower, high-force crimp. Equipped with an EPS (Electronic Pressure Sensor) and maximum pressure valve, the B500E ensures accurate, repeatable crimps while enhancing safety. Real-time performance data is clearly shown on the OLED display, including crimping force, battery status, and maintenance alerts.

Designed for portability and comfort, the B500E includes LED workspace lighting, rubber grip inserts, and an ultra-quiet motor. The 180° rotating open head allows flexibility in tight spaces. With onboard data logging for up to 200,000 cycles and USB data transfer, it’s a powerful and intelligent tool for professional crimping tasks.

Key Features:

  • 63 kN crimping force
  • Crimps connectors up to 300 mm²
  • Compatible with 50 kN die sets
  • 18V 4.0 Ah Li-Ion battery-powered
  • Dual-speed hydraulic action for efficiency
  • Electronic Pressure Sensor (EPS) and safety valve
  • OLED display with real-time feedback
  • 180° rotating, openable head
  • Ultra-quiet with minimal vibration
  • LED lighting for improved visibility

Technical Specifications:

Technical Information
Nominal crimping force 63 kN
Connector capacity Up to 300 mm²
Supply voltage 18 V
Battery capacity 4.0 Ah Li-Ion
Hydraulic control EPS + Safety Valve
Crimping head Openable, 180° rotatable
Display OLED
Operating temperature -15°C to +50°C
Weight (with battery) Approx. 4.2–4.6 kg
Dimensions (L×W×H) 349 × 288–291 × 83 mm
Crimping cycle memory Up to 200,000 events

Kit Includes:

  • B500E Tool with 2 x 4.0 Ah batteries
  • Battery charger
  • USB data cable
  • Shoulder strap
  • Heavy-duty plastic carrying case

The Cembre B500E is ideal for contractors and engineers who demand precision, safety, and ease of use—combining advanced hydraulic technology with smart digital control in a portable, rugged design.

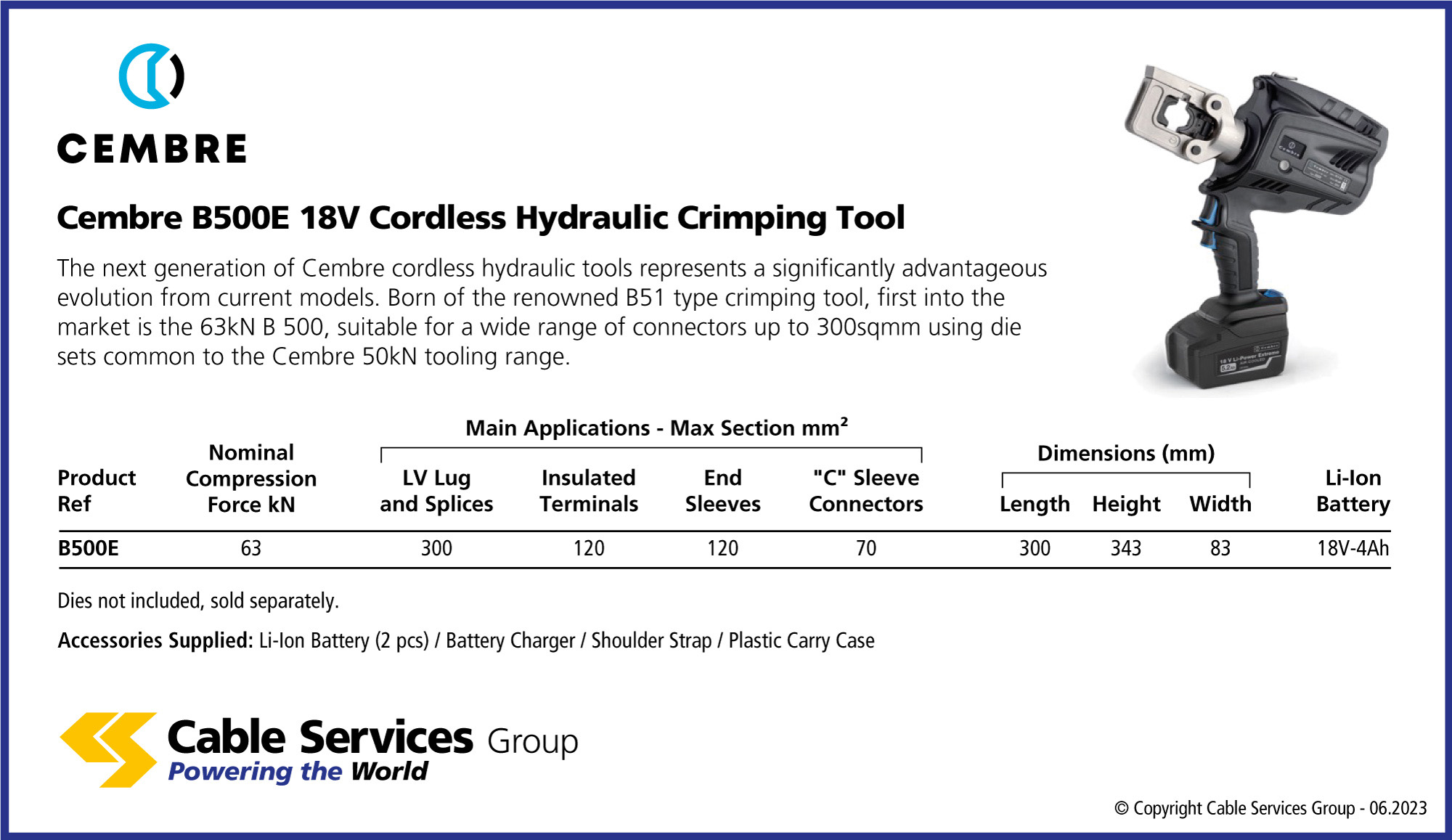

Selection Table

Data Sheets

View directly from manufacturer

Reference Name
B500E 300mm2max. LV Lugs and Splices size
