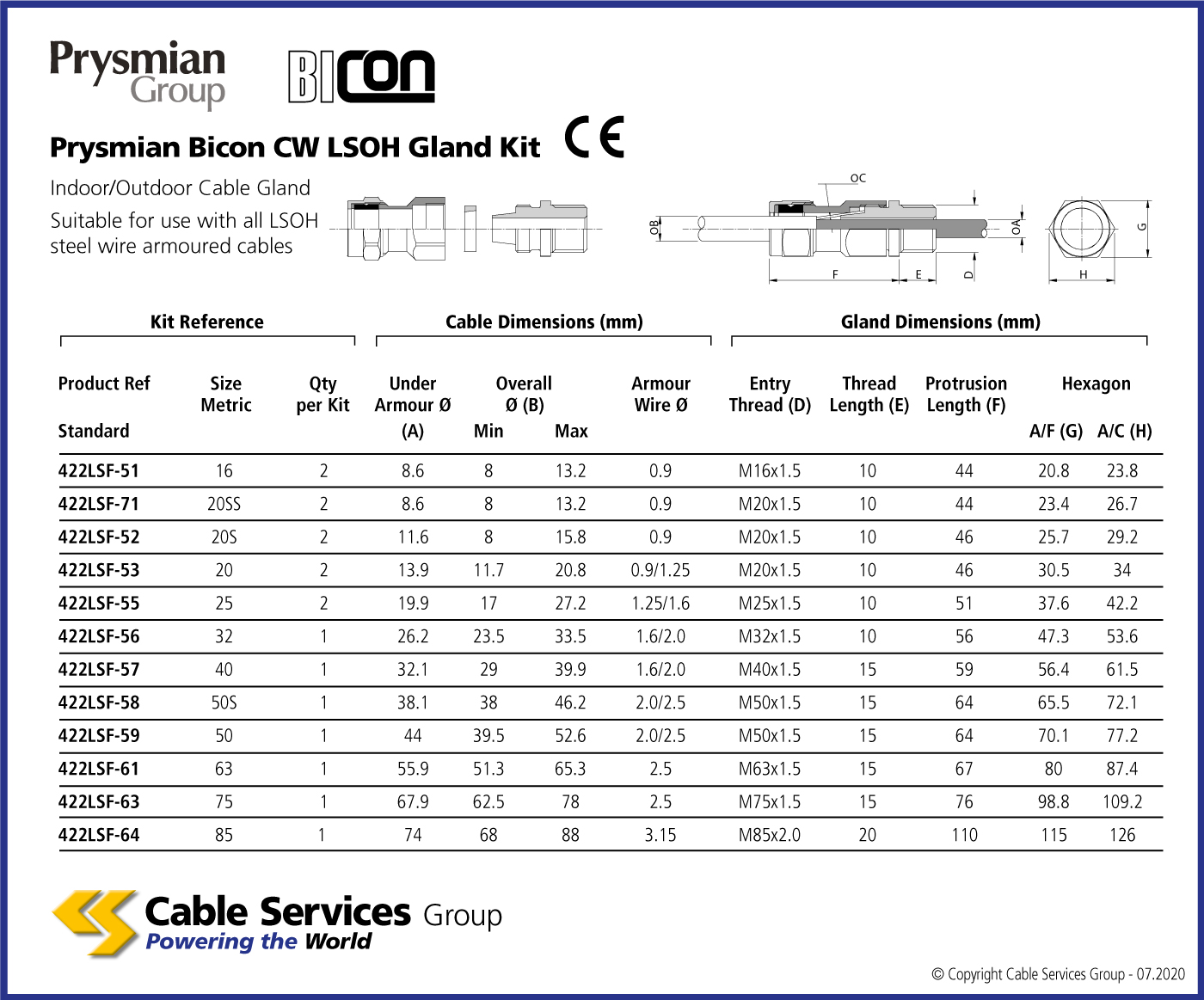

Selection Table

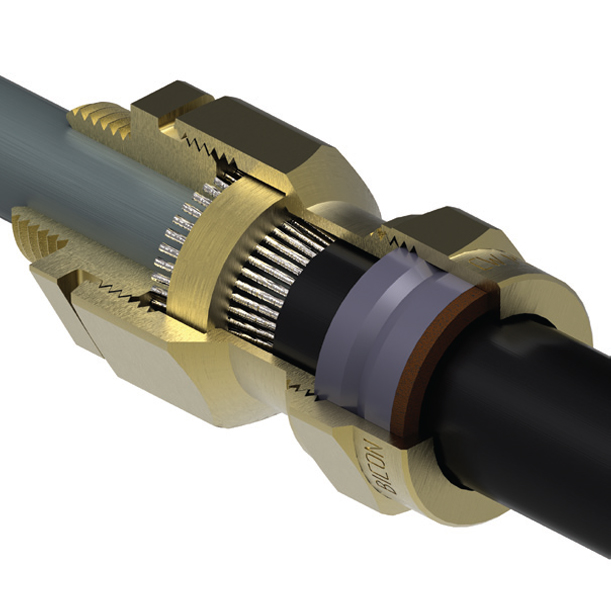

Prysmian Bicon CW LSOH Gland Kit
Indoor/Outdoor Cable Gland. Suitable for use with all LSOH steel wire armoured cables. The 422LSF Series kit comprises of : CW Gland , Brass Earth Tag, Brass Locknut and PVC Shroud. (2 per kit up to and including 25mm size)
Data Sheets
| Reference | Name | |
|---|---|---|
| 422LSF-51 | 16mm conductor size | |
| 422LSF-71 | 20SSmm conductor size | |
| 422LSF-52 | 20Smm conductor size | |
| 422LSF-53 | 20mm conductor size | |
| 422LSF-55 | 25mm conductor size | |
| 422LSF-56 | 32mm conductor size | |
| 422LSF-57 | 40mm conductor size | |
| 422LSF-58 | 50Smm conductor size | |
| 422LSF-59 | 50mm conductor size | |
| 422LSF-61 | 63mm conductor size | |
| 422LSF-63 | 75mm conductor size | |
| 422LSF-64 | 85mm conductor size |
