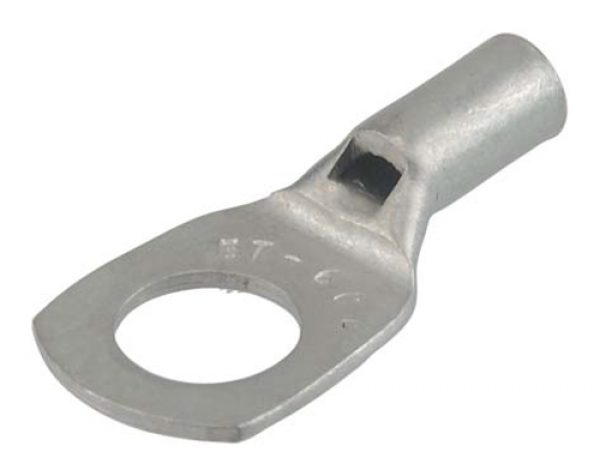

Prysmian Bicon Uninsulated Copper Tube Lugs
A range of terminals for both stranded or flexible annealed copper conductors. Manufactured from high conductivity copper and tin plated, these terminals incorporate a sight hole for visual inspection of conductor insertion. A variety of single stud hole sizes are available and can be compressed with either an indent or hexagonal compression system. (Please enquire for die set recommendations)
Data Sheets
| Reference | Name | |
|---|---|---|
| BT1C35 | 0.75 - 1.5mm2 conductor conductor size, 3.5mm fixing size | |
| BT2C35 | 1.5 - 2.5mm2 conductor conductor size, 3.5mm fixing size | |
| BT2C4 | 1.5 - 2.5mm2 conductor conductor size, 4mm fixing size | |
| BT2C5 | 1.5 - 2.5mm2 conductor conductor size, 5mm fixing size | |
| BT2C6 | 1.5 - 2.5mm2 conductor conductor size, 6mm fixing size | |
| BT2C8 | 1.5 - 2.5mm2 conductor conductor size, 8mm fixing size | |
| BT6C35/4 | 4 - 6mm2 conductor conductor size, 3.5/4mm fixing size | |
| BT6C5 | 4 - 6mm2 conductor conductor size, 5mm fixing size | |
| BT6C6 | 4 - 6mm2 conductor conductor size, 6mm fixing size | |
| BT6C8 | 4 - 6mm2 conductor conductor size, 8mm fixing size | |
| BT6C10 | 4 - 6mm2 conductor conductor size, 10mm fixing size | |
| BT10C5 | 10mm2 conductor conductor size, 5mm fixing size | |
| BT10C6 | 10mm2 conductor conductor size, 6mm fixing size | |
| BT10C8 | 10mm2 conductor conductor size, 8mm fixing size | |
| BT10C10 | 10mm2 conductor conductor size, 10mm fixing size | |
| BT10C12 | 10mm2 conductor conductor size, 12mm fixing size | |
| BT16C5 | 16mm2 conductor conductor size, 5mm fixing size | |
| BT16C6 | 16mm2 conductor conductor size, 6mm fixing size | |
| BT16C8 | 16mm2 conductor conductor size, 8mm fixing size | |
| BT16C10 | 16mm2 conductor conductor size, 10mm fixing size | |
| BT16C12 | 16mm2 conductor conductor size, 12mm fixing size | |
| BT25C5 | 25mm2 conductor conductor size, 5mm fixing size | |
| BT25C6 | 25mm2 conductor conductor size, 6mm fixing size | |
| BT25C8 | 25mm2 conductor conductor size, 8mm fixing size | |
| BT25C10 | 25mm2 conductor conductor size, 10mm fixing size | |
| BT25C12 | 25mm2 conductor conductor size, 12mm fixing size | |
| BT35C6 | 35mm2 conductor conductor size, 6mm fixing size | |
| BT35C8 | 35mm2 conductor conductor size, 8mm fixing size | |
| BT35C10 | 35mm2 conductor conductor size, 10mm fixing size | |
| BT35C12 | 35mm2 conductor conductor size, 12mm fixing size | |
| BT50C6 | 50mm2 conductor conductor size, 6mm fixing size | |
| BT50C8 | 50mm2 conductor conductor size, 8mm fixing size | |
| BT50C10 | 50mm2 conductor conductor size, 10mm fixing size | |
| BT50C12 | 50mm2 conductor conductor size, 12mm fixing size | |
| BT70C6 | 70mm2 conductor conductor size, 6mm fixing size | |
| BT70C8 | 70mm2 conductor conductor size, 8mm fixing size | |
| BT70C10 | 70mm2 conductor conductor size, 10mm fixing size | |
| BT70C12 | 70mm2 conductor conductor size, 12mm fixing size | |
| BT70C16 | 70mm2 conductor conductor size, 16mm fixing size | |
| BT95C8 | 95mm2 conductor conductor size, 8mm fixing size | |
| BT95C10 | 95mm2 conductor conductor size, 10mm fixing size | |
| BT95C12 | 95mm2 conductor conductor size, 12mm fixing size | |
| BT120C10 | 120mm2 conductor conductor size, 10mm fixing size | |
| BT120C12 | 120mm2 conductor conductor size, 12mm fixing size | |
| BT120C16 | 120mm2 conductor conductor size, 16mm fixing size | |
| BT150C10 | 150mm2 conductor conductor size, 10mm fixing size | |
| BT150C12 | 150mm2 conductor conductor size, 12mm fixing size | |
| BT150C16 | 150mm2 conductor conductor size, 16mm fixing size | |

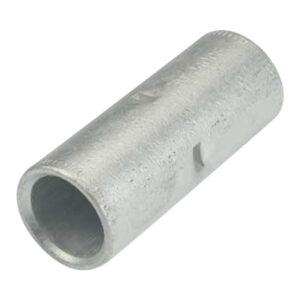

| BT150CU | 150mm2 conductor conductor size, BLANK fixing size | |
| BT185C10 | 185mm2 conductor conductor size, 10mm fixing size | |
| BT185C12 | 185mm2 conductor conductor size, 12mm fixing size | |
| BT185C16 | 185mm2 conductor conductor size, 16mm fixing size | |
| BT185C20 | 185mm2 conductor conductor size, 20mm fixing size | |
| BT185CU | 185mm2 conductor conductor size, BLANK fixing size | |
| BT240C10 | 240mm2 conductor conductor size, 10mm fixing size | |
| BT240C12 | 240mm2 conductor conductor size, 12mm fixing size | |
| BT240C16 | 240mm2 conductor conductor size, 16mm fixing size | |
| BT240C20 | 240mm2 conductor conductor size, 20mm fixing size | |
| BT240CU | 240mm2 conductor conductor size, BLANK fixing size | |
| BT300C12 | 300mm2 conductor conductor size, 12mm fixing size | |
| BT300C16 | 300mm2 conductor conductor size, 16mm fixing size | |
| BT300C20 | 300mm2 conductor conductor size, 20mm fixing size | |
| BT300CU | 300mm2 conductor conductor size, BLANKmm fixing size | |
| BT400C16 | 400mm2 conductor conductor size, 16mm fixing size | |
| BT400C20 | 400mm2 conductor conductor size, 20mm fixing size | |
| BT400CU | 400mm2 conductor conductor size, BLANK fixing size | |
| BT500C16 | 500mm2 conductor conductor size, 16mm fixing size | |
| BT500CU | 500mm2 conductor conductor size, BLANK fixing size | |
| BT630C16 | 630mm2 conductor conductor size, 16mm fixing size | |
| BT630C20 | 630mm2 conductor conductor size, 20mm fixing size | |
| BT630CU | 630mm2 conductor conductor size, BLANK fixing size | |
| BT800C20 | 800mm2 conductor conductor size, 20mm fixing size | |
| BT800CU | 800mm2 conductor conductor size, BLANK fixing size |
