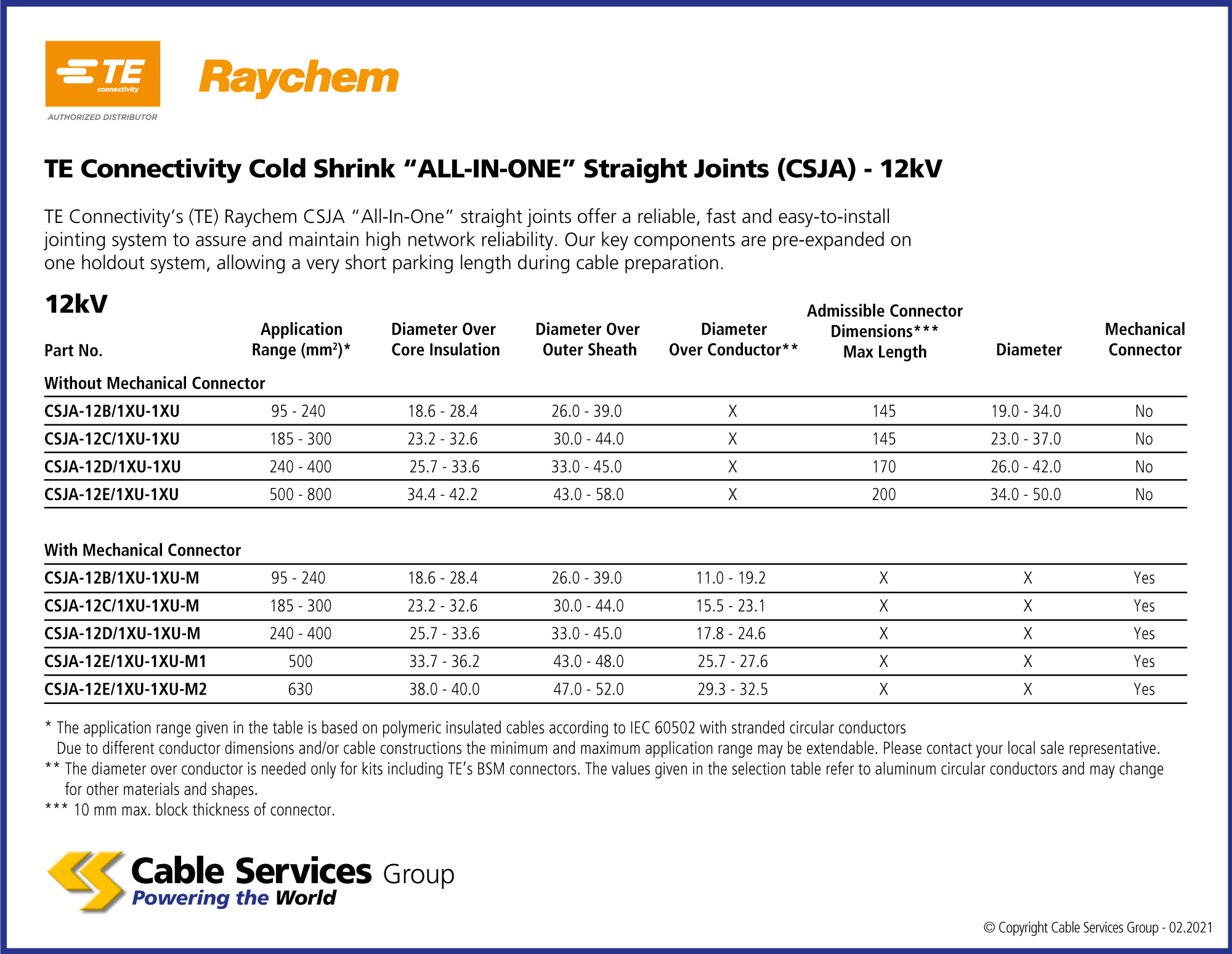

Selection Table

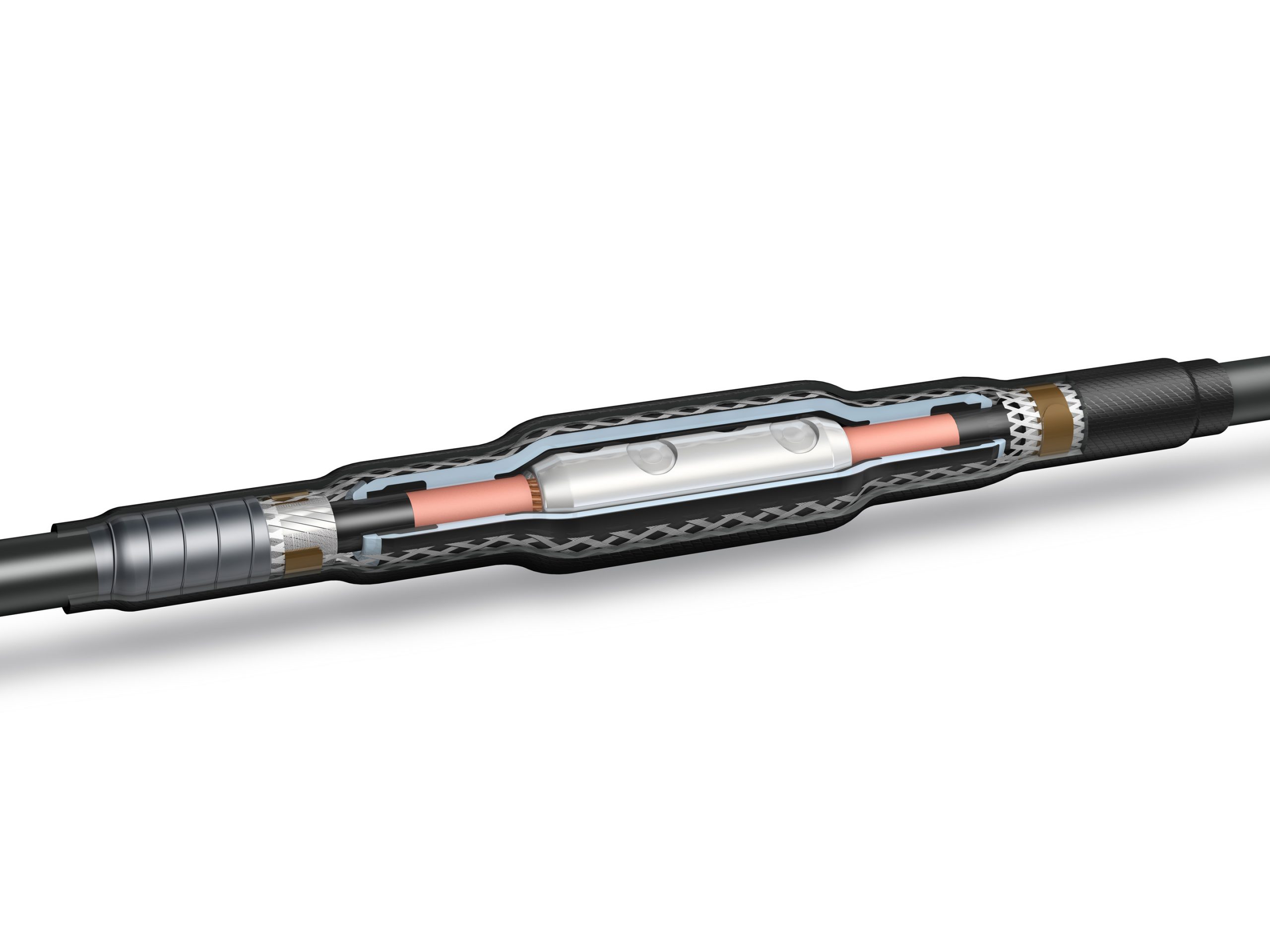

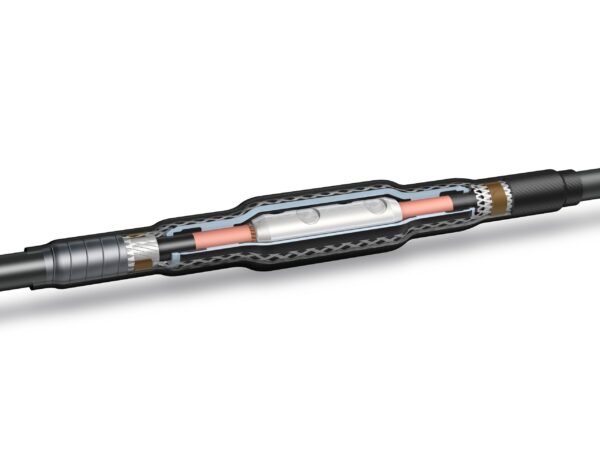

TE Connectivity Cold Shrink “ALL-IN-ONE” Straight Joints (CSJA) – 12kV
TE Connectivity’s (TE) Raychem CSJA “All-In-One” straight joints offer a reliable, fast and easy-to-install jointing system to assure and maintain high network reliability. Our key components are pre-expanded on one holdout system, allowing a very short parking length during cable preparation.
Data Sheets
| Reference | Name | |
|---|---|---|
| CSJA-12B/1XU-1XU | 95 - 240 mm2 cable connector size, Without Mechanical Connector size type | |
| CSJA-12C/1XU-1XU | , Without Mechanical Connector size type | |
| CSJA-12D/1XU-1XU | , Without Mechanical Connector size type | |
| CSJA-12E/1XU-1XU | 500 - 800mm2 cable connector size, Without Mechanical Connector size type | |
| CSJA-12B/1XU-1XU-M | 95 - 240 mm2 cable connector size, With Mechanical Connector size type | |
| CSJA-12C/1XU-1XU-M | , With Mechanical Connector size type | |
| CSJA-12D/1XU-1XU-M | , With Mechanical Connector size type | |
| CSJA-12E/1XU-1XU-M1 | 500mm2 cable connector size, With Mechanical Connector size type | |
| CSJA-12E/1XU-1XU-M2 | 630mm2 cable connector size, With Mechanical Connector size type |
