3M QS1000 Series Inline Cold Shrink Joints 12kV Cable Joints, Three Core – Cold Shrink

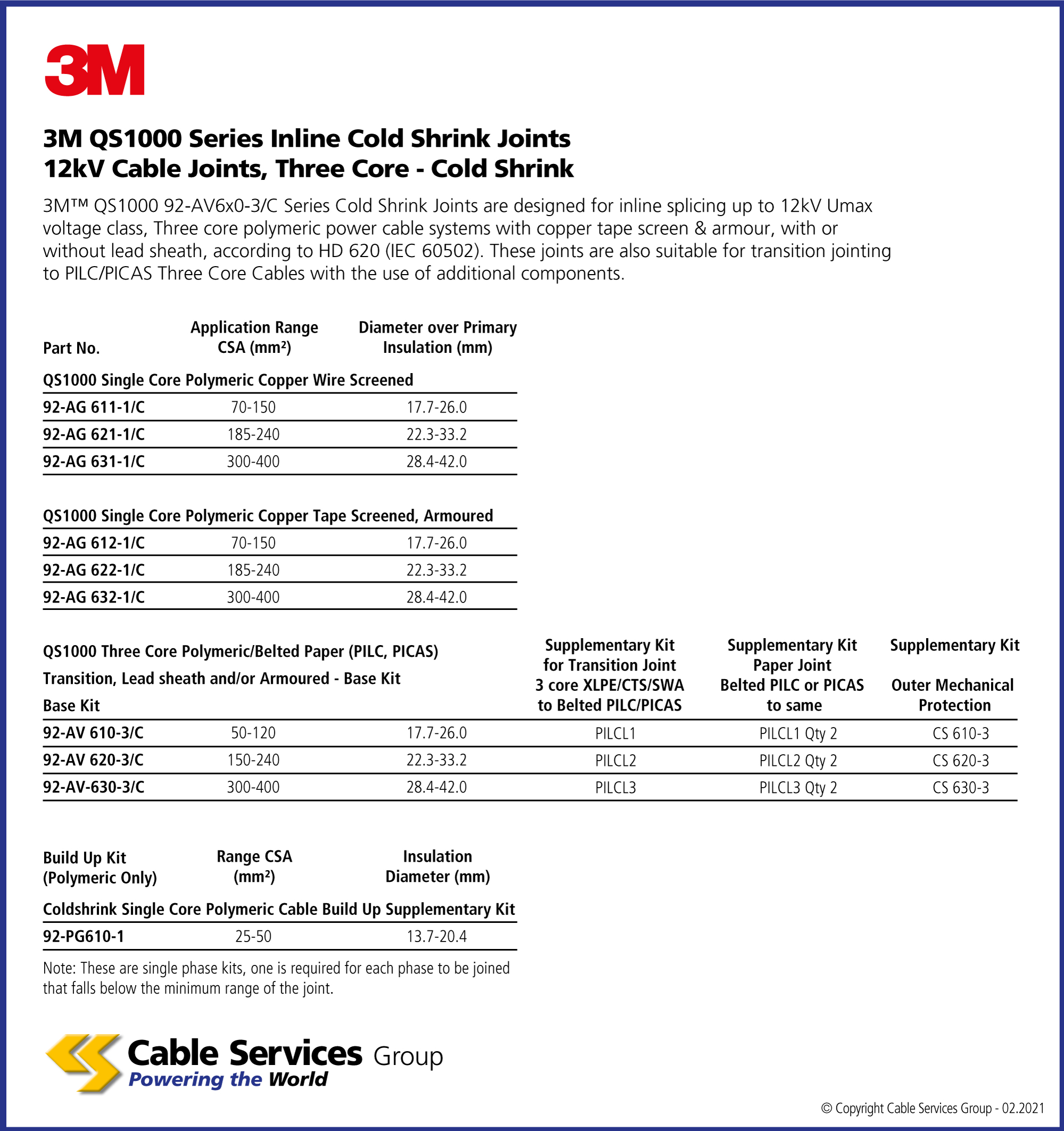

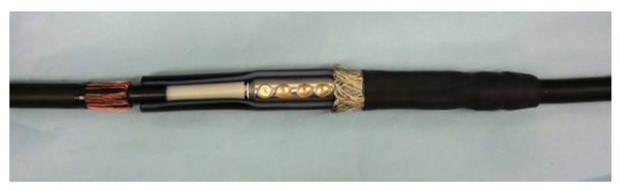

3M™ QS1000 92-AV6x0-3/C Series Cold Shrink Joints are designed for inline splicing up to 12kV Umax voltage class, Three core polymeric power cable systems with copper tape screen & armour, with or without lead sheath, according to HD 620 (IEC 60502). These joints are also suitable for transition jointing to PILC/PICAS Three Core Cables with the use of additional components.
Data Sheets
| Reference | Name | |
|---|---|---|
| 92AG611-1/C | 70-150mm2 cable connector size, QS1000 Single Core Polymeric Copper Wire Screened size type | |
| 92-AG-621-1/C | 185-240mm2 cable connector size, QS1000 Single Core Polymeric Copper Wire Screened size type | |
| 92AG631-1/C | 300-400mm2 cable connector size, QS1000 Single Core Polymeric Copper Wire Screened size type | |
| 92-AG612-1C | 70-150mm2 cable connector size, QS1000 Single Core Polymeric Copper Tape Screened, Armoured size type | |
| 92AG622-1/C | 185-240mm2 cable connector size, QS1000 Single Core Polymeric Copper Tape Screened, Armoured size type | |
| 92AG632-1/C | 300-400mm2 cable connector size, QS1000 Single Core Polymeric Copper Tape Screened, Armoured size type | |
| 92AV610-3/C | 50-120mm2 cable connector size, Base Kit - Lead Sheath and/or Armoured (c/w Connectors) size type | |
| 92AV620-3/C | 150-240mm2 cable connector size, Base Kit - Lead Sheath and/or Armoured (c/w Connectors) size type | |
| 92AV630-3/C | 300-400mm2 cable connector size, Base Kit - Lead Sheath and/or Armoured (c/w Connectors) size type | |
| PILCL1 | 50-120mm2 cable connector size, Supplementary Kit for Transition Joint XLPE-XLPE/XLPE-PILC/PILC-PILC 11kV size type | |
| PILCL2 | 150-240mm2 cable connector size, Supplementary Kit for Transition Joint XLPE-XLPE/XLPE-PILC/PILC-PILC 11kV size type | |
| PILCL3 | 300-400mm2 cable connector size, Supplementary Kit for Transition Joint XLPE-XLPE/XLPE-PILC/PILC-PILC 11kV size type | |
| CS610-3 | 50-120mm2 cable connector size, Outer Protection Tube - 3 core size type | |
| CS6203 | 150-240mm2 cable connector size, Outer Protection Tube - 3 core size type | |
| CS630-3 | 300-400mm2 cable connector size, Outer Protection Tube - 3 core size type | |
| 92PG610-1 | 25-50mm2 cable connector size, Polymeric Cable Build Up Supplementary Kit size type |
