Selection Table
3M QS2000/QS2000B Cold Shrink Cable Joint 24kV

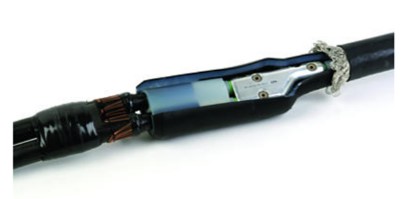

3M™ Cold Shrink Cable Joint QS2000B 93-BP620-1/C is our kit containing 3M™ Cold Shrink QS2000B silicone splice body with integrated stress control device, conductive electrode, silicone elastomeric insulation, outer semi-conductive layer, copper screen sleeve, constant force springs for metallic screen, mechanical connector, and thick-walled EPDM rubber Cold Shrink outer tubes to re-build the cable outer jacket.
Data Sheets

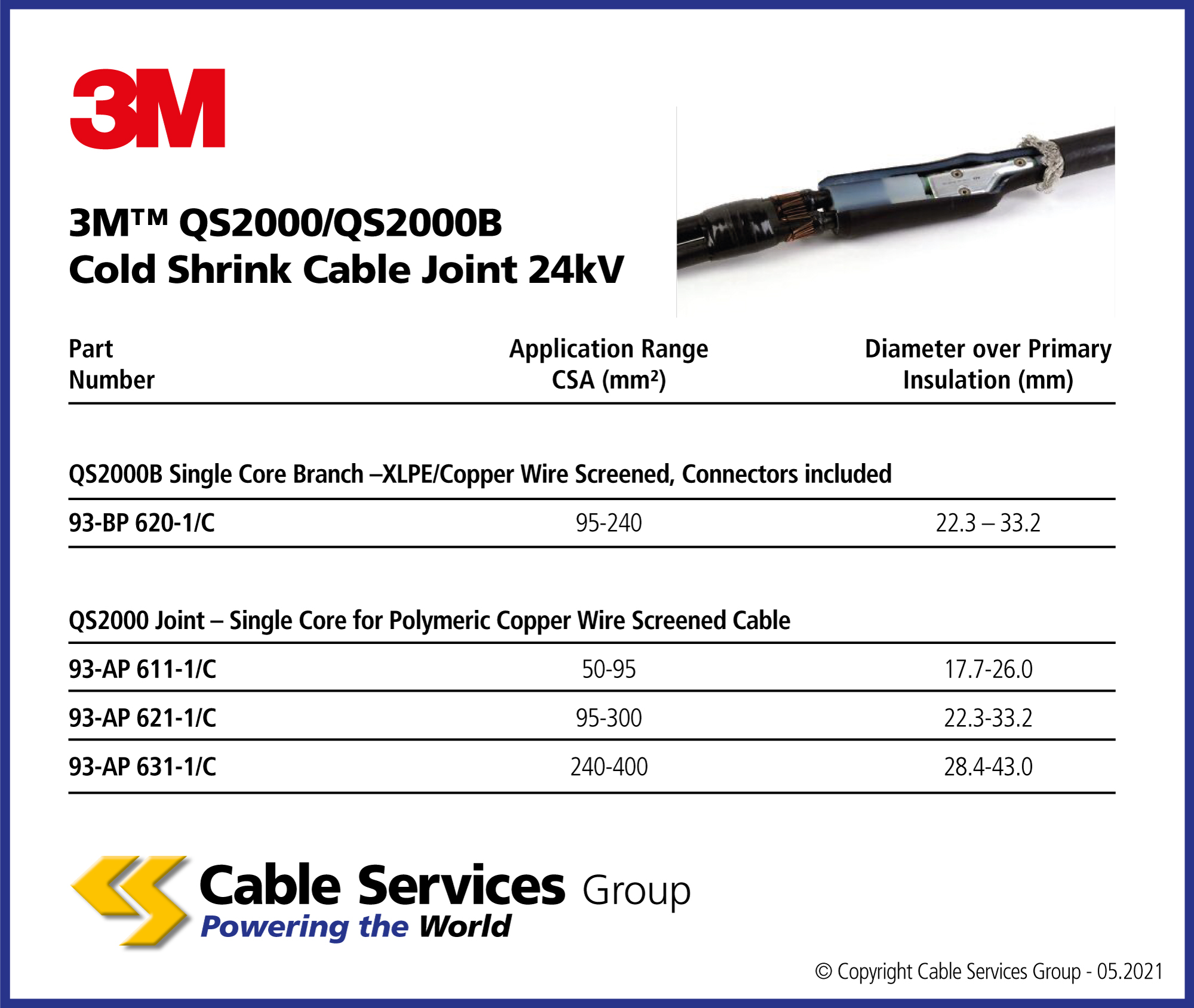

| Reference | Name | |
|---|---|---|
| 93BP620-1/C | 95-240mm2 cable connector size, XLPE/Copper Wire Screened, Connectors included size type | |
| 93AP611-1/C | 50-95mm2 cable connector size, Single Core for Polymeric Copper Wire Screened Cable size type | |
| 93AP621-1/C | 95-300mm2 cable connector size, Single Core for Polymeric Copper Wire Screened Cable size type | |
| 93AP631-1/C | 240-400mm2 cable connector size, Single Core for Polymeric Copper Wire Screened Cable size type |
