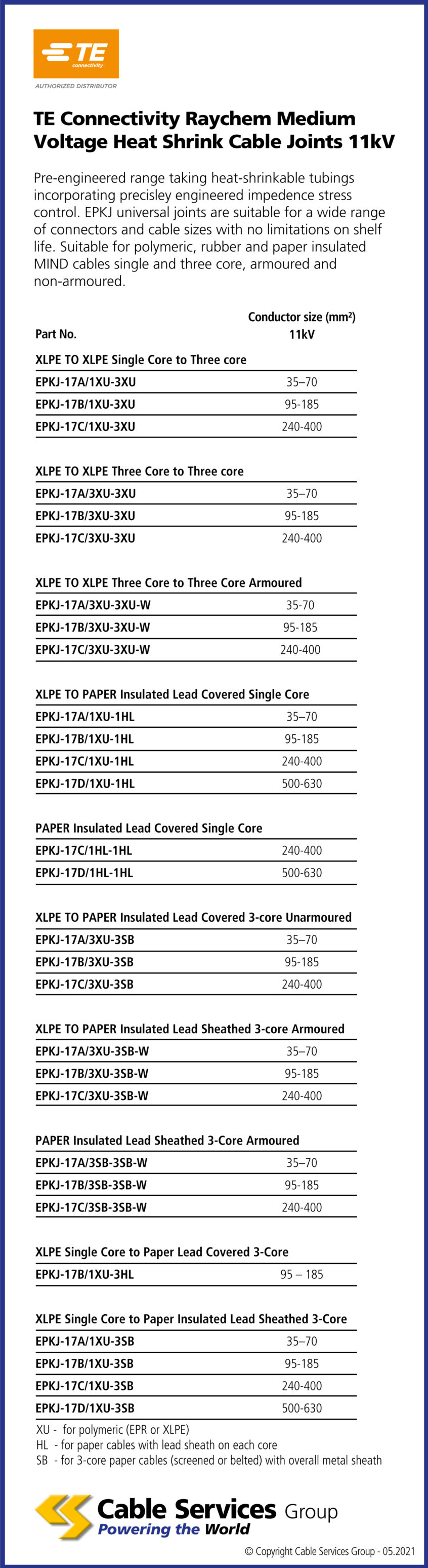

Selection Table

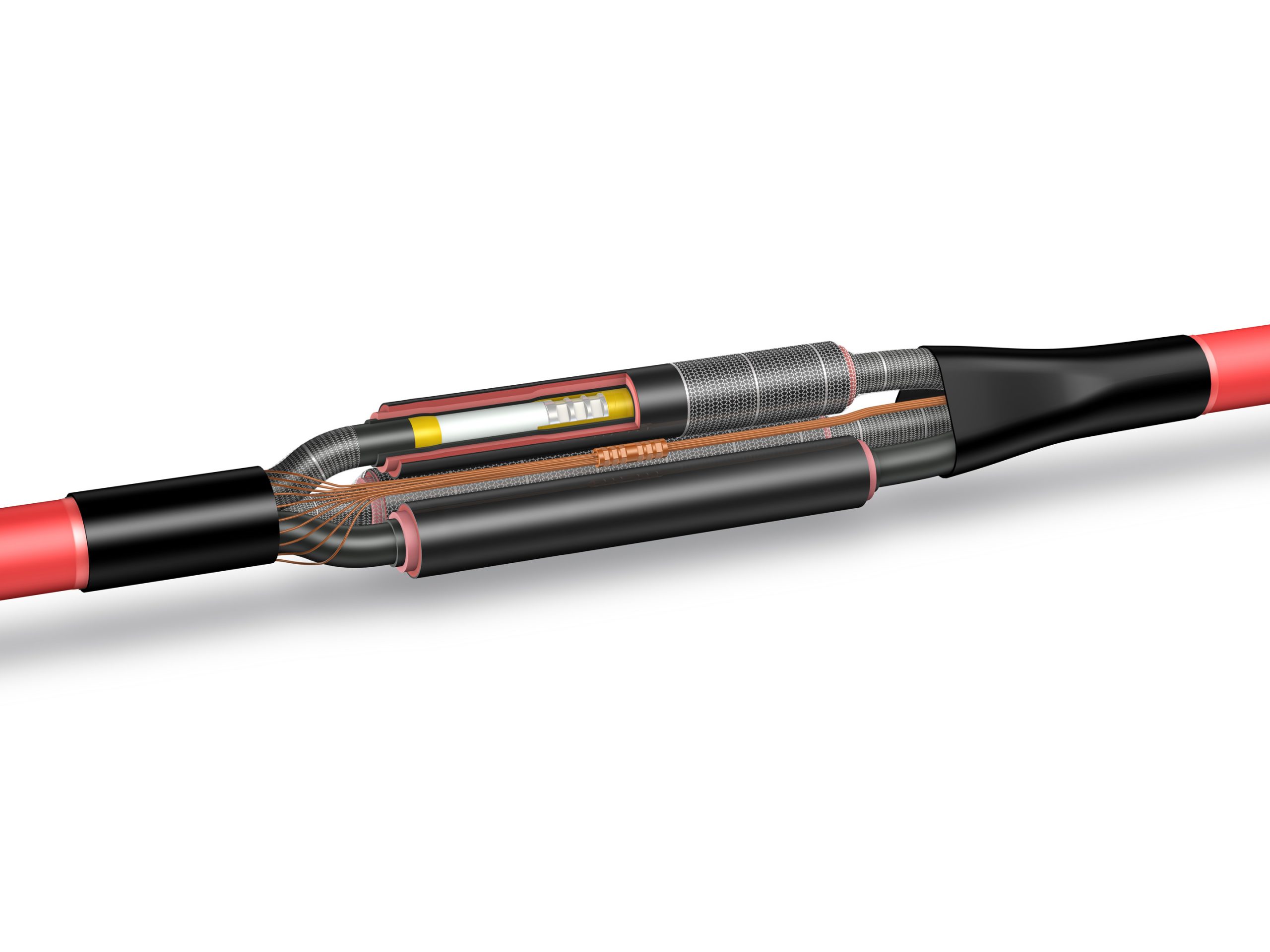

TE Connectivity Raychem Medium Voltage Heat Shrink Cable Joints 11kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. EPKJ universal joints are suitable for a wide range of connectors and cable sizes with no limitations on shelf life. Suitable for polymeric, rubber and paper insulated MIND cables single and three core, armoured and non-armoured
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKJ17D1HL-1HL | 500-630mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17D1XU-3SB | 500-630mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ17C1XU-3SB | 240-400mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ17B1XU-3SB | 95-185mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ17A1XU-3SB | 35–70mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ17B1XU-3HL | , XLPE Single Core to Paper Lead Covered 3-Core size type | |
| EPKJ17C3SB-3SB-W | 240-400mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ17B3SB-3SB-W | 95-185mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ17A3SB-3SB-W | 35–70mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ17C3XU-3SB-W | 240-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ17B3XU-3SB-W | 95-185mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ17A3XU-3SB-W | 35–70mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ17C3XU-3SB | 240-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ17B3XU-3SB | 95-185mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ17A3XU-3SB | 35–70mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered 3-core Unarmoured size type | |
| EPKJ17A1XU3XU | 35–70mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ17C1HL-1HL | 240-400mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17D1XU-1HL | 500-630mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17C1XU-1HL | 240-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17B1XU-1HL | 95-185mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17A1XU-1HL | 35–70mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ17C3XU-3XU-W | 240-400 mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ17B3XU3XUW | 95-185 mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ17A3XU3XUW | 35-70 mm2 cable connector size, XLPE TO XLPE Three Core to Three Core Armoured size type | |
| EPKJ17C3XU-3XU | 240-400mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ17B3XU3XU | 95-185mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ17A3XU3XU | 35–70mm2 cable connector size, XLPE TO XLPE Three Core to Three core size type | |
| EPKJ17C1XU-3XU | 240-400mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type | |
| EPKJ17B1XU3XU | 95-185mm2 cable connector size, XLPE TO XLPE Single Core to Three core size type |
