TE Connectivity Raychem MXSU Medium Voltage Heat Shrink Cable Joints for 1-Core Polymeric Cables 36 kV

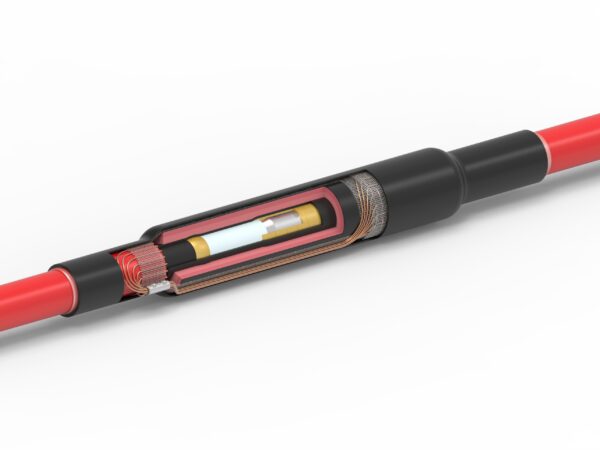

TE Connectivity’s (TE) Raychem MXSU jointing system offer a comprehensive range of joints for all cable types. TE’s Raychem MXSU are based on a joint design using mechanical connectors for conductor and wire shields which are also supplied with the kit. The kits are widely range taking and cover most conductor constructions including their tolerances. Due to the mechanical connectors the joints are easy to install with no crimping tools needed when connecting the cables and no tool maintenance required. TE’s Raychem MXSU are short joints of a space saving design, an essential characteristic when space is limited. Reliability and performance are essential when it comes to customer demands and the MXSU exceeds international performance standards including CENELEC HD 629 or IEC 60502-4 for joints.

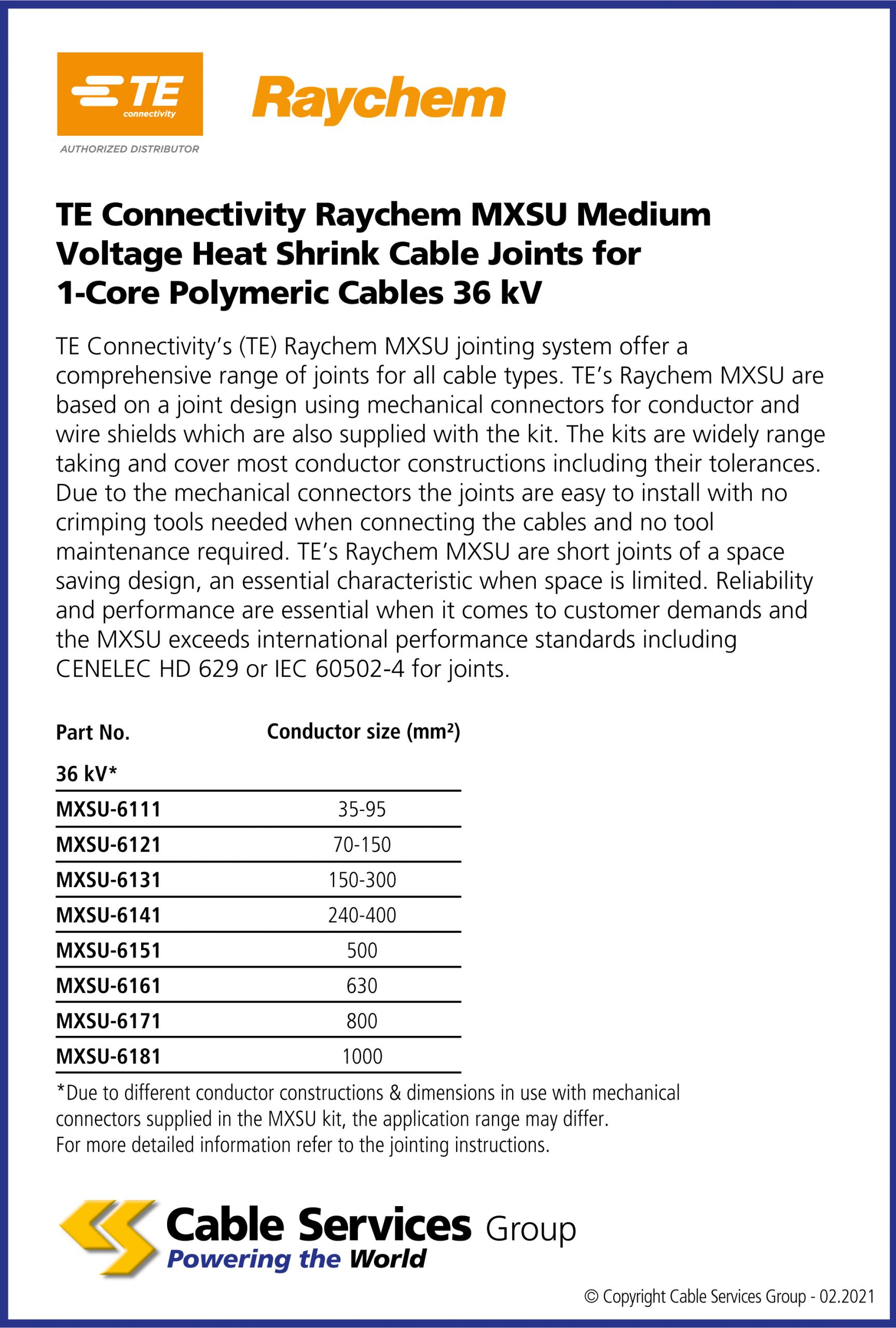

Selection Table

Data Sheets

Download Data Sheet

Reference Name
MXSU6111 35-95mm2 cable connector size
MXSU6121 70-150mm2 cable connector size
MXSU6131 150-300mm2 cable connector size
MXSU6141 240-400mm2 cable connector size
MXSU6151 500mm2 cable connector size
MXSU6161 630mm2 cable connector size
MXSU6171 800mm2 cable connector size
MXSU6181 1000mm2 cable connector size
