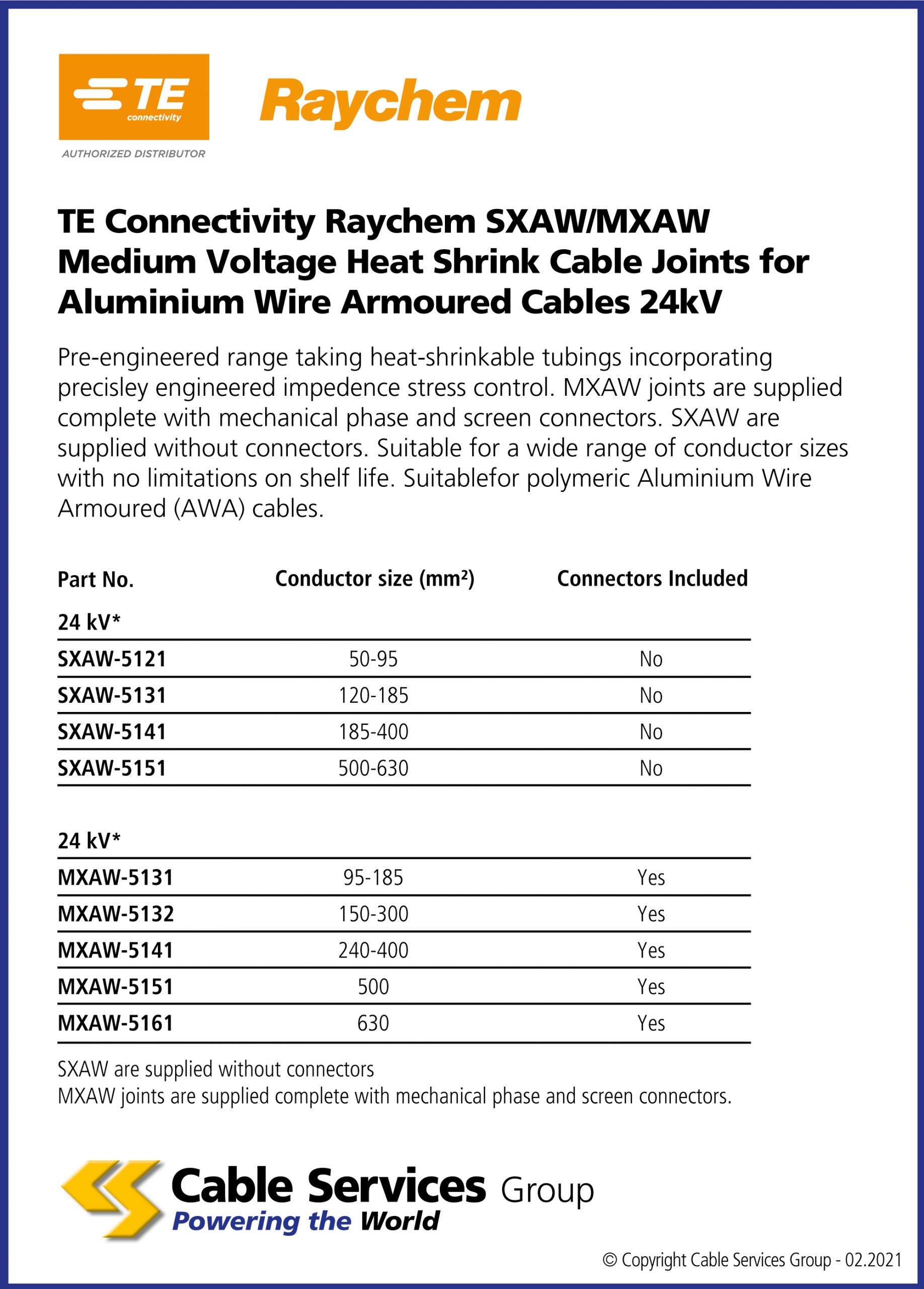

Selection Table
TE Connectivity Raychem SXAW/MXAW medium voltage heat shrink cable joints for aluminium wire armoured cables 24 kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. MXAW joints are supplied complete with mechanical phase and screen connectors. SXAW are supplied without connectors. Suitable for a wide range of conductor sizes with no limitations on shelf life. Suitablefor polymeric Aluminium Wire Armoured (AWA) cables .
Data Sheets
| Reference | Name | |
|---|---|---|
| SXAW5121 | 50-95mm2 cable connector size, No Connectors size type | |
| SXAW5131 | 120-185mm2 cable connector size, No Connectors size type | |
| SXAW5141 | 185-400mm2 cable connector size, No Connectors size type | |
| SXAW5151 | 500-630mm2 cable connector size, No Connectors size type | |
| MXAW5131 | 95-185mm2 cable connector size, Connectors Included size type | |
| MXAW5132 | 150-300mm2 cable connector size, Connectors Included size type | |
| MXAW5141 | 240-400mm2 cable connector size, Connectors Included size type | |
| MXAW5151 | 500mm2 cable connector size, Connectors Included size type | |
| MXAW5161 | 630mm2 cable connector size, Connectors Included size type |
