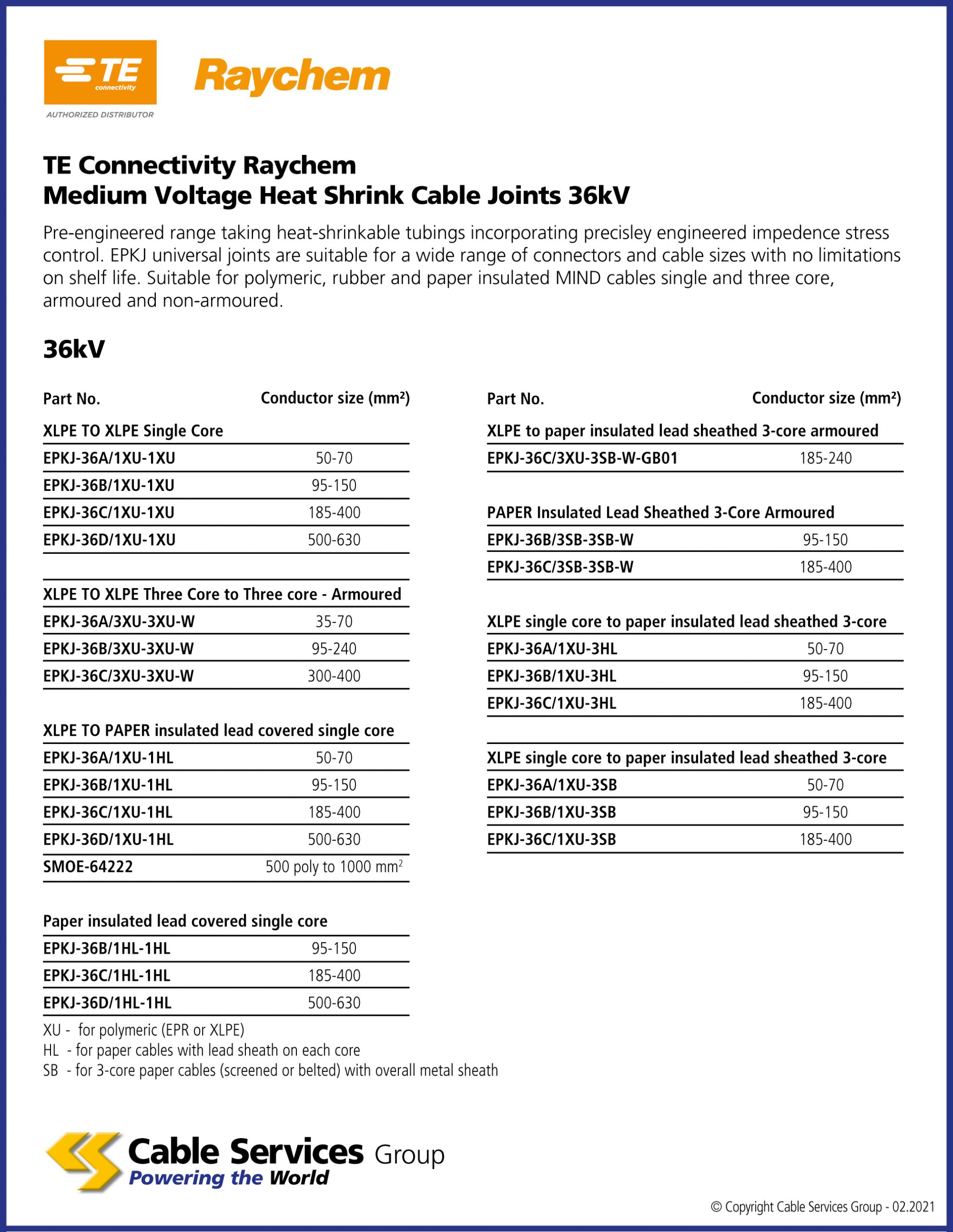

Selection Table

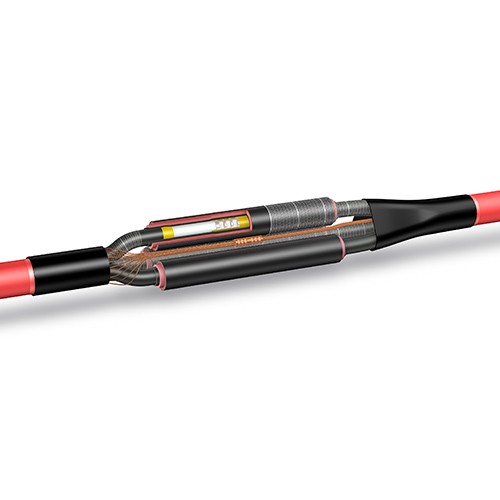

TE Connectivity Raychem Medium Voltage Heat Shrink Cable Joints up to 36 kV
Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control. EPKJ universal joints are suitable for a wide range of connectors and cable sizes with no limitations on shelf life. Suitable for polymeric, rubber and paper insulated MIND cables single and three core, armoured and non-armoured
Data Sheets
| Reference | Name | |
|---|---|---|
| EPKJ36A1XU-1XU | 50-70mm2 cable connector size, XLPE TO XLPE Single Core size type | |
| EPKJ36B1XU-1XU | 95-150mm2 cable connector size, XLPE TO XLPE Single Core size type | |
| EPKJ36C1XU-1XU | 185-400mm2 cable connector size, XLPE TO XLPE Single Core size type | |
| EPKJ36D1XU-1XU | 500-630mm2 cable connector size, XLPE TO XLPE Single Core size type | |
| EPK36A3XU3XU-W | , | |
| EPK36B3XU3XUW | 95-240mm2 cable connector size, | |
| EPKJ36C3XU3XUW | 300-400mm2 cable connector size, | |
| EPKJ36A1XU-1HL | 50-70mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36B1XU-1HL | 95-150mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36C1XU-1HL | 185-400mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36D1XU-1HL | 500-630mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| SMOE64222 | 500 poly to 1000 mm2mm2 cable connector size, XLPE TO PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36B1HL-1HL | 95-150mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36C1HL-1HL | 185-400mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36D1HL-1HL | 500-630mm2 cable connector size, PAPER Insulated Lead Covered Single Core size type | |
| EPKJ36C3XU-3SB-W-GB01 | 185-240mm2 cable connector size, XLPE TO PAPER Insulated Lead Sheathed 3-core Armoured size type | |
| EPKJ36B3SB-3SB-W | 95-150mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ36C3SB-3SB-W | 185-400mm2 cable connector size, PAPER Insulated Lead Sheathed 3-Core Armoured size type | |
| EPKJ36A1XU-3HL | 50-70mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ36B1XU-3HL | 95-150mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ-36C/1XU-3HL | 185-400mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ36A1XU-3SB | 50-70mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ36B1XU-3SB | 95-150mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type | |
| EPKJ36C1XU-3SB | 185-400mm2 cable connector size, XLPE Single Core to Paper Insulated Lead Sheathed 3-Core size type |
