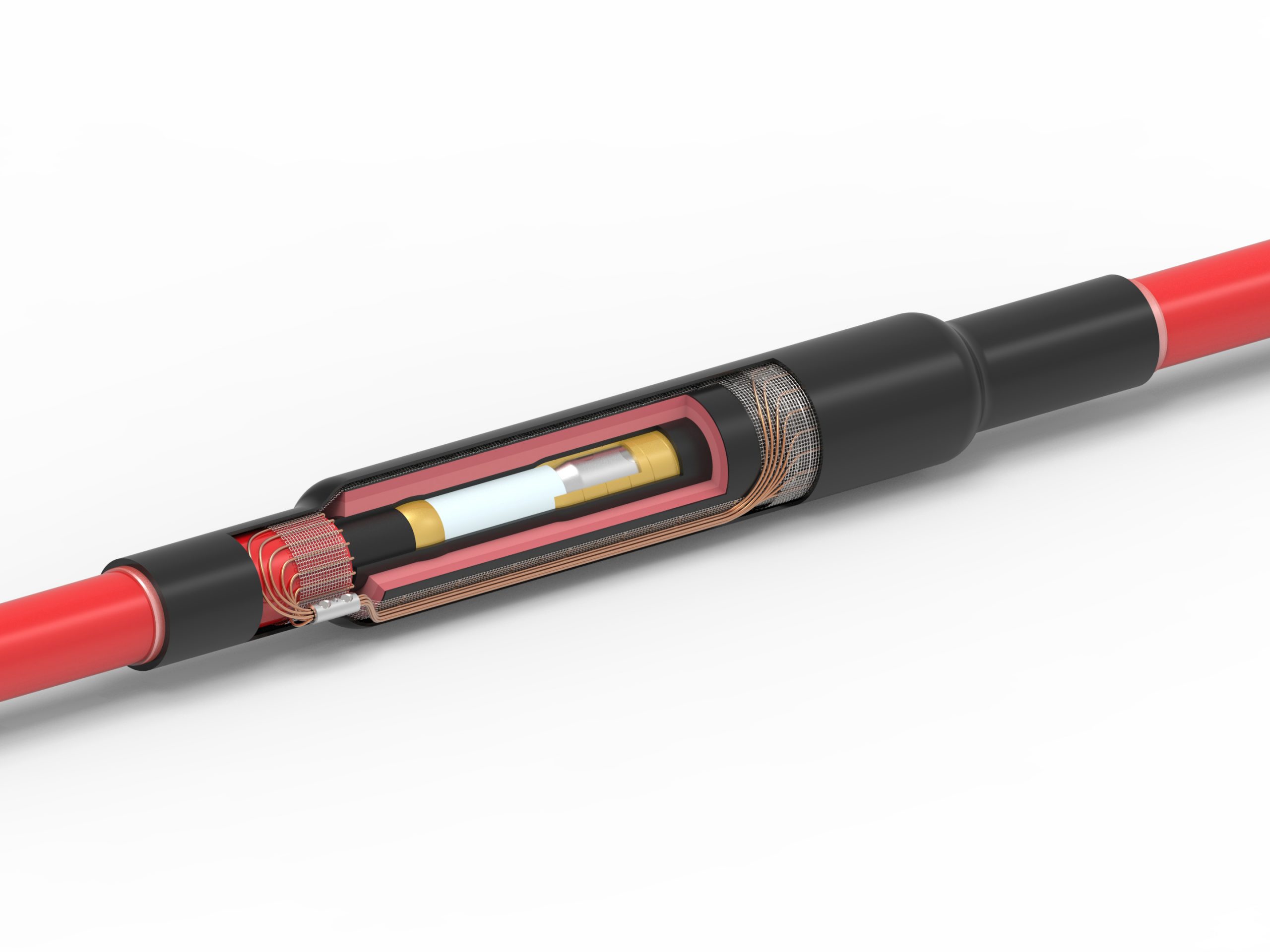

TE Connectivity Raychem MXSU Medium Voltage Heat Shrink Cable Joints for 1-Core Polymeric Cables 12kV

TE Connectivity’s (TE) Raychem MXSU jointing system offer a comprehensive range of joints for all cable types. TE’s Raychem MXSU are based on a joint design using mechanical connectors for conductor and wire shields which are also supplied with the kit. The kits are widely range taking and cover most conductor constructions including their tolerances. Due to the mechanical connectors the joints are easy to install with no crimping tools needed when connecting the cables and no tool maintenance required. TE’s Raychem MXSU are short joints of a space saving design, an essential characteristic when space is limited. Reliability and performance are essential when it comes to customer demands and the MXSU exceeds international performance standards including CENELEC HD 629 or IEC 60502-4 for joints.

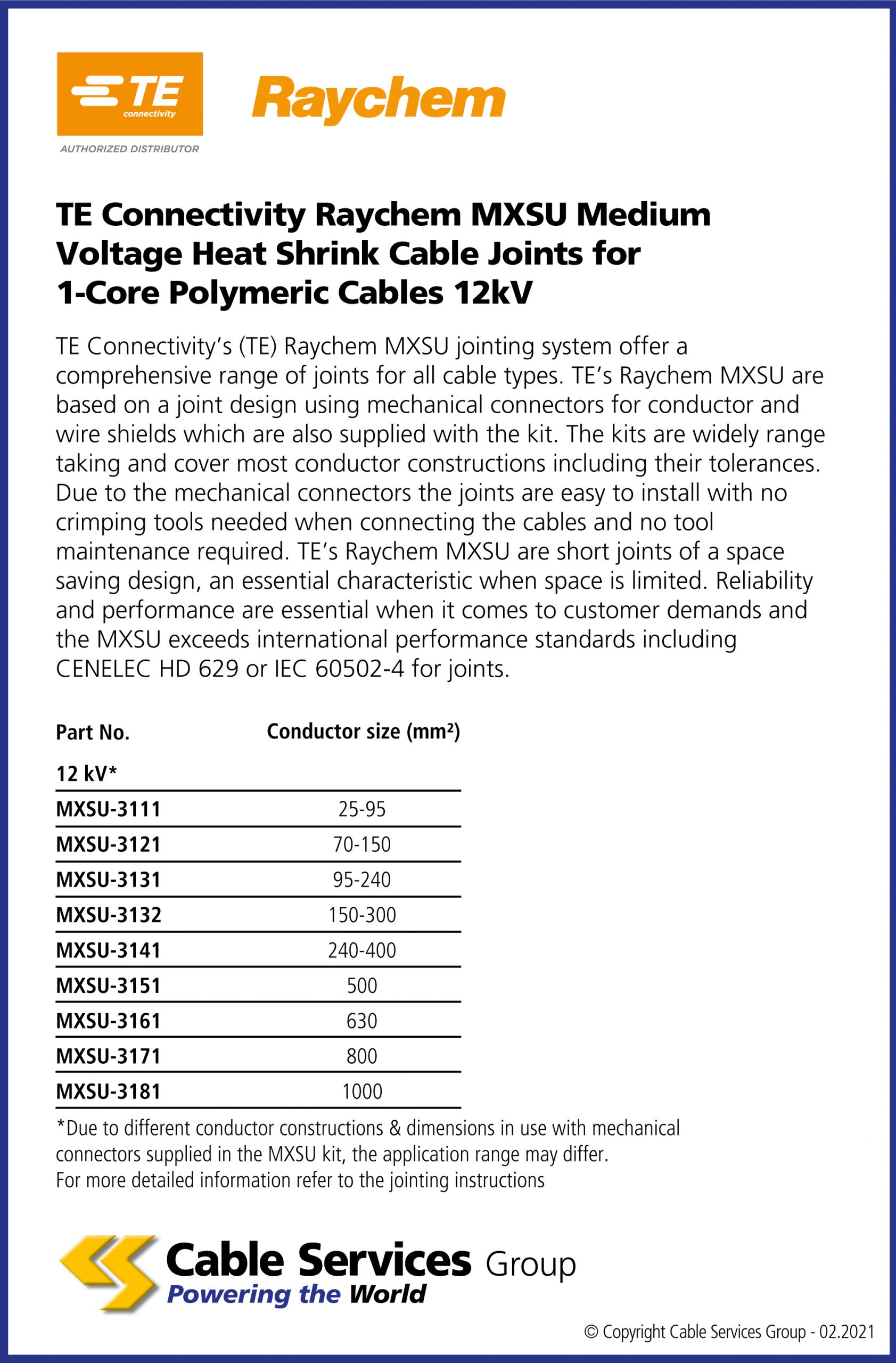

Selection Table

Data Sheets

Download Data Sheet

Reference Name
MXSU3111 25-95mm2 cable connector size
MXSU3121 70-150mm2 cable connector size
MXSU3131 95-240mm2 cable connector size
MXSU3132 150-300mm2 cable connector size
MXSU3141 240-400mm2 cable connector size
MXSU3151 500mm2 cable connector size
MXSU-3161 630mm2 cable connector size
MXSU3171 800mm2 cable connector size
MXSU3181 1000mm2 cable connector size
