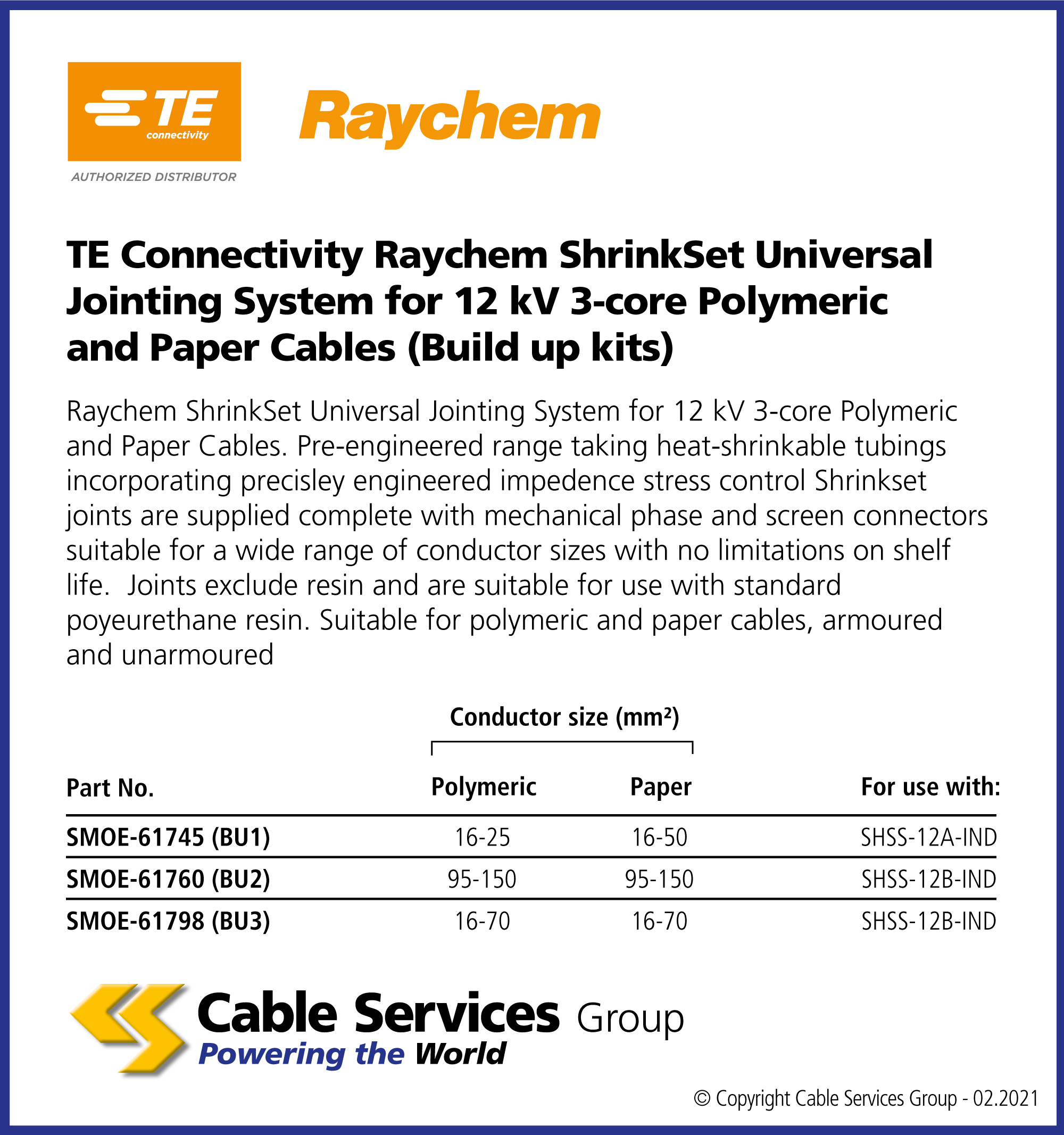

Selection Table
TE Connectivity Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables (Build up kits)

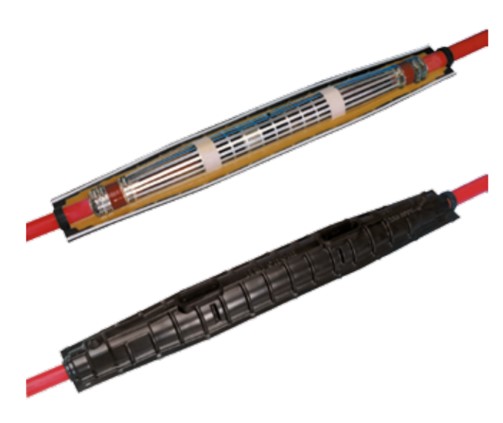

Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables. Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control Shrinkset joints are supplied complete with mechanical phase and screen connectors suitable for a wide range of conductor sizes with no limitations on shelf life. Joints exclude resin and are suitable for use with standard poyeurethane resin. Suitable for polymeric and paper cables, armoured and unarmoured
Data Sheets
| Reference | Name | |
|---|---|---|
| SMOE61745 | 16-25mm2 poly cable connector size, 16-50mm2 paper size type | |
| SMOE61760 | 95-150mm2 poly cable connector size, 95-150mm2 paper size type | |
| SMOE61798 | 16-70mm2 poly cable connector size, 16-70mm2 paper size type |
