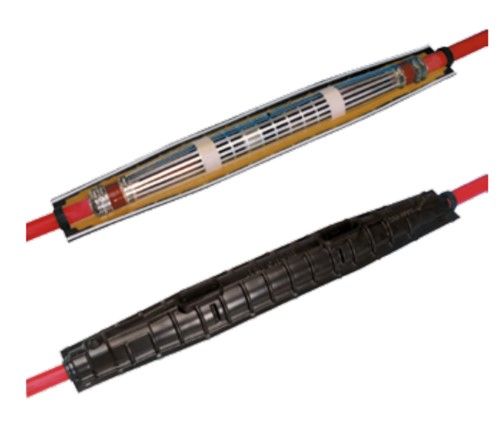

TE Connectivity Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables (Loop Joint)

£0.00

Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables. Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control Shrinkset joints are supplied complete with mechanical phase and screen connectors suitable for a wide range of conductor sizes with no limitations on shelf life. Joints exclude resin and are suitable for use with standard poyeurethane resin. Suitable for polymeric and paper cables, armoured and unarmoured

Clear

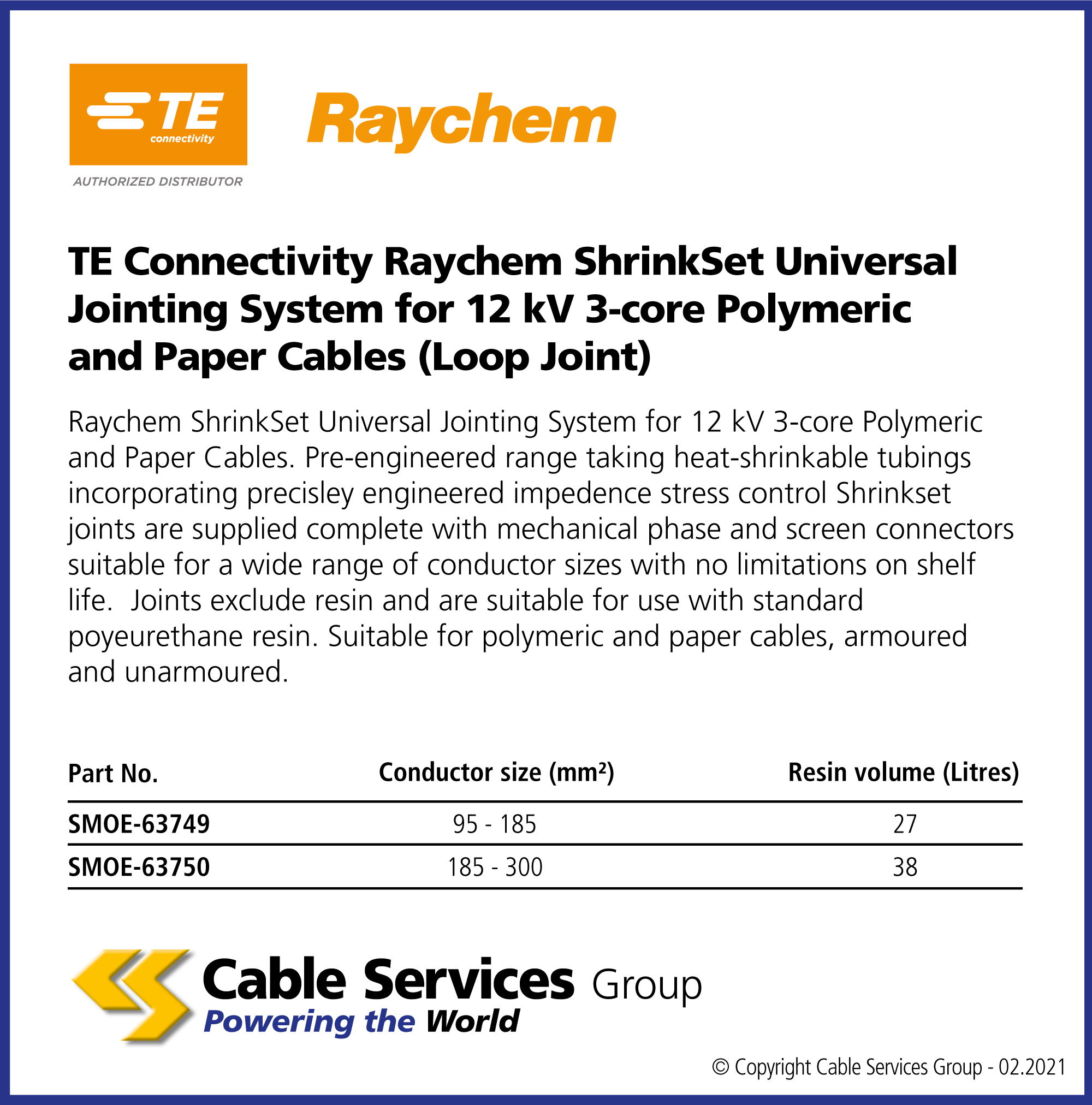

Selection Table

Data Sheets

Download Data Sheet

Reference Name
SMOE63749 95-185mm2 cable connector size
SMOE63750 185-300mm2 cable connector size
