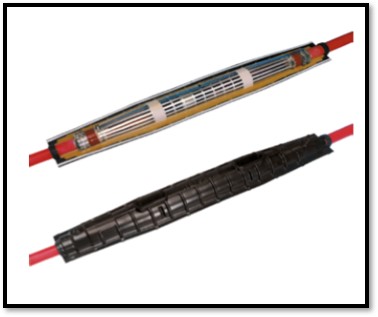

TE Connectivity Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables (Straight Joint)

£0.00

Raychem ShrinkSet Universal Jointing System for 12 kV 3-core Polymeric and Paper Cables. Pre-engineered range taking heat-shrinkable tubings incorporating precisley engineered impedence stress control Shrinkset joints are supplied complete with mechanical phase and screen connectors suitable for a wide range of conductor sizes with no limitations on shelf life. Joints exclude resin and are suitable for use with standard poyeurethane resin. Suitable for polymeric and paper cables, armoured and unarmoured

Clear

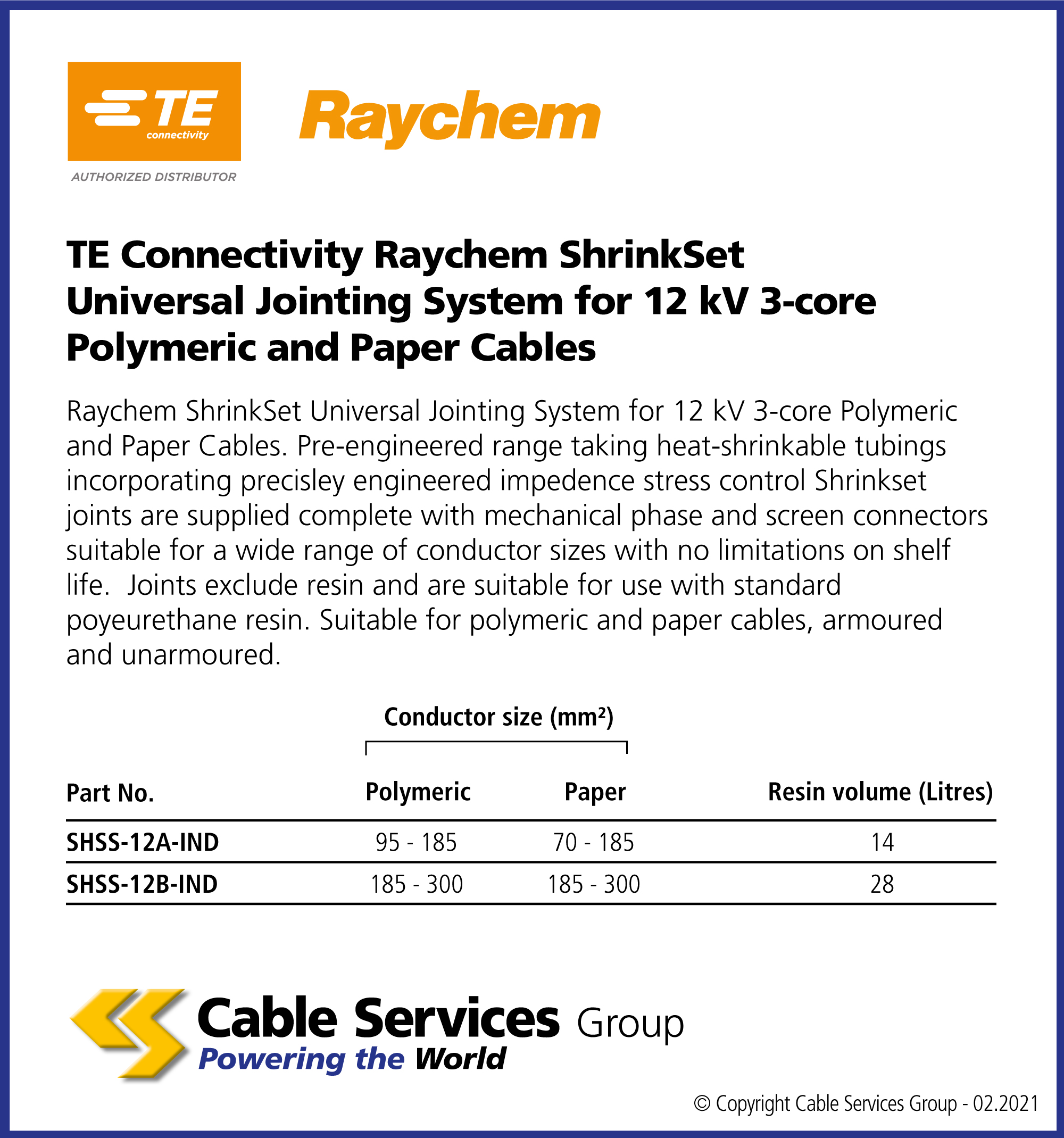

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
1008A,
1008A95-185mm2 poly cable connector size,
SHSS12A-IND95-185mm2 poly cable connector size, 70-185mm2 paper size type
SHSS12B-IND185-300mm2 poly cable connector size, 185-300mm2 paper size type
