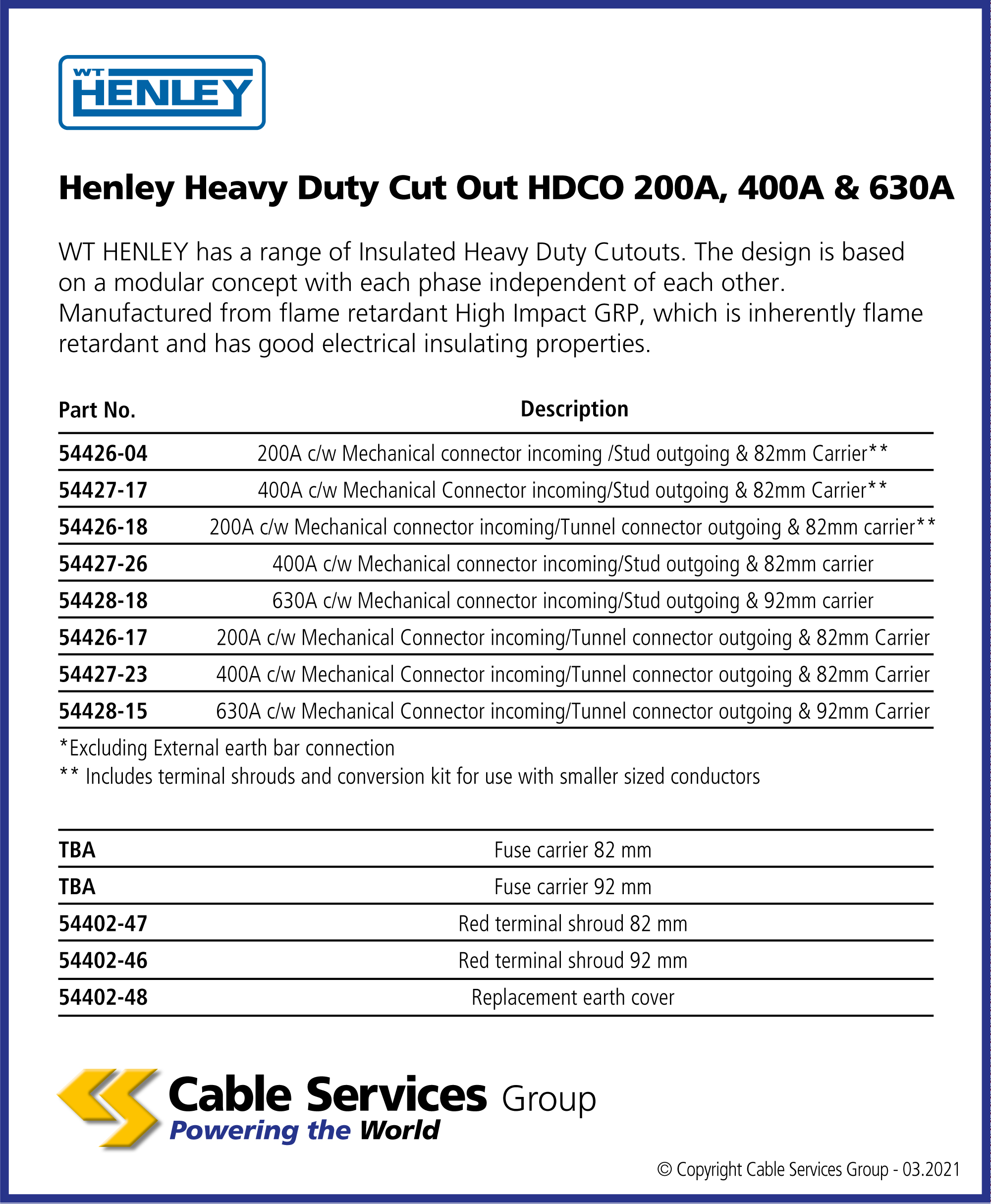

Selection Table

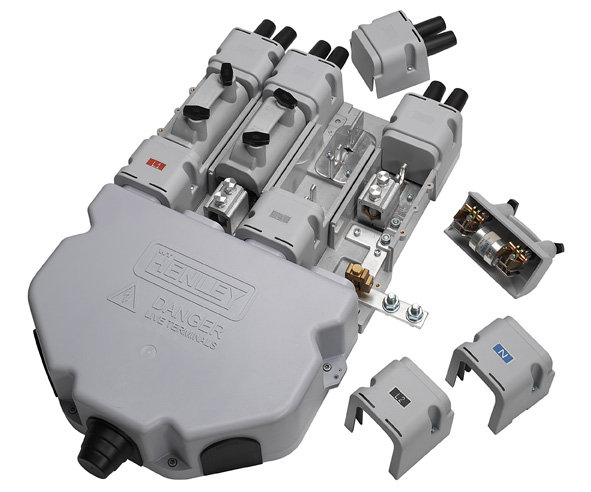

Henley Heavy Duty Cut Out HDCO 200A, 400A & 630A
WT HENLEY has a range of Insulated Heavy Duty Cutouts. The design is based on a modular concept with each phase independent of each other. Manufactured from flame retardant High Impact GRP, which is inherently flame retardant and has good electrical insulating properties.
Data Sheets
| Reference | Name | |
|---|---|---|
| 54426-04 | 200A c/w Mechanical connector incoming /Stud outgoing & 82mm Carrier** variant | |
| 54427-17 | 400A c/w Mechanical Connector incoming/Stud outgoing & 82mm Carrier** variant | |
| 54426-18 | 200A c/w Mechanical connector incoming/Tunnel connector outgoing & 82mm carrier** variant | |
| 54427-26 | 400A c/w Mechanical Connector incoming/Stud outgoing & 82mm Carrier** variant | |
| 54428-18 | 630A c/w Mechanical connector incoming/Stud outgoing & 92mm carrier variant | |
| 54426-17 | 200A c/w Mechanical connector incoming/Tunnel connector outgoing & 82mm carrier** variant | |
| 54427-23 | 400A c/w Mechanical Connector incoming/Tunnel connector outgoing & 82mm Carrier variant | |
| 54428-15 | 630A c/w Mechanical Connector incoming/Tunnel connector outgoing & 92mm Carrier variant | |
| TBA82 | Fuse carrier 82 mm variant | |
| TBA-92 | Fuse carrier 92 mm variant | |
| 54402-47 | Red terminal shroud 82 mm variant | |
| 54402-46 | Red terminal shroud 92 mm variant | |
| 54402-48 | Replacement earth cover variant |
