Technical Data
nVent Raychem Reducer

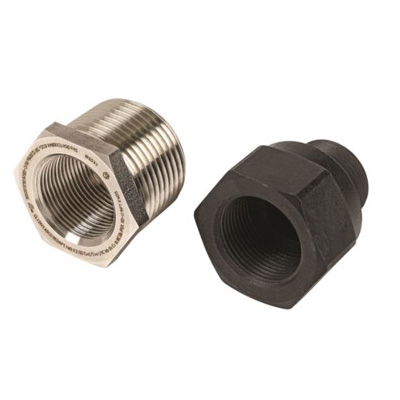

nVent RAYCHEM Adapters/Reducers are available in different materials, to suit a wide range of applications.
Data Sheets

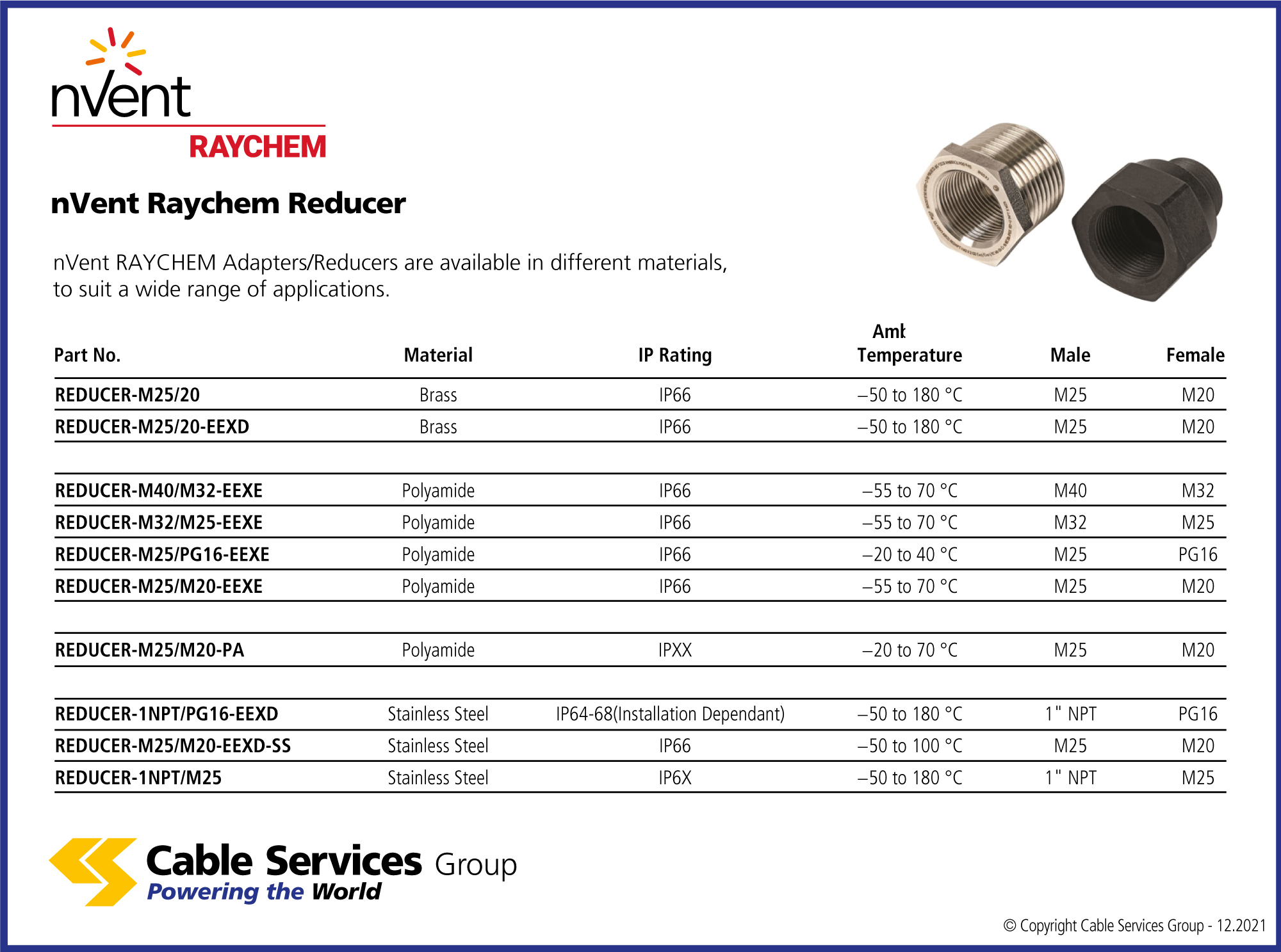

| Reference | Name | |
|---|---|---|
| REDUCER-M25/20 | BrassMaterial description, −50 to 180 °CAmbient Temperature size | |
| REDUCER-M25/20-EEXD | BrassMaterial description, −50 to 180 °CAmbient Temperature size | |
| REDUCER-M40/M32-EEXE | PolyamideMaterial description, −55 to 70 °CAmbient Temperature size | |
| REDUCER-M32/M25-EEXE | PolyamideMaterial description, −55 to 70 °CAmbient Temperature size | |
| REDUCER-M25/PG16-EEXE | PolyamideMaterial description, −20 to 40 °CAmbient Temperature size | |
| REDUCER-M25/M20-EEXE | PolyamideMaterial description, −55 to 70 °CAmbient Temperature size | |
| REDUCER-M25/M20-PA | PolyamideMaterial description, −20 to 70 °CAmbient Temperature size | |
| REDUCER-1NPT/PG16-EEXD | Stainless SteelMaterial description, −50 to 180 °CAmbient Temperature size | |
| REDUCER-M25/M20-EEXD-SS | Stainless SteelMaterial description, −50 to 100 °CAmbient Temperature size | |
| REDUCER-1NPT/M25 | Stainless SteelMaterial description, −50 to 180 °CAmbient Temperature size |
