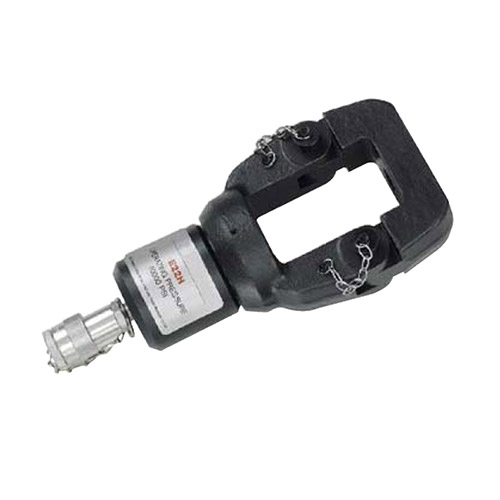

Prysmian Bicon E22H Hydraulic Crimp Head

Latch top of this compression head can be pivotted open to allow positioning around the conductor.
Delivers a compressive force of 22 tonnes.
Will install copper connectors up to 1000mm².
Will install aluminium connectors up to 960mm²

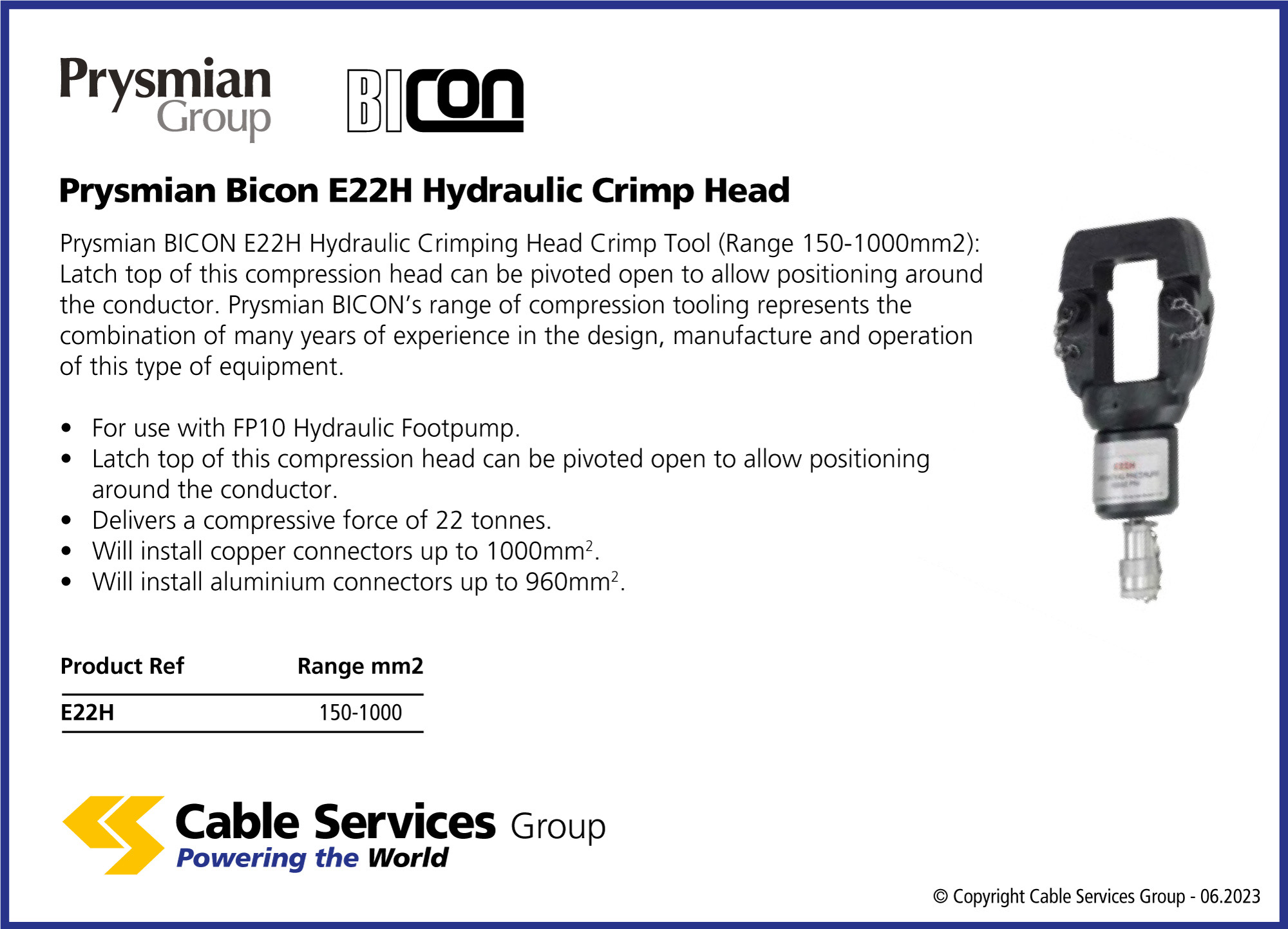

Selection Table

Data Sheets

View directly from manufacturer

Reference Name
E22H 150 - 1000mm2range size
