Selection Table

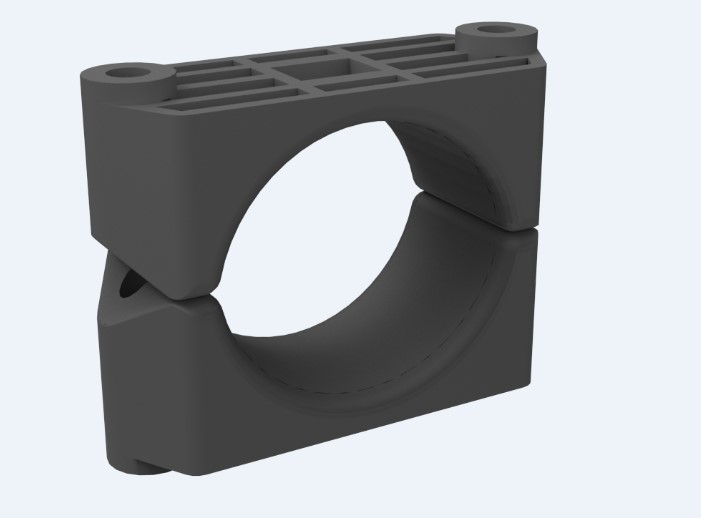

Prysmian Plastic Two Bolt Cable Cleat (Afumex LSOH)
The plastic two bolt cleat is the best choice for larger cable diameters. Both sunlight and weather resistant the two bolt cleat is resilient to corrosive environments such as oils and most chemicals.
Data Sheets

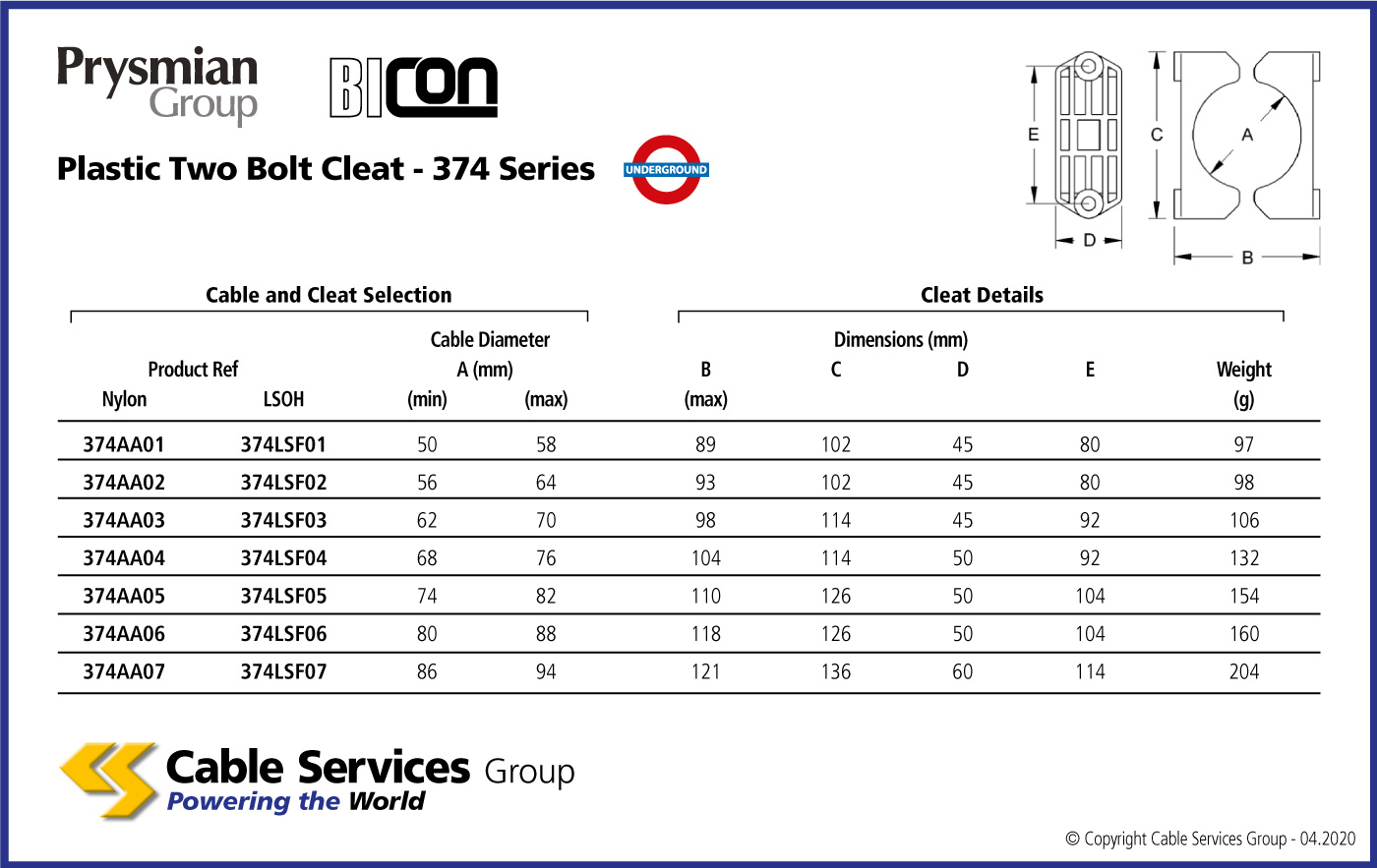

| Reference | Name | |
|---|---|---|
| 374LSF01 | 50 - 58mm cable sizing | |
| 374LSF02 | 56 - 64mm cable sizing | |
| 374LSF03 | 62 - 70mm cable sizing | |
| 374LSF04 | 68 - 76mm cable sizing | |
| 374LSF05 | 74 - 82mm cable sizing | |
| 374LSF06 | 80 - 88mm cable sizing | |
| 374LSF07 | 86 - 94mm cable sizing |
