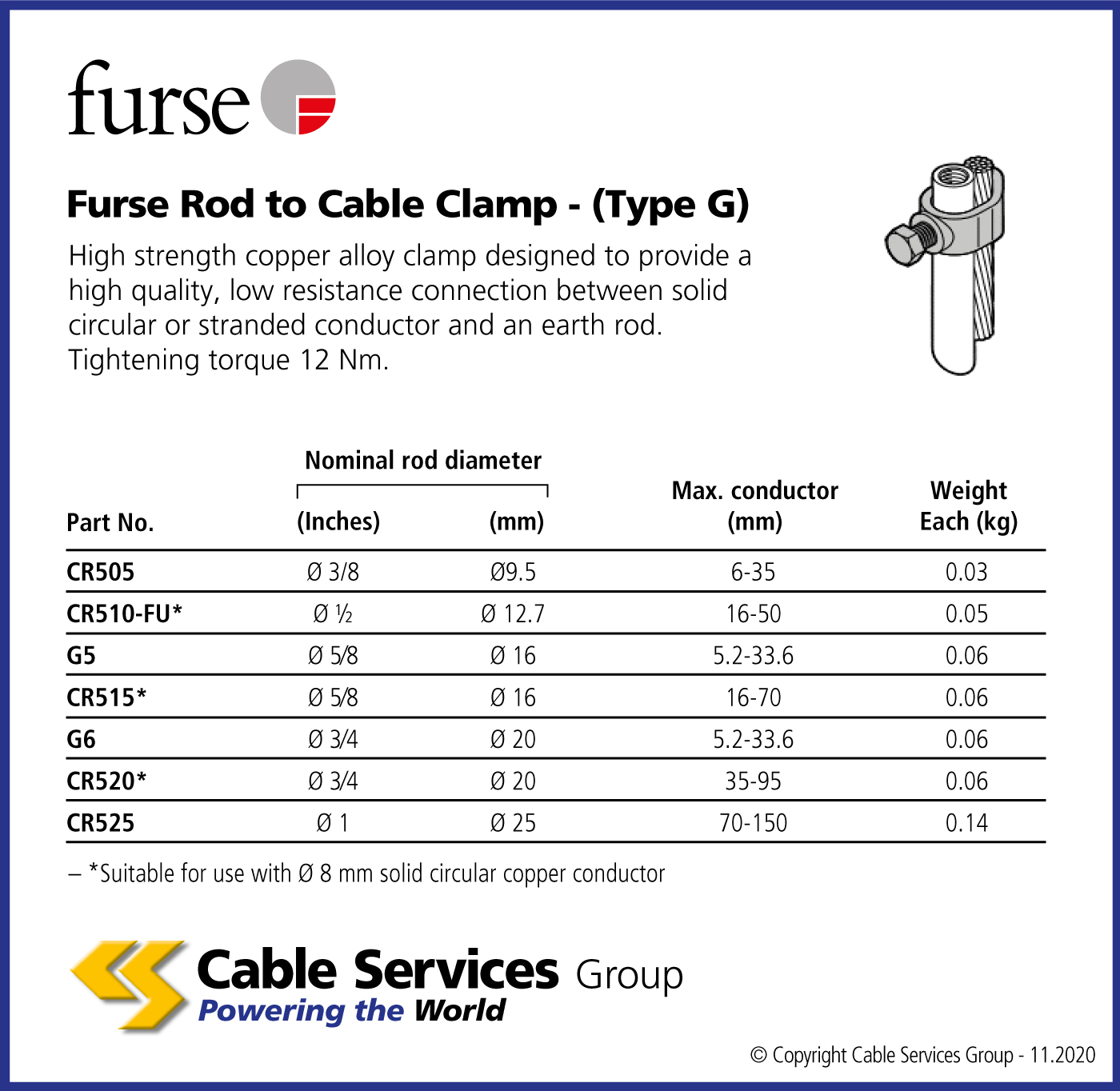

Selection Table

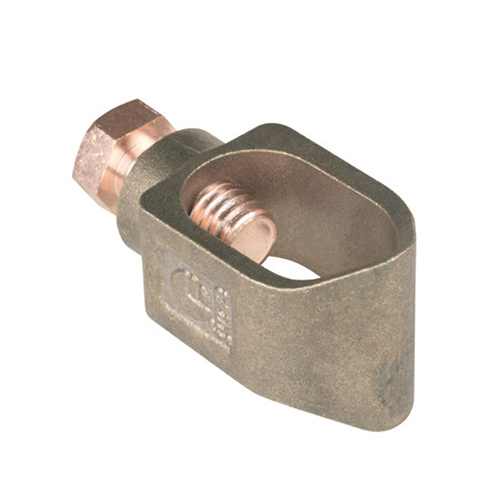

Furse Rod to Cable Clamp (TypeG)
High strength copper alloy clamp designed to provide a high quality, low resistance connection between solid circular or stranded conductor and an earth rod. Tightening torque 12 Nm
Data Sheets
| Reference | Name | |
|---|---|---|
| CR515* | 16-70mm size | |
| G6 | 5.2-33.6mm size | |
| CR520* | 35-95mm size | |
| CR525 | 70-150mm size | |
| CR505 | 6-35mm size | |
| CR510-FU* | 16-50mm size | |
| G5 | 5.2-33.6mm size |
