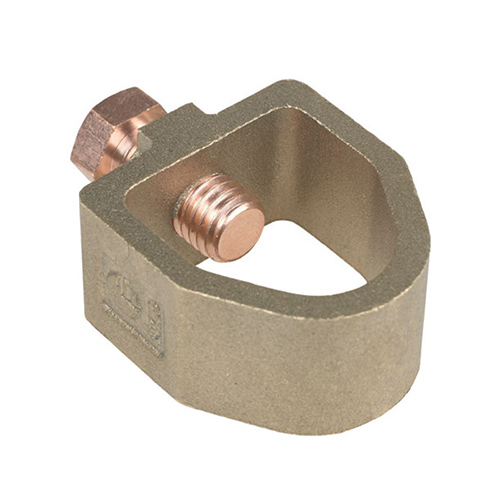

Furse Rod to Tape Earth Rod Clamp (Type A)

Designed for connection of flat tape conductor to an earth rod. Corrosion resistance, conductivity and mechanical strength are essential considerations in clamp design to ensure an earthing system remains operative for many years. All Furse earth rod clamps have high strength copper alloy bodies and screws e.g. aluminium bronze, phosphor bronze etc., commercial brass is not used. Tightening torque 15 Nm

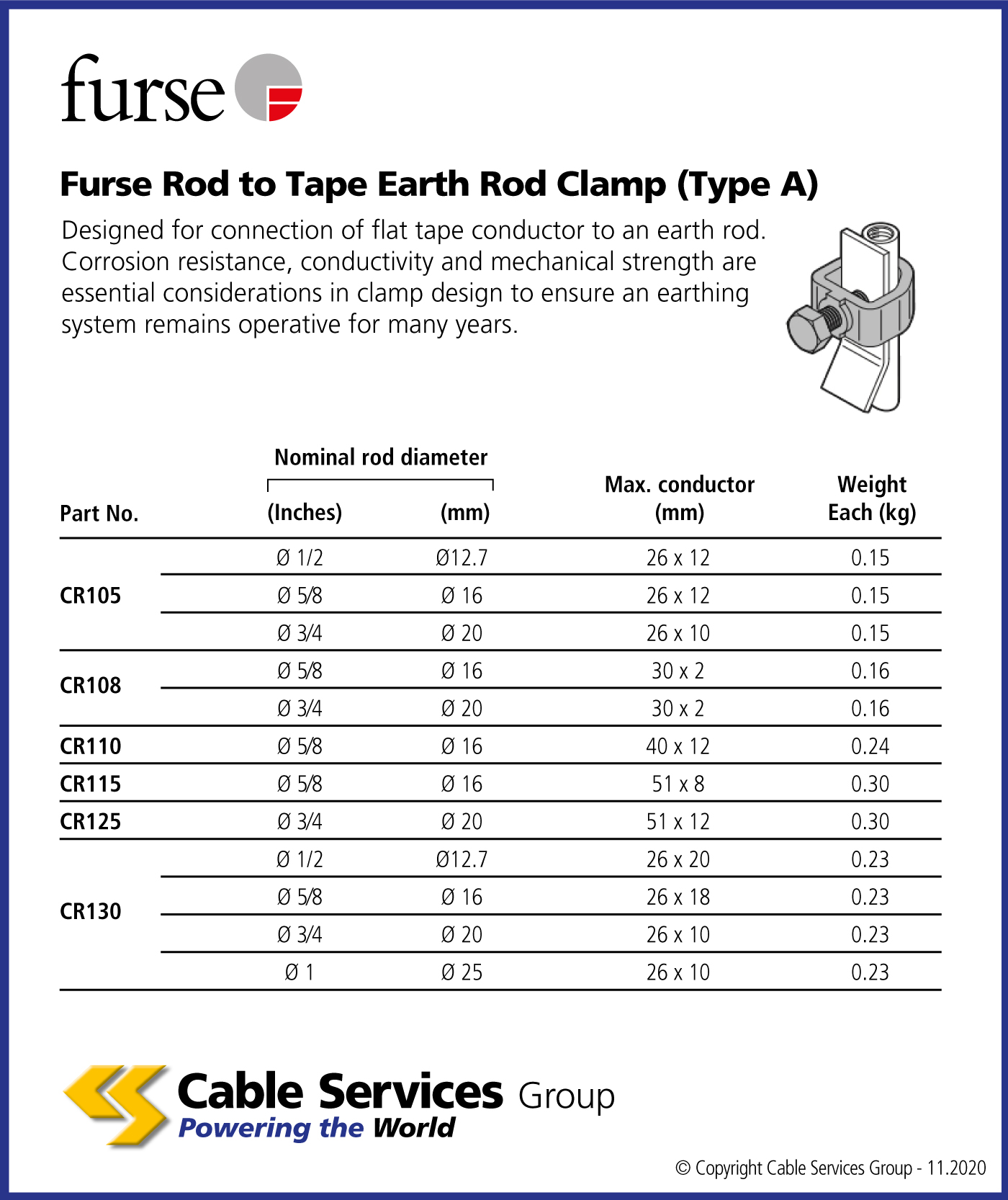

Selection Table

Data Sheets

Download Data Sheet

Reference Name
CR105 26x12mm size
CR108 30x2mm size
CR110 40x12mm size
CR115 51x8mm size
CR125 51x12mm size
CR130 26x20mm size
