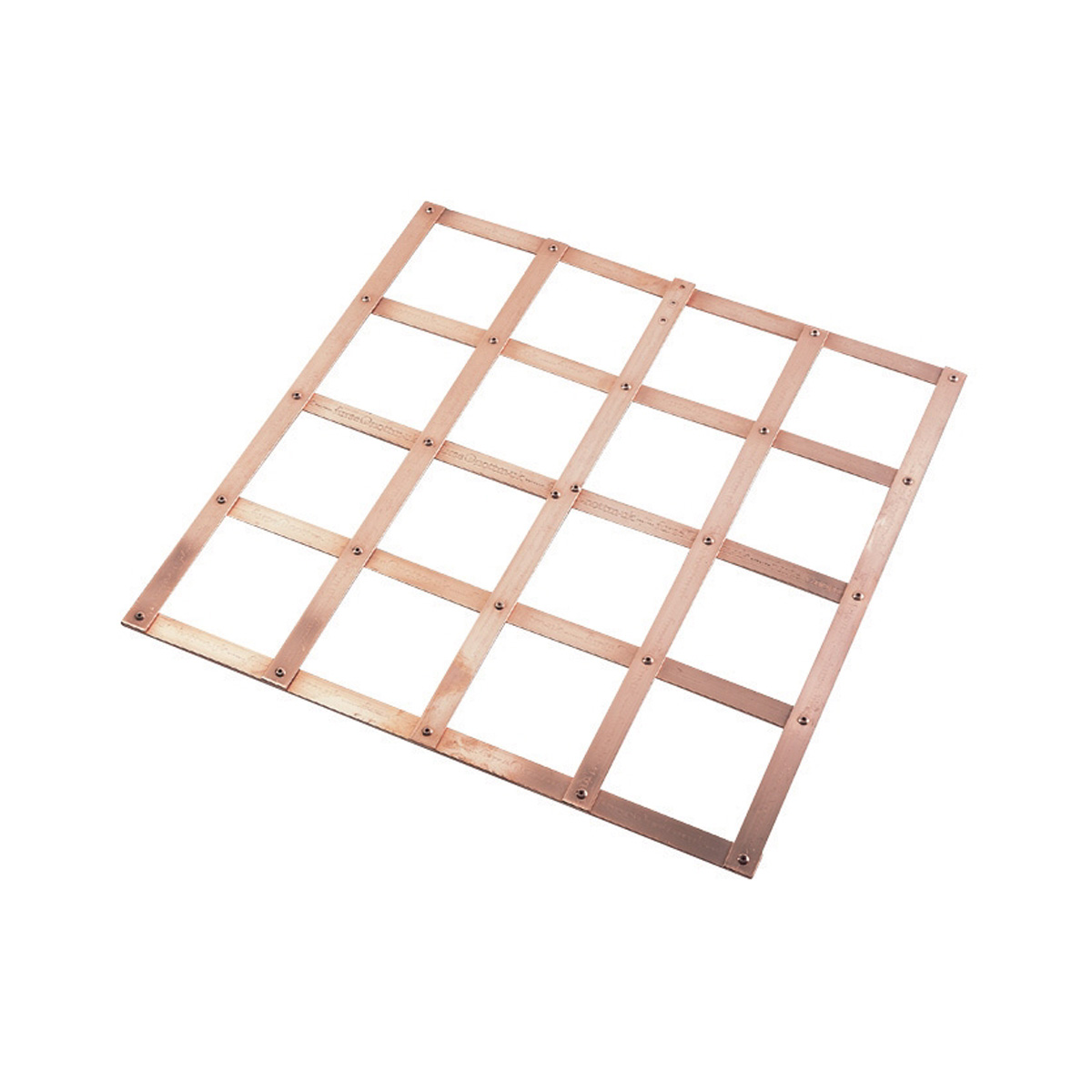

Furse Lattice Earth Mats

The Earth Mat – Lattice Copper is an essential component in earthing and grounding systems, designed to protect equipment and personnel from electrical hazards by facilitating the efficient dissipation of fault currents and potential electrical discharges into the ground to minimise the danger of exposure to high step and touch voltages to operators in situations such as High Voltage switching.


Key Features:

  • Material: Crafted from high conductivity copper tape, ensuring superior earthing capabilities.
  • Design: Comes in various dimensions, including but not limited to 600mm x 600mm x 3mm and 900mm x 900mm x 3mm, featuring a lattice design that maximises the surface area for enhanced electrical dissipation.
  • Application: Indispensable in areas subject to high voltage, such as telecommunications towers, where step and touch potentials present significant dangers.
  • Installation: Typically employed as electrodes in scenarios where substantial fault currents may occur, offering an economical alternative to solid plates.
  • Compliance: Meets industry standards, guaranteeing reliability and safety in its deployment.


  • Safety: Significantly reduces the risk of high step and touch voltages to operators, especially in high voltage switching environments.
  • Cost-Efficiency: Offers a cost-effective protective earthing solution compared to solid plates, without compromising quality or effectiveness.
  • Durability: Designed for durability, these mats provide a lasting solution to earthing requirements, even in settings with considerable fault currents.


  • Site Specifications: The specific needs of the installation site, including soil resistivity and expected electrical load, should be considered.
  • Professional Installation: For optimal effectiveness and safety, a professional assessment and installation are recommended.

For detailed specifications or to request a quote, consulting with our team is advisable.

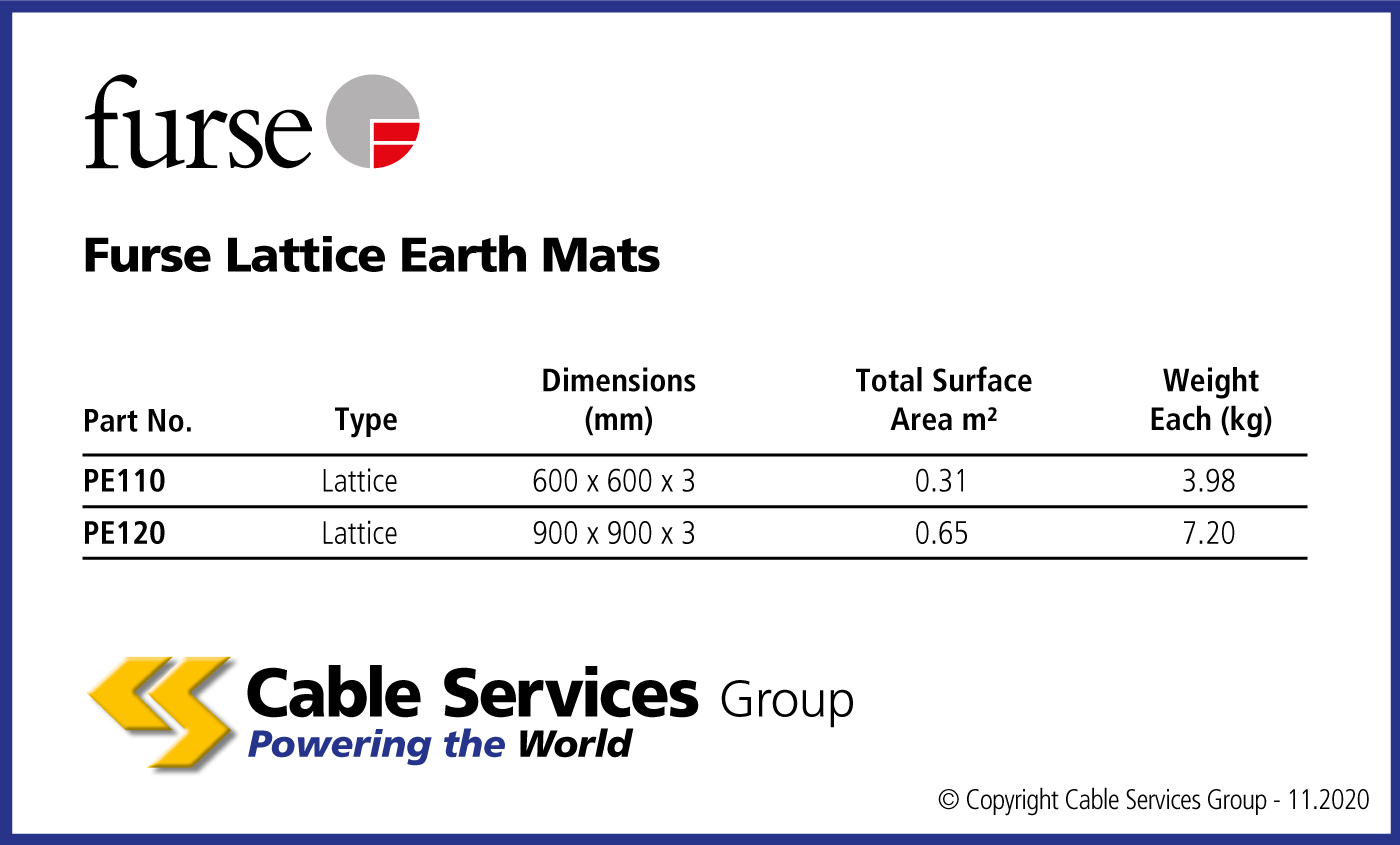

Selection Table

Data Sheets

Download Data Sheet

Reference Name
PE110 600 x 600 x 3mm size
PE120 900 x 900 x 3mm size
