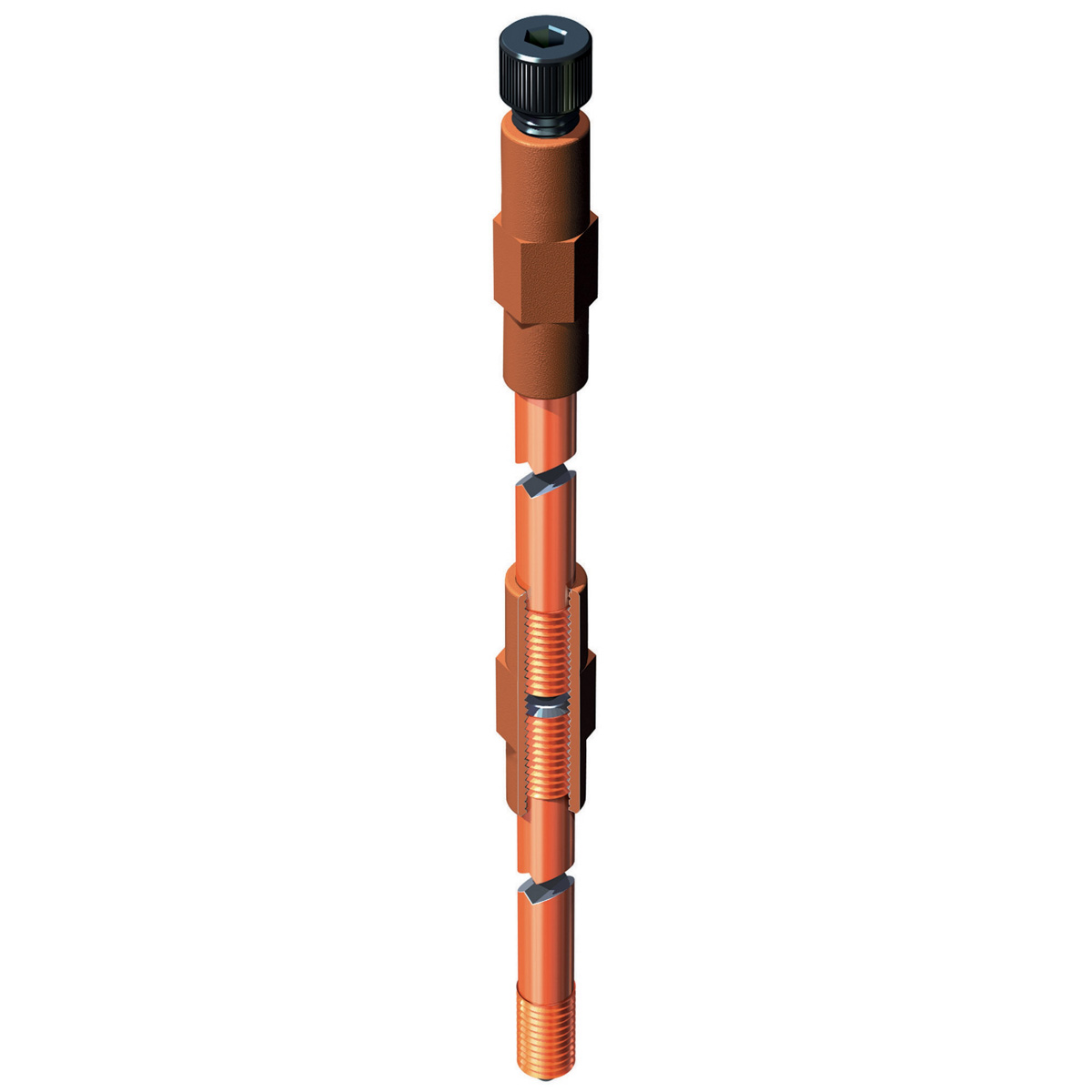

Furse Threaded Copperbond Earth Rod
Furse copperbond earth rods probably offer to the installer, the best and most economical earth rods available. They are made by molecularly bonding 99.9% pure electrolytic copper onto a low carbon steel core. Furse rods are not of the sheathed type. They are highly resistant to corrosion, and because the steel used has a very high tensile strength, they can be driven by power hammers to great depths. The counter-bored couplings are made from high copper content alloy – commercial brass is not used. High tensile low carbon steel core with minimum 250 microns of copper
Data Sheets

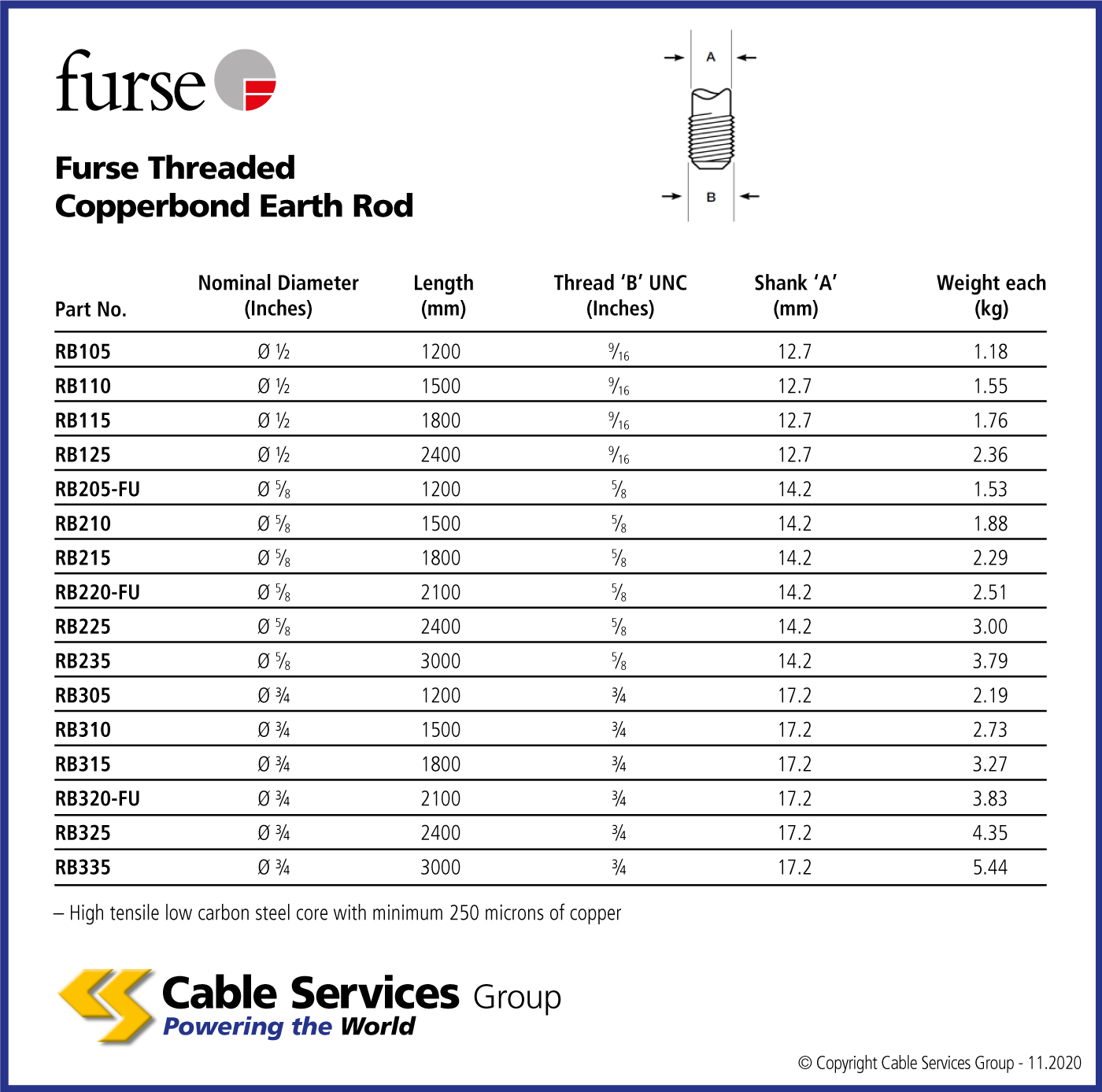

| Reference | Name | |
|---|---|---|
| RB105 | Ø ½inches size, 1200mm fixing type | |
| RB110 | Ø ½inches size, 1500mm fixing type | |
| RB115 | Ø ½inches size, 1800mm fixing type | |
| RB125 | Ø ½inches size, 2400mm fixing type | |
| RB205 | Ø 5⁄8inches size, 1200mm fixing type | |
| RB210 | Ø 5⁄8inches size, 1500mm fixing type | |
| RB215 | Ø 5⁄8inches size, 1800mm fixing type | |
| RB220-FU | Ø 5⁄8inches size, 2100mm fixing type | |
| RB225 | Ø 5⁄8inches size, 2400mm fixing type | |
| RB235 | Ø 5⁄8inches size, 3000mm fixing type | |
| RB305 | Ø ¾inches size, 1200mm fixing type | |
| RB310 | Ø ¾inches size, 1500mm fixing type | |
| RB315 | Ø ¾inches size, 1800mm fixing type | |
| RB320-FU | Ø ¾inches size, 2100mm fixing type | |
| RB325 | Ø ¾inches size, 2400mm fixing type | |
| RB335 | Ø ¾inches size, 3000mm fixing type |
