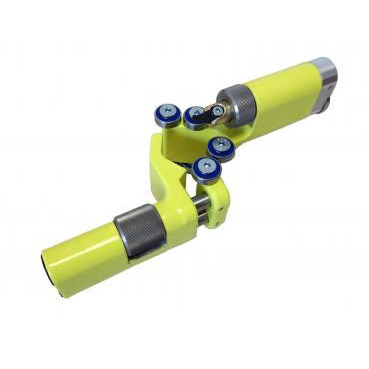

GBZ GB-M20 Cable Sheath Stripper

Easy and safe cutting and removing of outer jacket and insulation. Just one tool but with two functions. This tool cuts outer jackets from diameter 15 up to 55 mm (an additional plastic insert GB-M20-S9 is required for diameter smaller than 22 mm) and the XLPE insulation up to a thickness of 8 – 10 mm. The automatic feed (step “1” and “2”) and the “O” position, for a radial cutting, guarantees a quick, safe and exact cutting of the cable jacket and insulation. To protect the prepared insulation screen and for cable diameter smaller than Ø 25 mm, use the plastic insert GB-M20-S9. Due to the placement and design of the cutting blade, the sheath will be lifted at the cutting point so that there is no danger of damaging the components below the sheath. A cutting depth of approx. 80 % will be sufficient. For further details you may check the manual instruction of the tool.

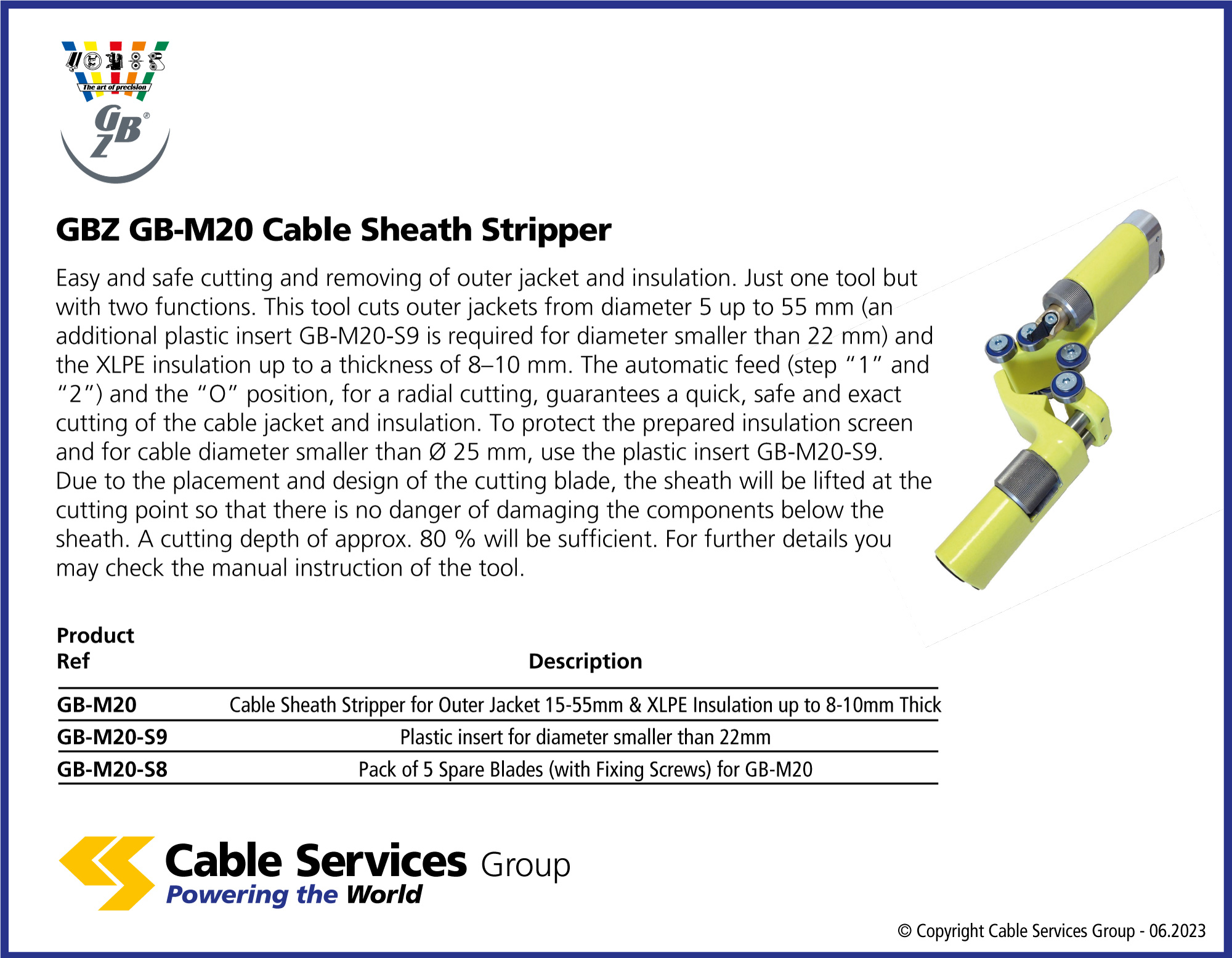

Selection Table

Data Sheets

View directly from manufacturer

Reference Name
GB-M20 Cable Sheath Stripper for Outer Jacket 15-55mm & XLPE Insulation up to 8-10mm Thick size
GB-M20-S9 Plastic insert for diameter smaller than 22mm size
GB-M20-S8 Pack of 5 Spare Blades (with Fixing Screws) for GB-M20 size
