Technical Data

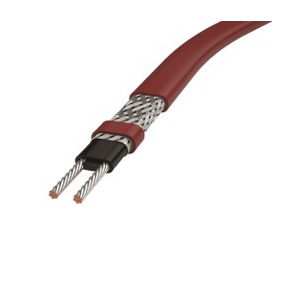

nVent Raychem HTV Self-Regulating Heating Cable
nVent RAYCHEM HTV self-regulating heating cable is designed for freeze protection or process temperature maintenance of pipes and vessels up to 205°C continuously, with a maximum exposure temperature of 260°C. The HTV cable has a solid construction with a high power retention (HPR) heating core and pressure extruded electrical insulation. It is then integrated with a robust metallic braid and a chemically resistant fluoropolymer outer jacket.

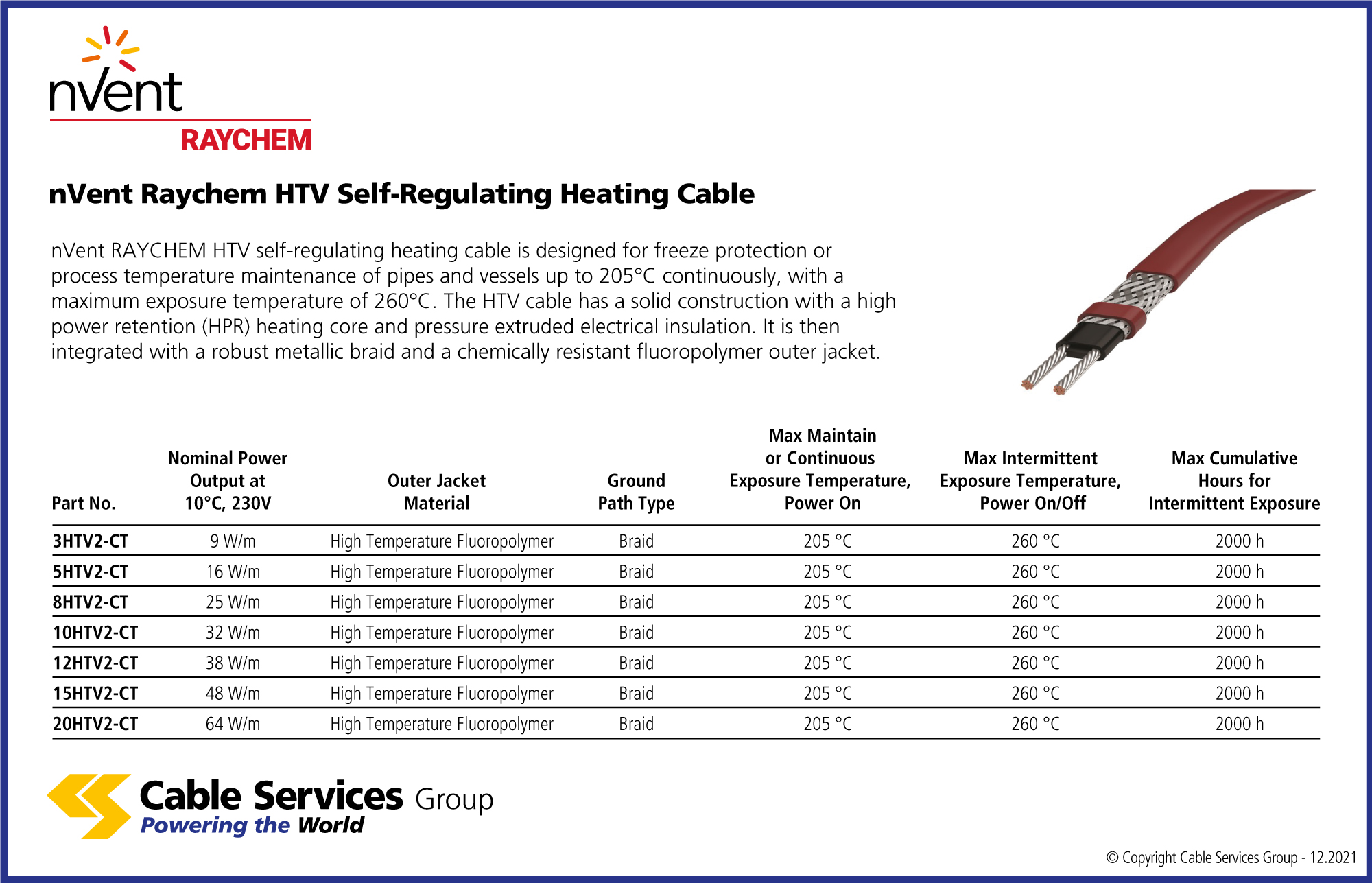

Data Sheets
| Reference | Name | |
|---|---|---|
| 3HTV2-CT | 9 W/m description, High Temperature Fluoropolymer size | |
| 5HTV2-CT | 16 W/m description, High Temperature Fluoropolymer size | |
| 8HTV2-CT | 25 W/m description, High Temperature Fluoropolymer size | |
| 10HTV2-CT | 32 W/m description, High Temperature Fluoropolymer size | |
| 12HTV2-CT | 38 W/m description, High Temperature Fluoropolymer size | |
| 15HTV2-CT | 48 W/m description, High Temperature Fluoropolymer size | |
| 20HTV2-CT | 64 W/m description, High Temperature Fluoropolymer size |
