Technical Data

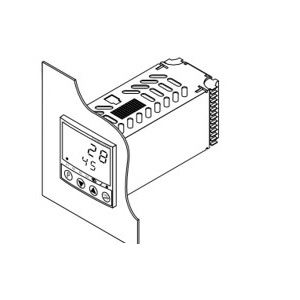

nVent Raychem TCONTROL-CONT-03 Electronic Controller
nVent RAYCHEM TCONTROL-CONT-03 is a family of single circuit electronic temperature controllers for non-hazardous areas. Most often this controller is installed in panels. Various versions of this controller are available, see datasheet for more details. Each can be used in combination with any PT100 temperature sensor or standard thermocouples. The temperature range is from -200 to 2400 °C, depending on the type of temperature sensor used.
Data Sheets

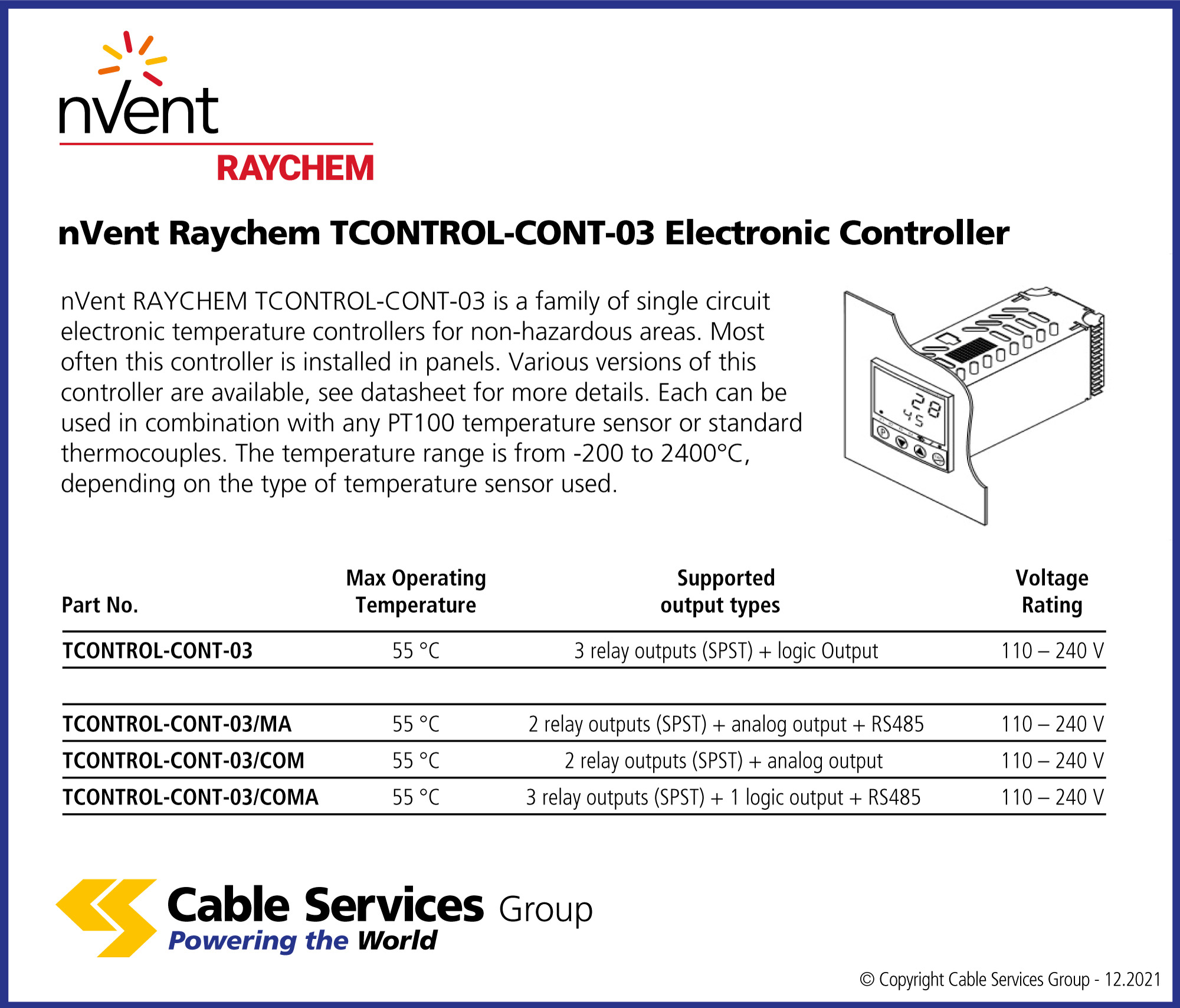

| Reference | Name | |
|---|---|---|
| TCONTROL-CONT-03 | 55 °C description, 3 relay outputs (SPST) + logic Output size | |
| TCONTROL-CONT-03/MA | 55 °C description, 2 relay outputs (SPST) + analog output + RS485 size | |
| TCONTROL-CONT-03/COM | 55 °C description, 2 relay outputs (SPST) + analog output size | |
| TCONTROL-CONT-03/COMA | 55 °C description, 3 relay outputs (SPST) + 1 logic output + RS485 size |
