Technical Data

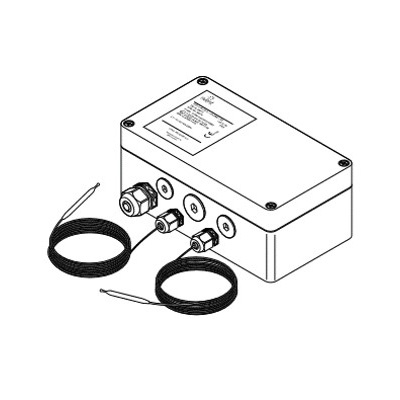

nVent Raychem TM20EX Mechanical Thermostat
nVent RAYCHEM T-M-20-S/+x+y/EX is a mechanical surface sensing thermostat providing temperature control and temperature limit in hazardous areas. The safety limiter prevents the heating system from exceeding a preset maximum temperature should the control function fail to operate or an unsafe process temperature occur. Available in ranges: +0 °C +120 °C, +0 °C +200 °C and +50 °C +300 °C. The maximum rated voltage is 400 VAC. The switching current capacity is 16 A.
Data Sheets
| Reference | Name | |
|---|---|---|
| T-M-20-S/+0+120C/EX | 0 – 120 °C description | |
| T-M-20-S/+0+200C/EX | 0 – 200 °C description | |
| T-M-20-S/+50+300C/EX | 50 – 300 °C description |
