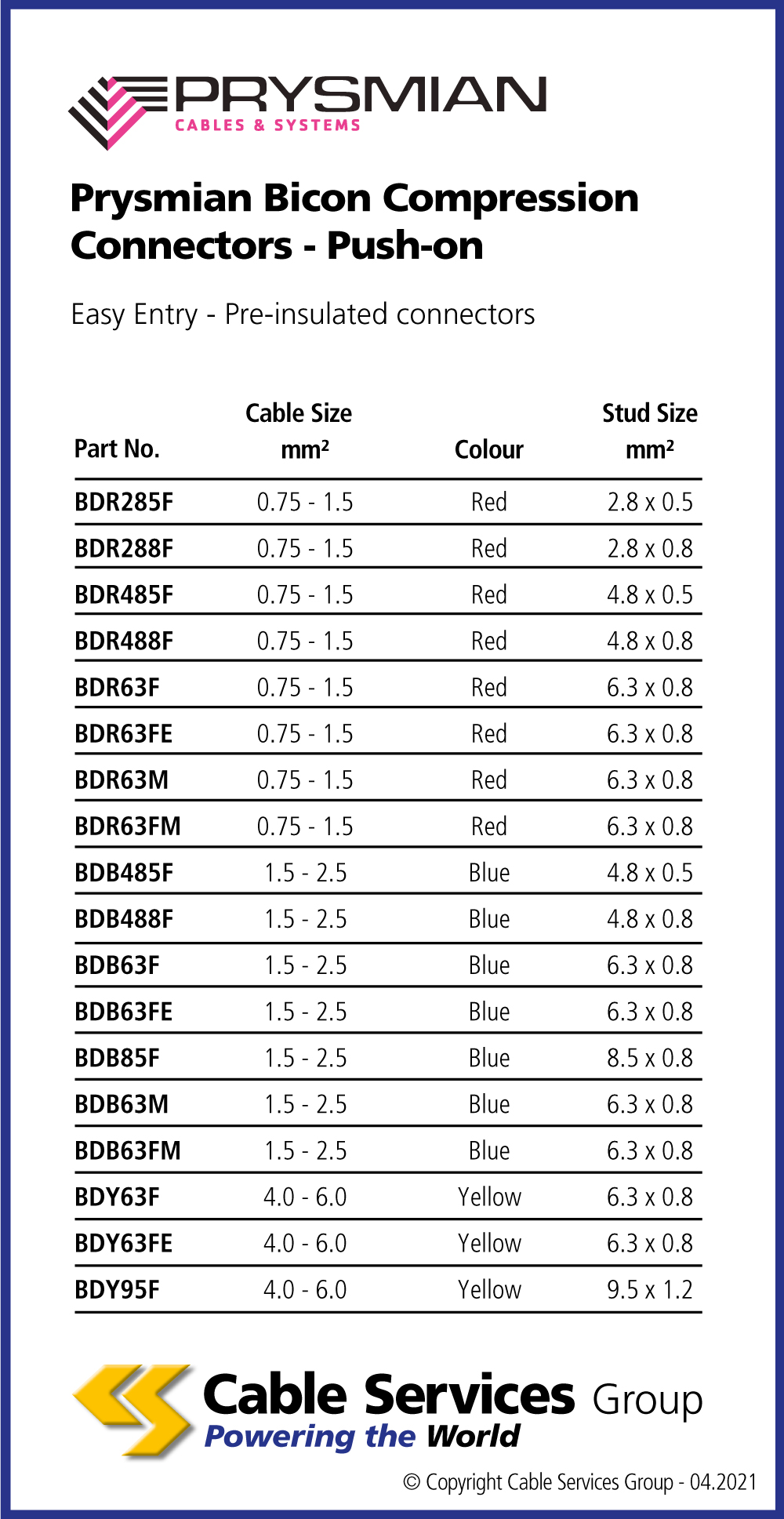

Selection Table

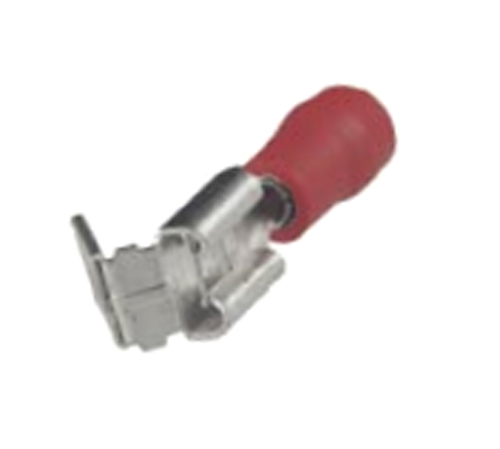

Prysmian Bicon Compression Connectors – Push-on
Easy Entry – Pre-insulated connectors
Data Sheets
| Reference | Name | |
|---|---|---|
| BDR285F | 0.75 - 1.5mm2 cable size conductor size, 2.8 x 0.5mm2 fixing size | |
| BDR288F | 0.75 - 1.5mm2 cable size conductor size, 2.8 x 0.8mm2 fixing size | |
| BDR485F | 0.75 - 1.5mm2 cable size conductor size, 4.8 x 0.5mm2 fixing size | |
| BDR488F | 0.75 - 1.5mm2 cable size conductor size, 4.8 x 0.8mm2 fixing size | |
| BDR63F | 0.75 - 1.5mm2 cable size conductor size, 6.3 x 0.8amm2 fixing size | |
| BDR63FE | 0.75 - 1.5mm2 cable size conductor size, 6.3 x 0.8bmm2 fixing size | |
| BDR63M | 0.75 - 1.5mm2 cable size conductor size, 6.3 x 0.8cmm2 fixing size | |
| BDR63FM | 0.75 - 1.5mm2 cable size conductor size, 6.3 x 0.8dmm2 fixing size | |
| BDB485F | 1.5 - 2.5mm2 cable size conductor size, 4.8 x 0.5mm2 fixing size | |
| BDB488F | 1.5 - 2.5mm2 cable size conductor size, 4.8 x 0.8mm2 fixing size | |
| BDB63F | 1.5 - 2.5mm2 cable size conductor size, 6.3 x 0.8amm2 fixing size | |
| BDB63FE | 1.5 - 2.5mm2 cable size conductor size, 6.3 x 0.8bmm2 fixing size | |
| BDB85F | 1.5 - 2.5mm2 cable size conductor size, 8.5 x 0.8mm2 fixing size | |
| BDB63M | 1.5 - 2.5mm2 cable size conductor size, 6.3 x 0.8amm2 fixing size | |
| BDB63FM | 1.5 - 2.5mm2 cable size conductor size, 6.3 x 0.8bmm2 fixing size | |
| BDY63F | 4.0 - 6.0mm2 cable size conductor size, 6.3 x 0.8amm2 fixing size | |
| BDY63FE | 4.0 - 6.0mm2 cable size conductor size, 6.3 x 0.8bmm2 fixing size | |
| BDY95F | 4.0 - 6.0mm2 cable size conductor size, 9.5 x 1.2cmm2 fixing size |
