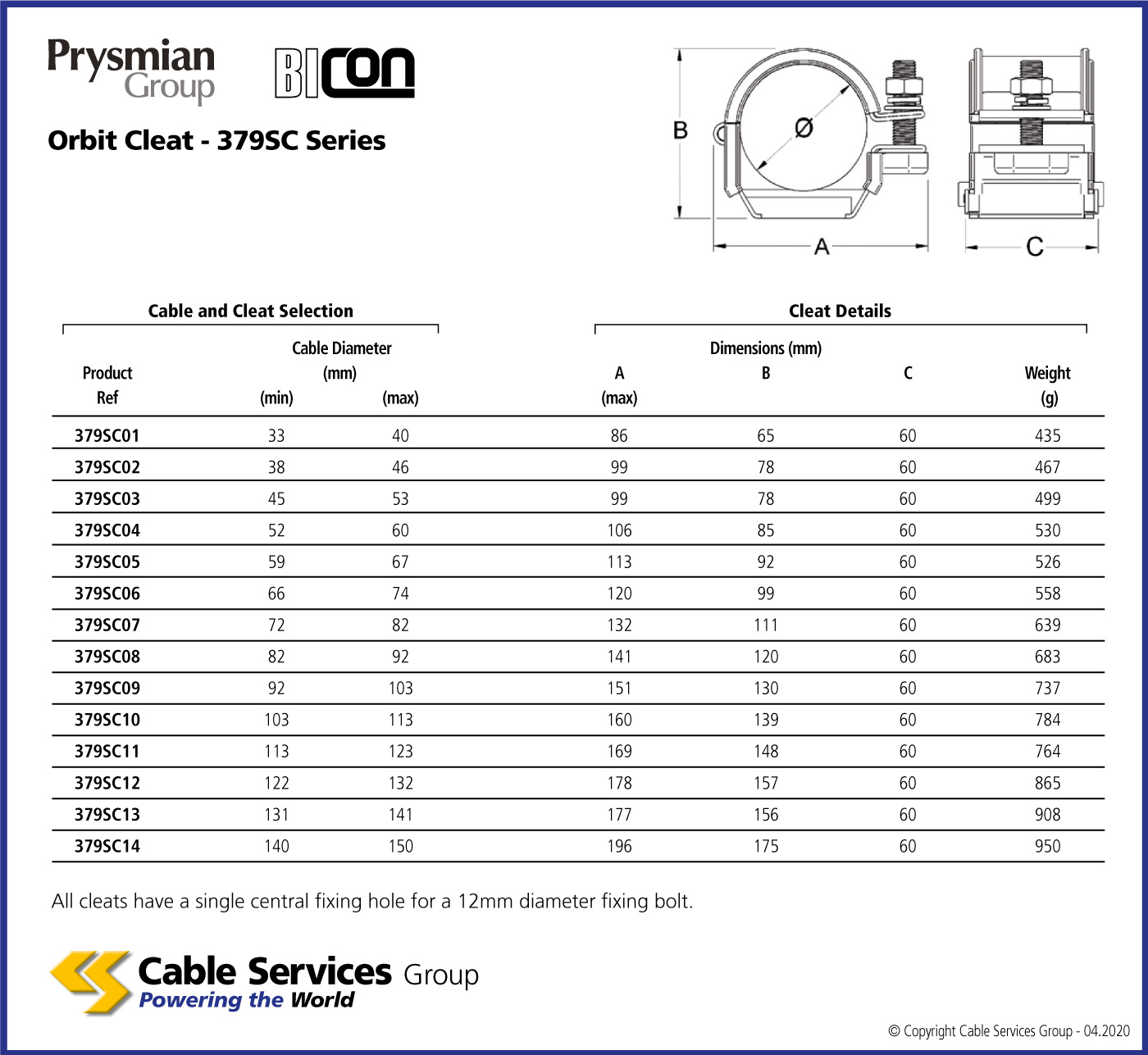

Selection Table

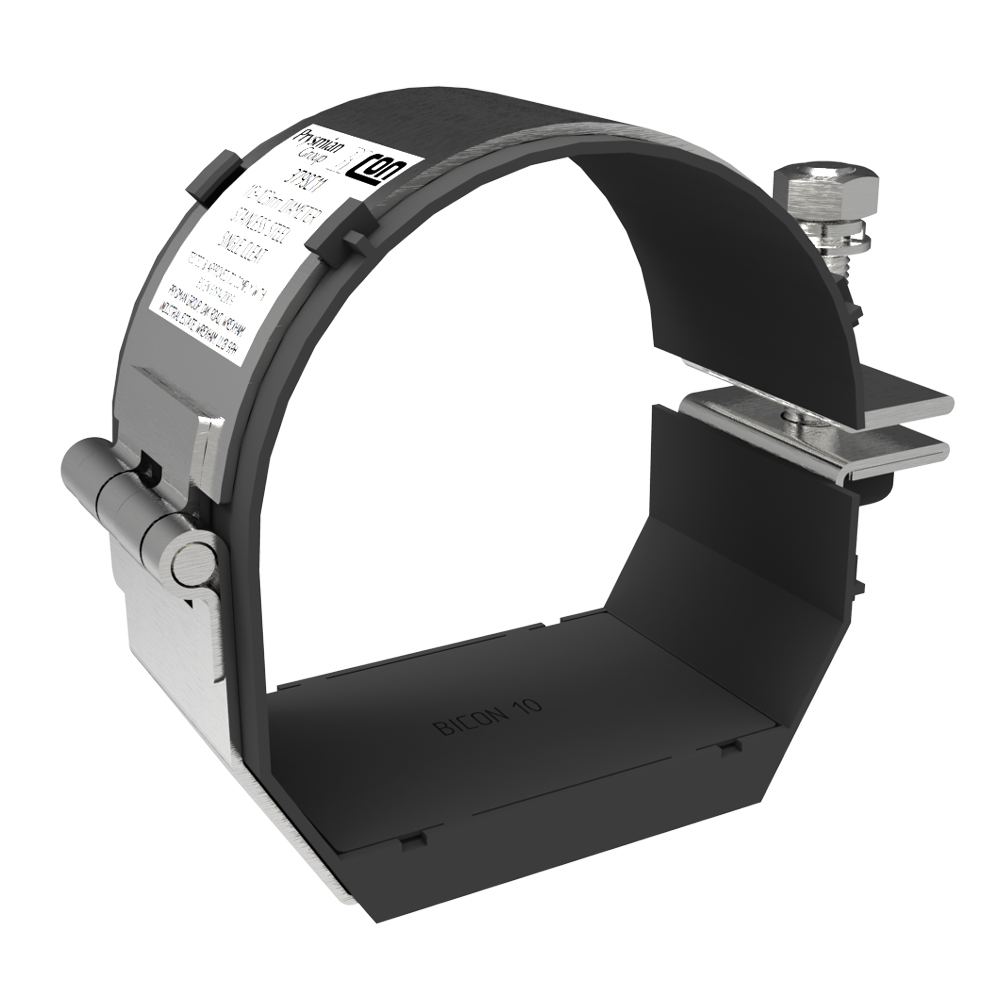

Prysmian Orbit Stainless Steel Cleat
The 379 series should be used when you need the best level of protection in the harshest environments under the highest fault conditions.
Data Sheets
| Reference | Name | |
|---|---|---|
| 379SC01 | 33 - 40mm cable sizing | |
| 379SC02 | 38 - 46mm cable sizing | |
| 379SC03 | 45 - 53mm cable sizing | |
| 379SC04 | 52 - 60mm cable sizing | |
| 379SC05 | 59 - 67mm cable sizing | |
| 379SC06 | 66 - 74mm cable sizing | |
| 379SC07 | 72 - 82mm cable sizing | |
| 379SC08 | 82 - 92mm cable sizing | |
| 379SC09 | 92 - 103mm cable sizing | |
| 379SC10 | 103 - 113mm cable sizing | |
| 379SC11 | 113 - 123mm cable sizing | |
| 379SC12 | 122 - 132mm cable sizing | |
| 379SC13 | 131 - 141mm cable sizing | |
| 379SC14 | 140 - 150mm cable sizing |
