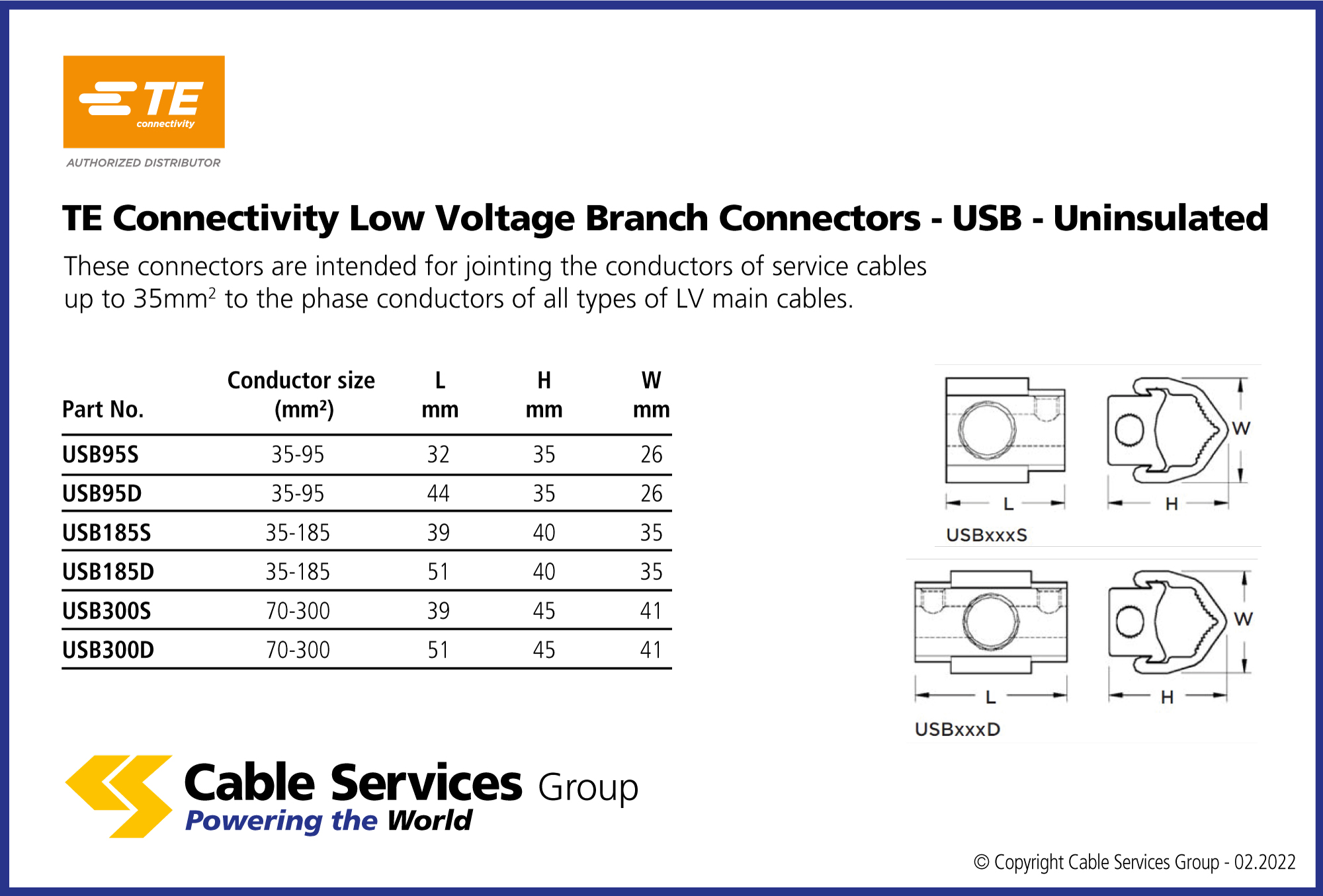

Selection Table

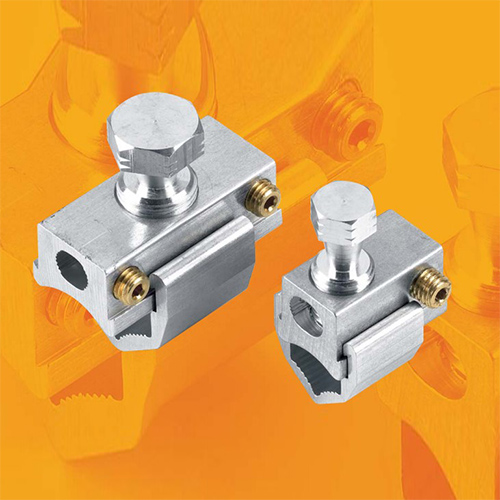

TE Connectivity Low Voltage Branch Connectors – USB – Uninsulated
USB – These connectors are intented for jointing the conductors of service cables up to 35sqmm to the phase conductors of all types of LV mains cables.
Data Sheets
| Reference | Name | |
|---|---|---|
| USB95S | 35 - 95mm2 conductor conductor size, 32mm fixing size | |
| USB95D | 35 - 95mm2 conductor conductor size, 44mm fixing size | |
| USB185S | 35 - 185mm2 conductor conductor size, 39mm fixing size | |
| USB185D | 35 - 185mm2 conductor conductor size, 51mm fixing size | |
| USB300S | 70 - 300mm2 conductor conductor size, 39mm fixing size | |
| USB300D | 70 - 300mm2 conductor conductor size, 51mm fixing size |
