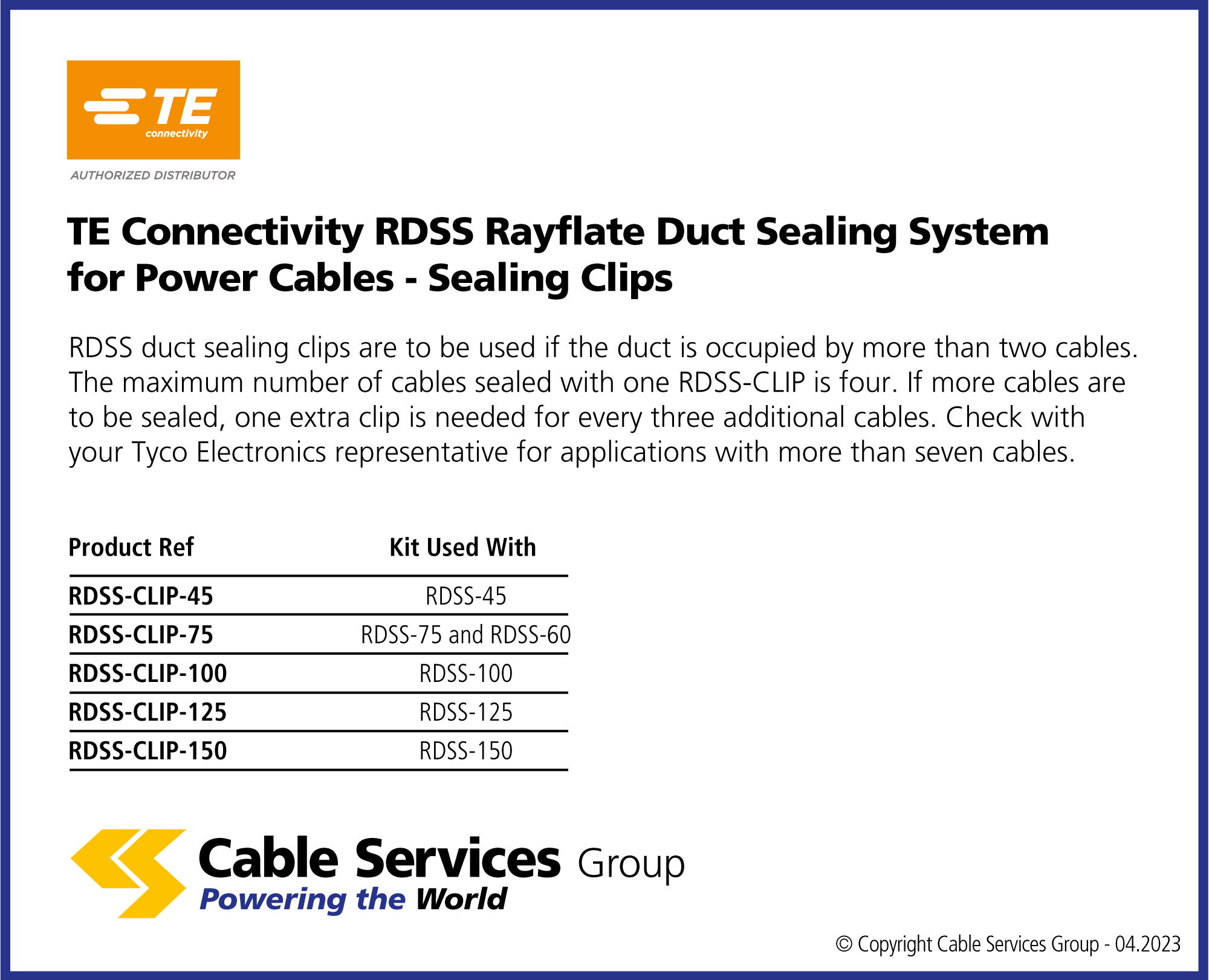

Selection Table

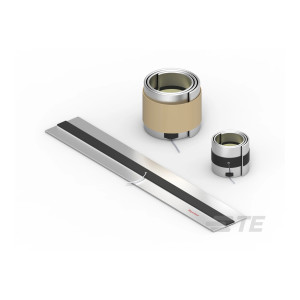

TE Connectivity RDSS Rayflate Duct Sealing System for power cables – Sealing Clips
RDSS duct sealing clips are to be used if the duct is occupied by more than two cables. The maximum number of cables sealed with one RDSS-CLIP is four. If more cables are to be sealed, one extra clip is needed for every three additional cables. Check with your Tyco Electronics representative for applications with more than seven cables.
Data Sheets
| Reference | Name | |
|---|---|---|
| RDSS45CLIP | RDSS-45 diameter size | |
| RDSS75CLIP | RDSS-75 and RDSS-60 diameter size | |
| RDSS100CLIP | RDSS-100 diameter size | |
| RDSS125CLIP | RDSS-125 diameter size | |
| RDSS150CLIP | RDSS-150 diameter size |
