Selection Table

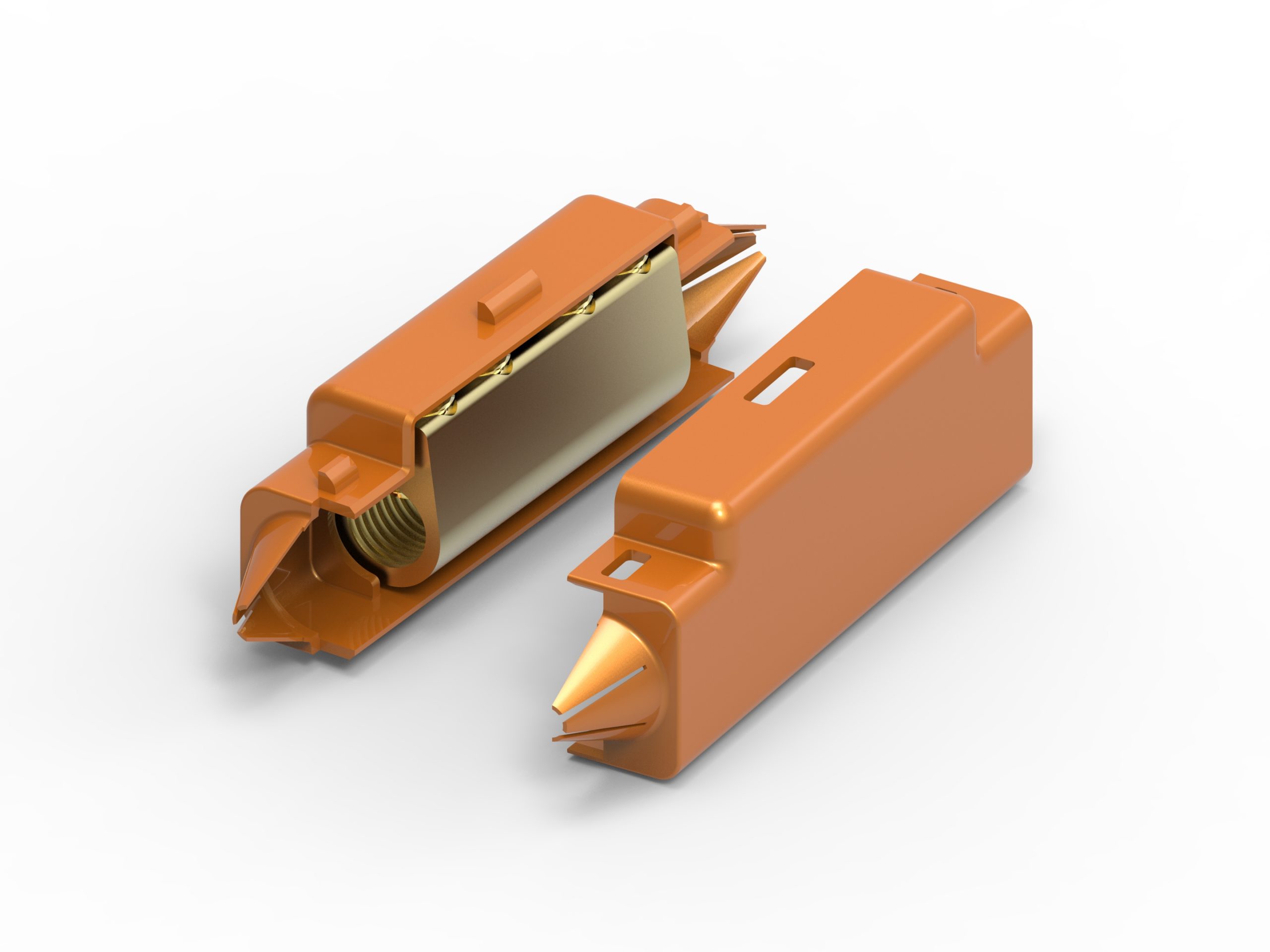

TE Connectivity Underground Brass Tunnel Connectors – Insulated
These connectors are suitable for connecting a wide range of solid circular aluminum or stranded copper.
Data Sheets

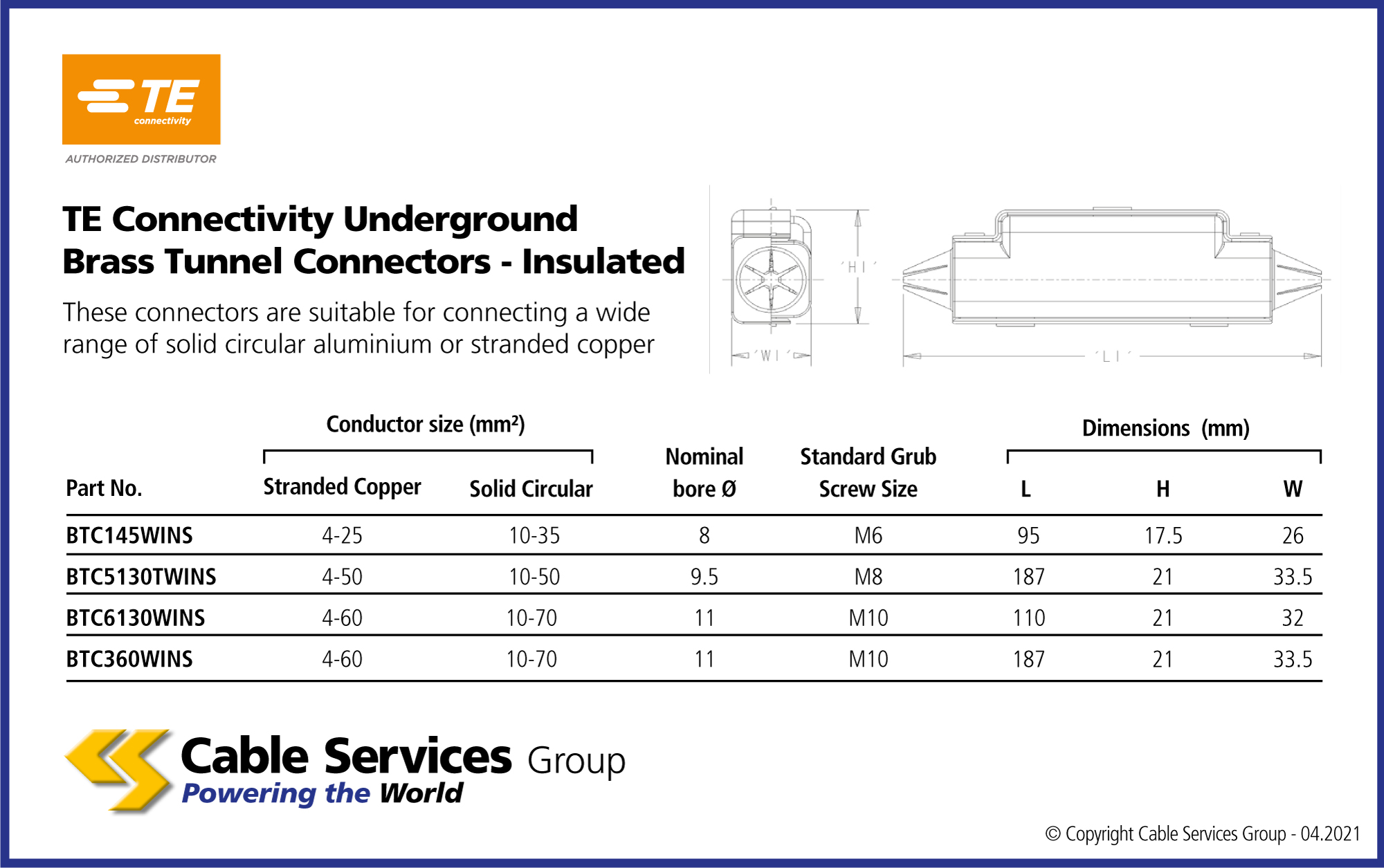

| Reference | Name | |
|---|---|---|
| BTC145WINS | 4 - 25mm2 conductor conductor size, M6stud size fixing size | |
| BTC5130TWINS | 4 - 50mm2 conductor conductor size, M8stud size fixing size | |
| BTC6130WINS | 4 - 60mm2 conductor conductor size, M10 / 110stud size fixing size | |
| BTC360WINS | 4 - 60mm2 conductor conductor size, M10 / 185stud size fixing size |
