Selection Table

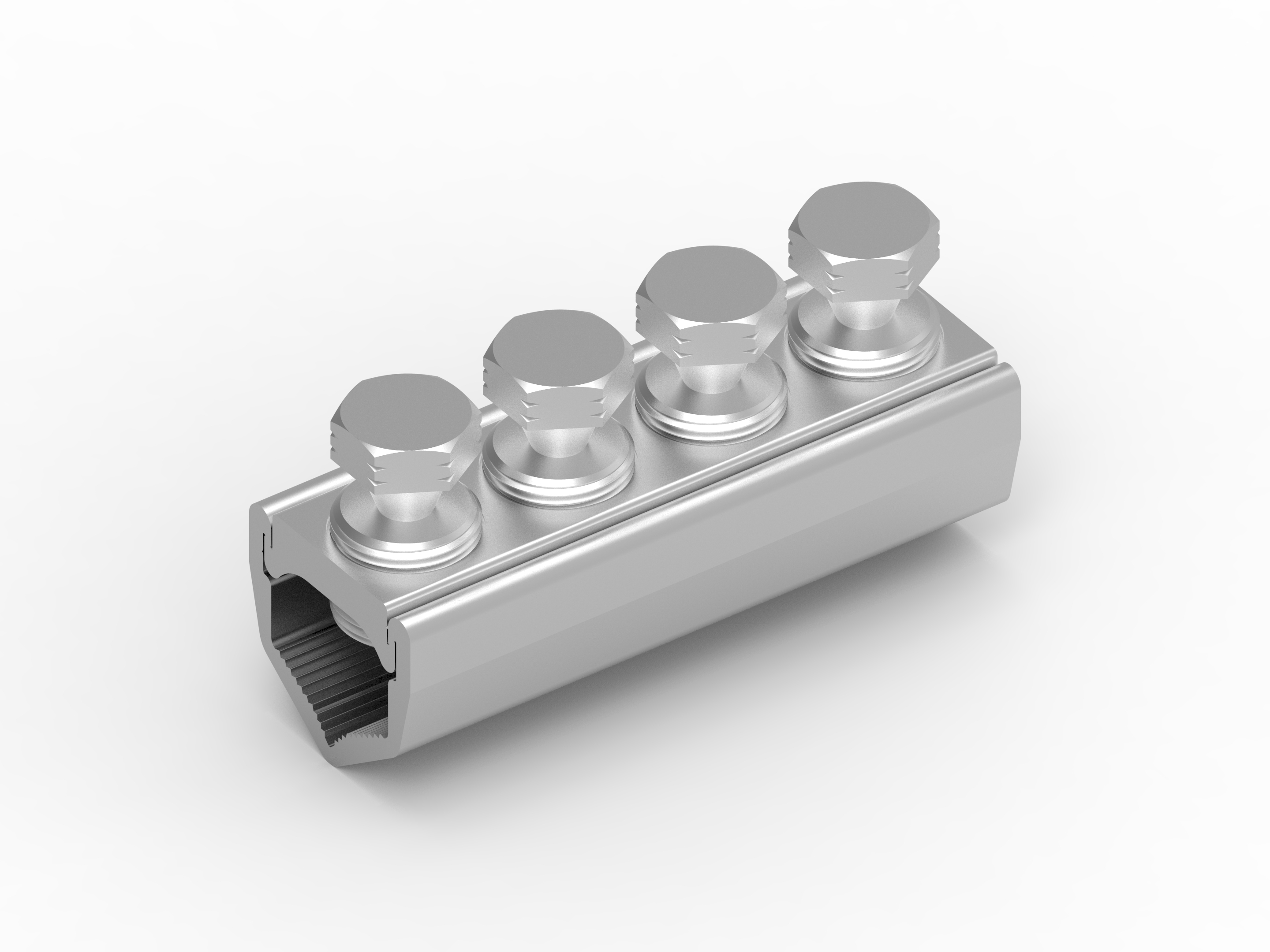

TE Connectivity UST Underground Universal Low Voltage Straight Joint Connector – Non Insulated
These connections are intented for connecting low voltage aluminium conductors and copper conductors (with the addition of simple brass gauze, if required).

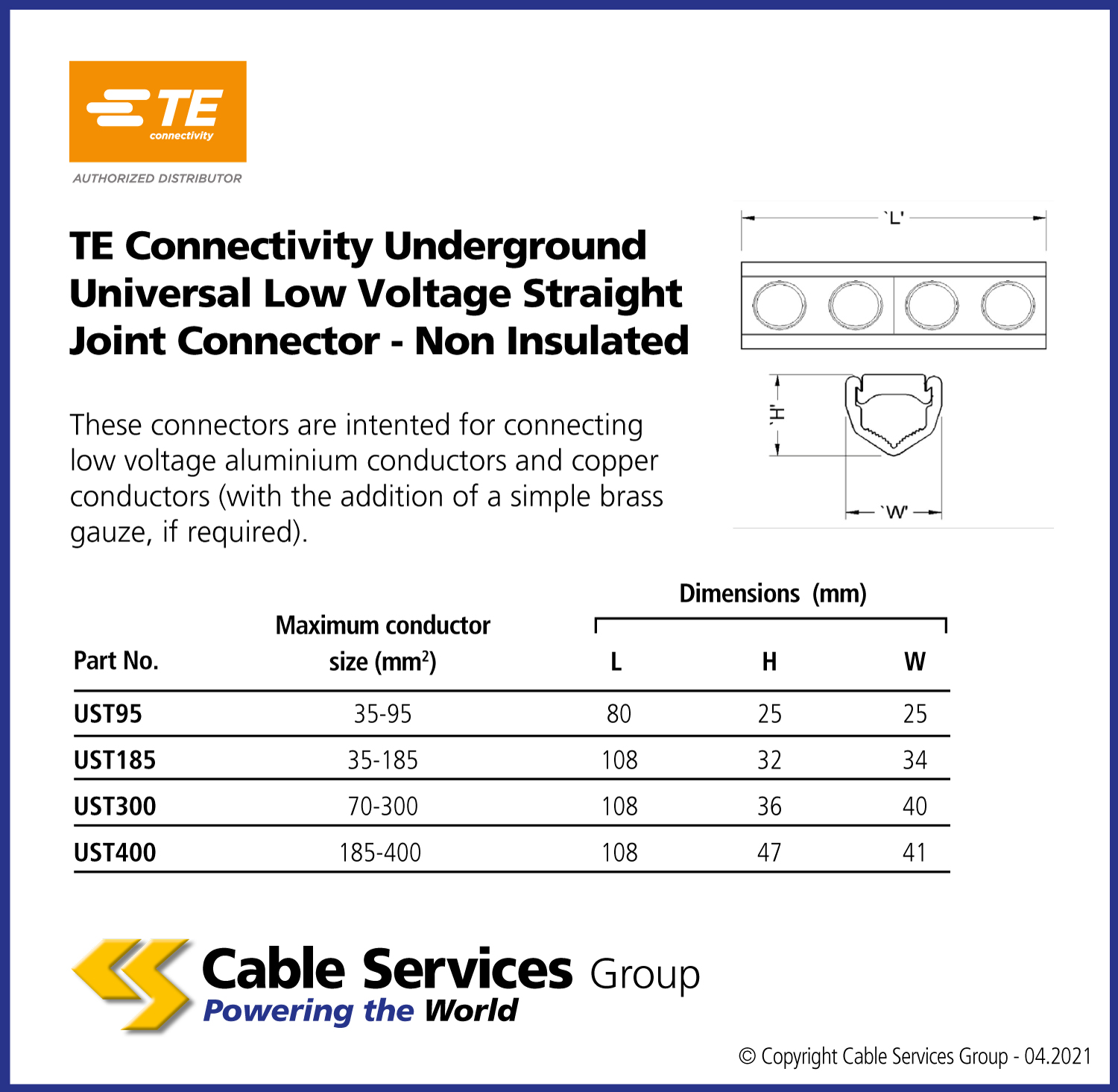

Data Sheet
| Reference | Name | |
|---|---|---|
| UST95 | 35 - 95mm2 conductor conductor size | |
| UST185 | 35 - 185mm2 conductor conductor size | |
| UST300 | 70 - 300mm2 conductor conductor size | |
| UST400 | 185 - 400 mm2 conductor conductor size |
