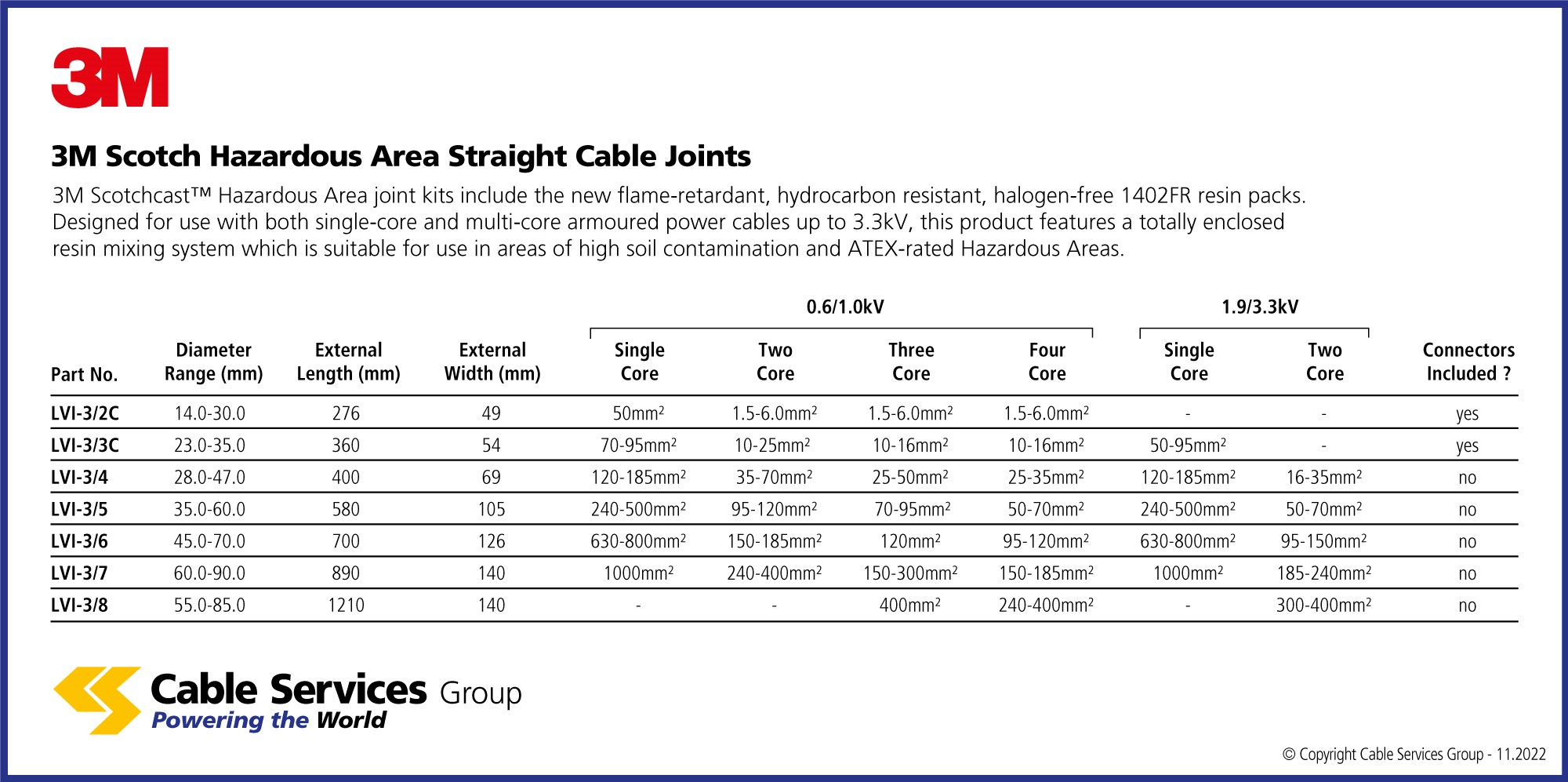

Selection Table
3M Scotch Hazardous Area Straight Cable Joints
3M™ Scotchcast™ Hazardous Area joint kits include the new flame-retardant, hydrocarbon resistant,halogen-free 1402FR resin packs. Designed for use with both single-core and multi-core armoured power cables up to 3.3kV, this product features a totally enclosed resin mixing system which is suitable for use in areas of high soil contamination and ATEX-rated Hazardous Areas.
Data Sheets
| Reference | Name | |
|---|---|---|
| LVI38 | 55.0-100.0mm range | |
| LVI32C | 14.0-30.0mm range | |
| LVI33C | 23.0-35.0mm range | |
| LVI34 | 28.0-47.0mm range | |
| LVI35 | 45.0-60.0mm range | |
| LVI36 | 48.0-70.0mm range | |
| LVI37 | 50.0-90.0mm range |
