3M Straight Joint for Unarmoured Cable

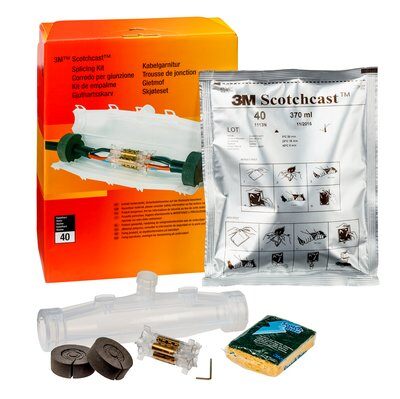

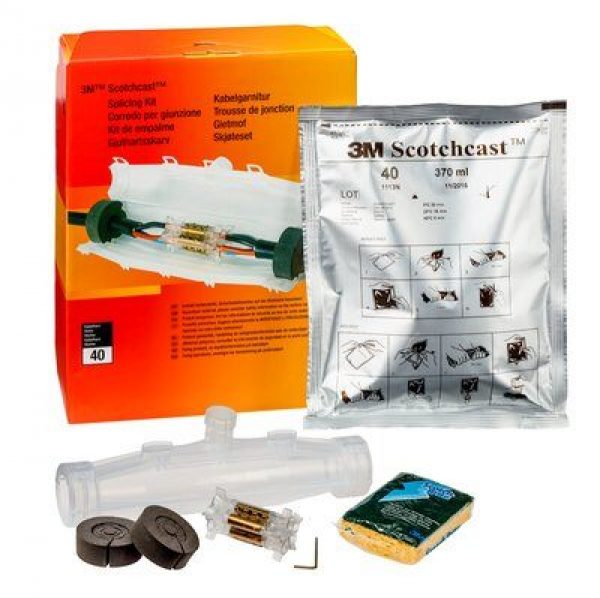

3M™ Scotchcast™ resin joint kits 92-NBA x are designed to be used for 1-core up to 5-core non shielded, polymeric, low voltage energy cables. The application incorporates electrical insulation and mechanical protection of joints with compression or mechanical connectors. They can be used for indoor and outdoor, underground and submerged applications. These joints are also suitable for Single Core Airfield Ground Lighting Cables rated to 6kV with the use of additional components.

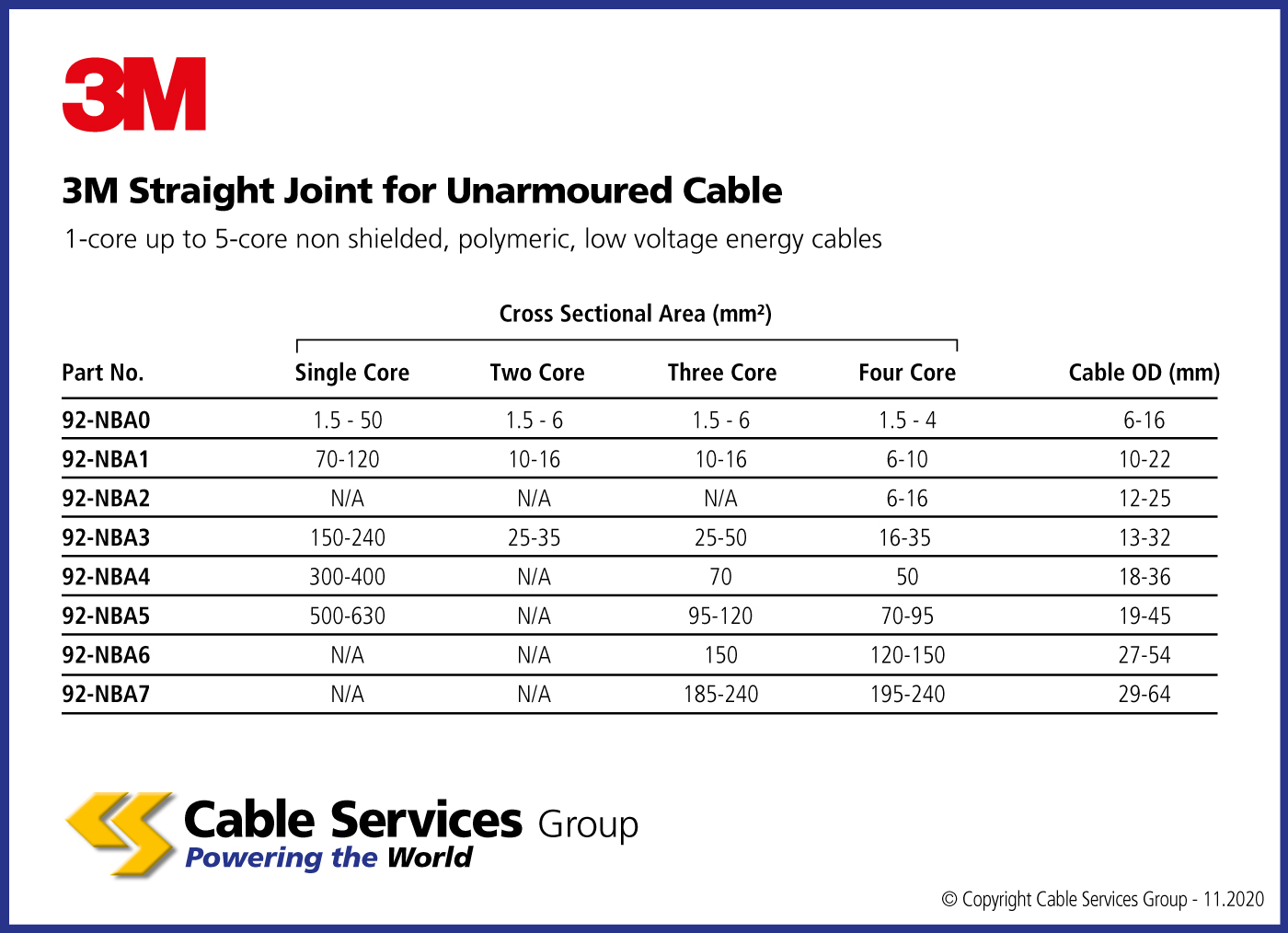

Selection Table

Data Sheets

Download Data Sheet

Reference Name
92-NBA0 6-16mm range
92-NBA1 10-22mm range
92-NBA2 12-25mm range
92-NBA3 13-32mm range
92-NBA4 18-36mm range
92-NBA5 19-45mm range
92-NBA6 27-54mm range
92-NBA7 29-64mm range
