Selection Table
3M Straight Joint for Armoured Cable

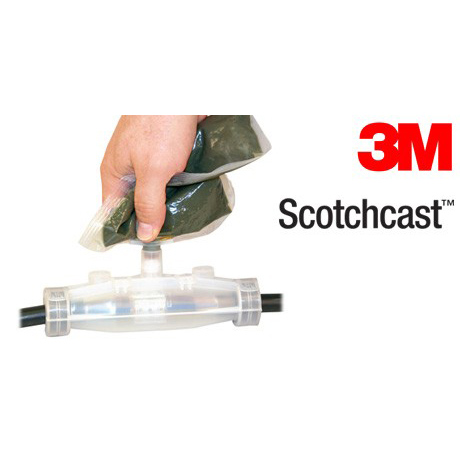

3Mโข Scotchcastโข resin joints designed for use with single-core and multi-core armoured LV cables.This product features a unique hinged mould body and totally enclosed mixing system which significantly reduces the chances of spillage, skin contact and vapour inhalation.

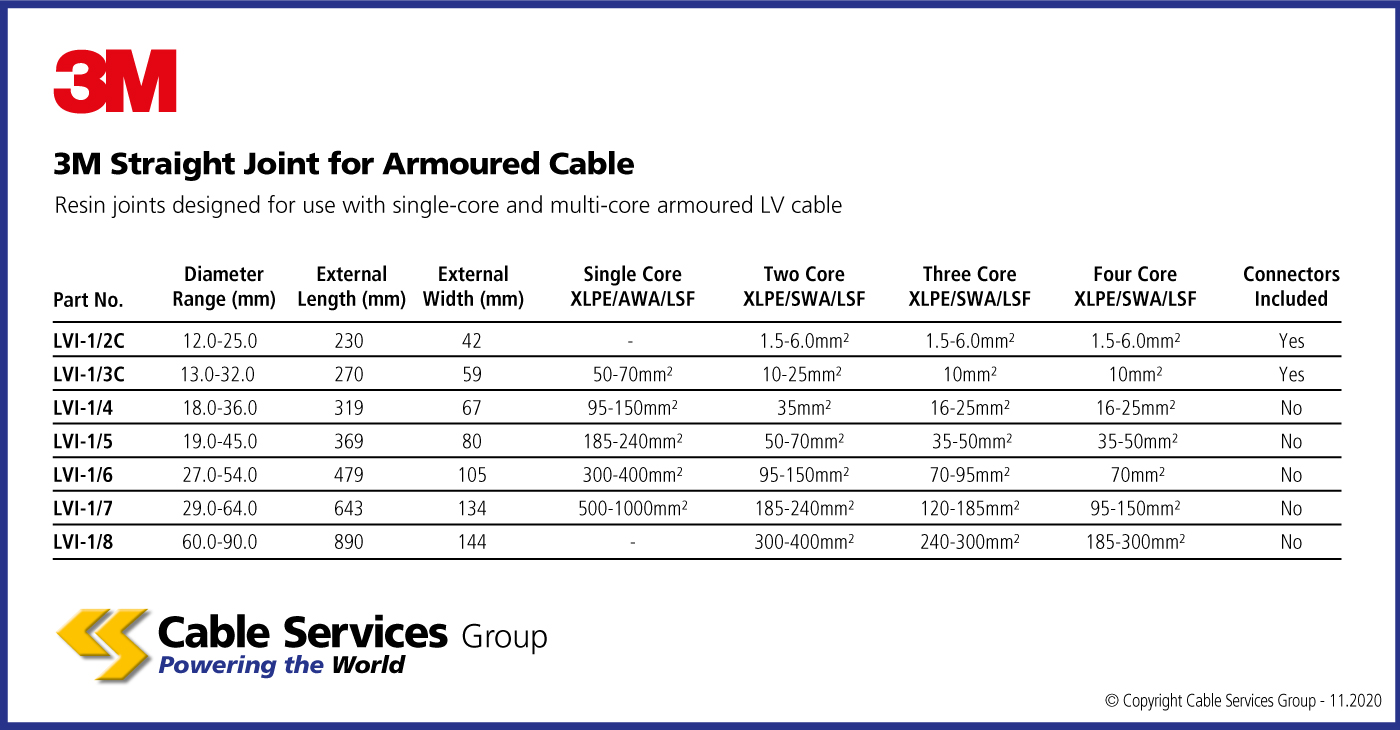

Data Sheets
| Reference | Name | |
|---|---|---|
| LVI12C | 12.0-25.0mm range | |
| LVI13C | 13.0-32.0mm range | |
| LVI14 | 18.0-36.0mm range | |
| LVI15 | 19.0-45.0mm range | |
| LVI16 | 27.0-54.0mm range | |
| LVI17 | 29.0-64.0mm range | |
| LVI18 | 60.0-90.0mm range |
