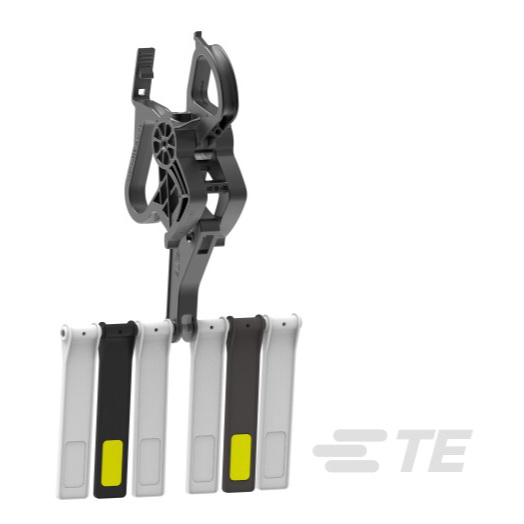

Avian Flight Diverter – Dynamic AVFD-HCR
HIGH CONTRAST, DRONE INSTALLABLE, MULTI-DYNAMIC AVIAN FLIGHT DIVERTER
TE Connectivity (TE) Avian Flight Diverters High Contrast Reflective AVFD-HCR are designed to increase visibility of overhead lines, helping birds detect and avoid potential collisions.
By making lines more noticeable, large birds such as geese and swans have additional time to change direction, reducing the risk of injury and infrastructure damage.
KEY FEATURES
- Installable by drone, hot-stick, or hand
- No flash over occurred up to an equivalent of 178kV Ø-Ø (Phase-Phase)
- Rated for wind loads up to 100 mph (160 km/h) and resistant to snow and ice
- High-strength spring secures position on the conductor
- Excellent visibility performance with a Michelson contrast of ≈ 0.991
Data sheets

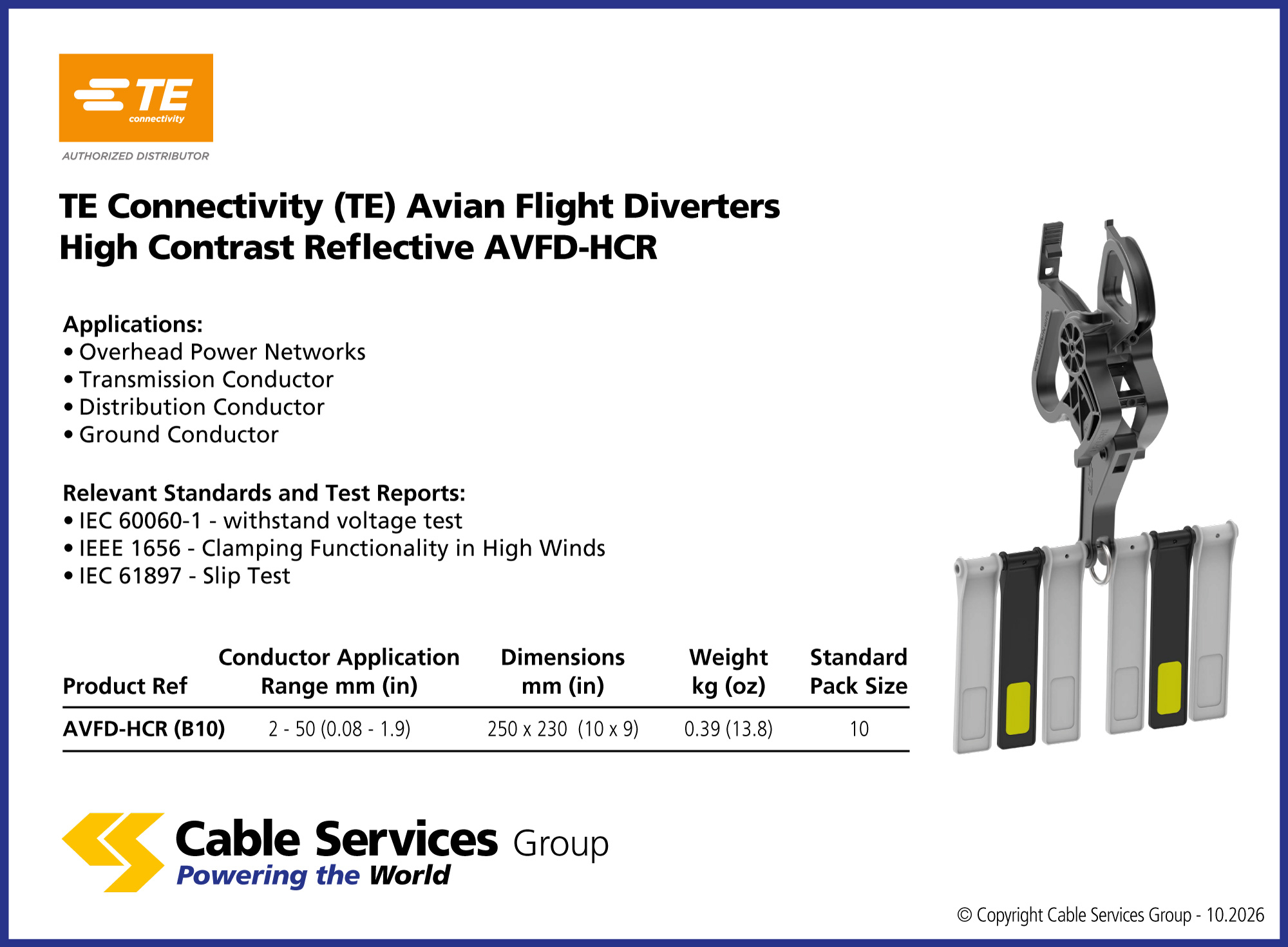

| Reference | Name | |
|---|---|---|
| AVFD-HCR (B10) | 2 - 50 (0.08 - 19) Canductor Application Range mm fin) in pack of 10 description |
