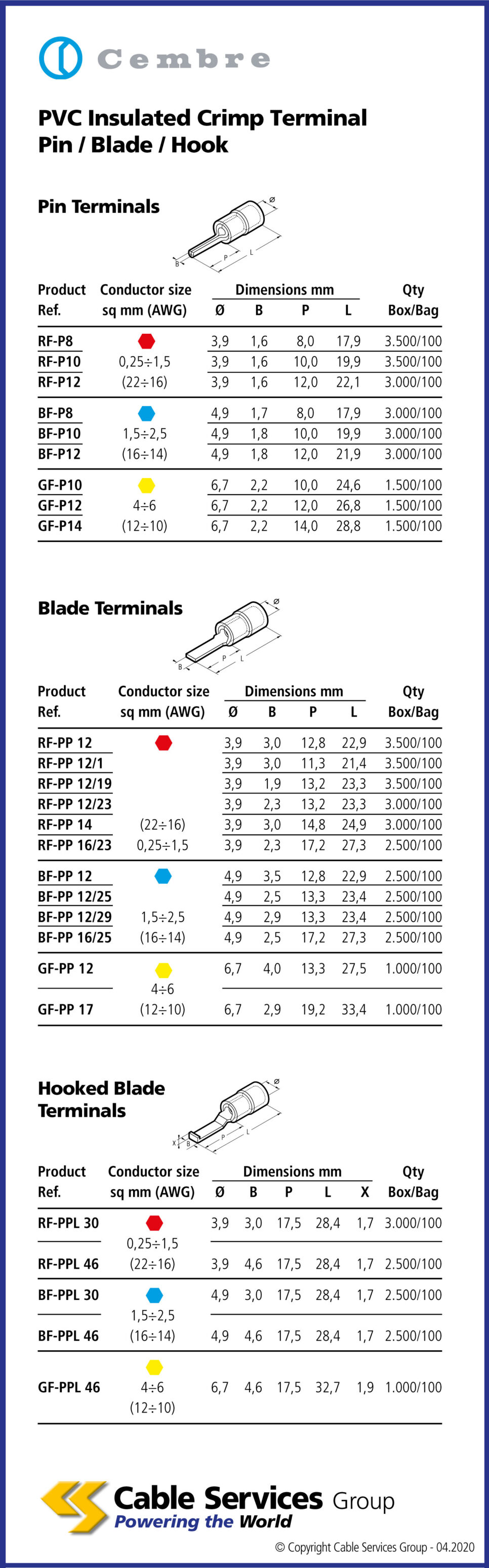

Selection Table

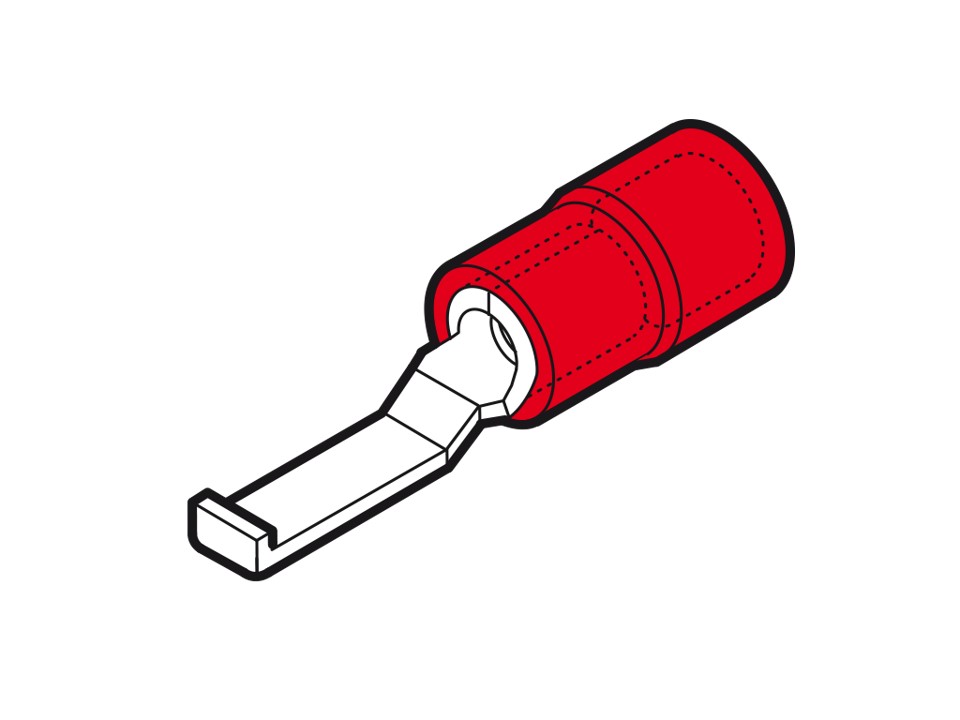

Cembre PVC Insulated Hooked Blade Terminal
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection. The internal surface of the barrel is rifled to improve contact with condictor strands when crimped and to increase tensile strength.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-PPL30 | 0.25 - 1.5mm2 conductor conductor size, 3 / 17.5mm fixing size | |
| RF-PPL46 | 0.25 - 1.5mm2 conductor conductor size, 4.6 / 17.5mm fixing size | |
| BF-PPL30 | 1.5 - 2.5mm2 conductor conductor size, 3 / 17.5mm fixing size | |
| BF-PPL46 | 1.5 - 2.5mm2 conductor conductor size, 4.6 / 17.5mm fixing size | |
| GF-PPL46 | 4 - 6mm2 conductor conductor size, 4.6 / 17.5mm fixing size |
