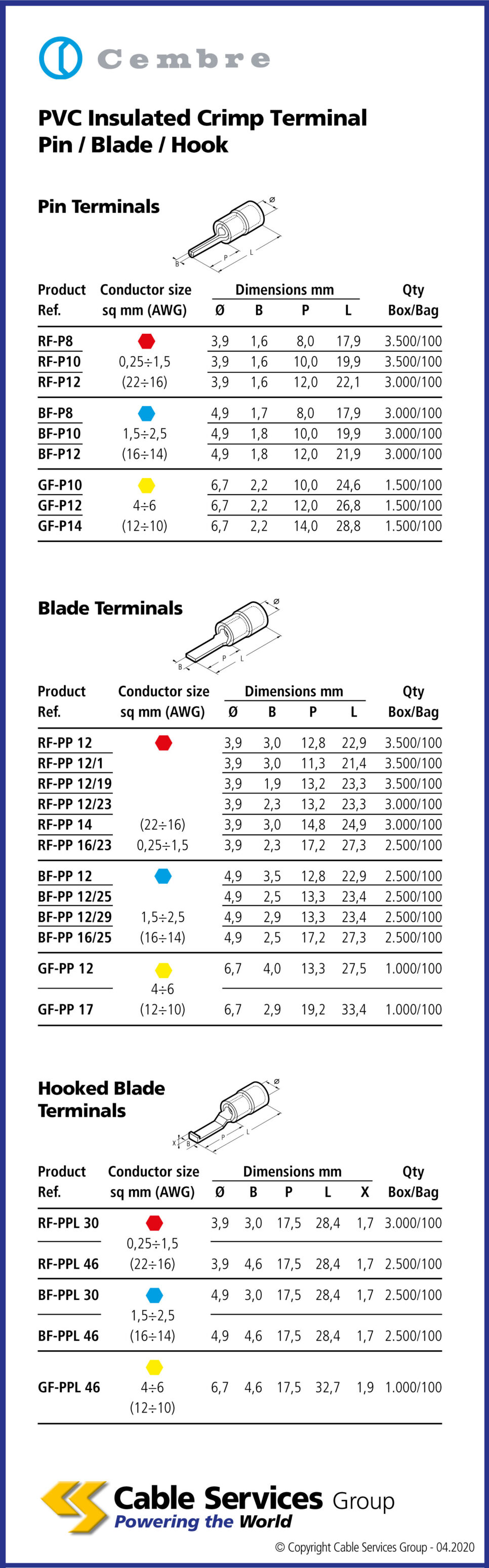

Selection Table

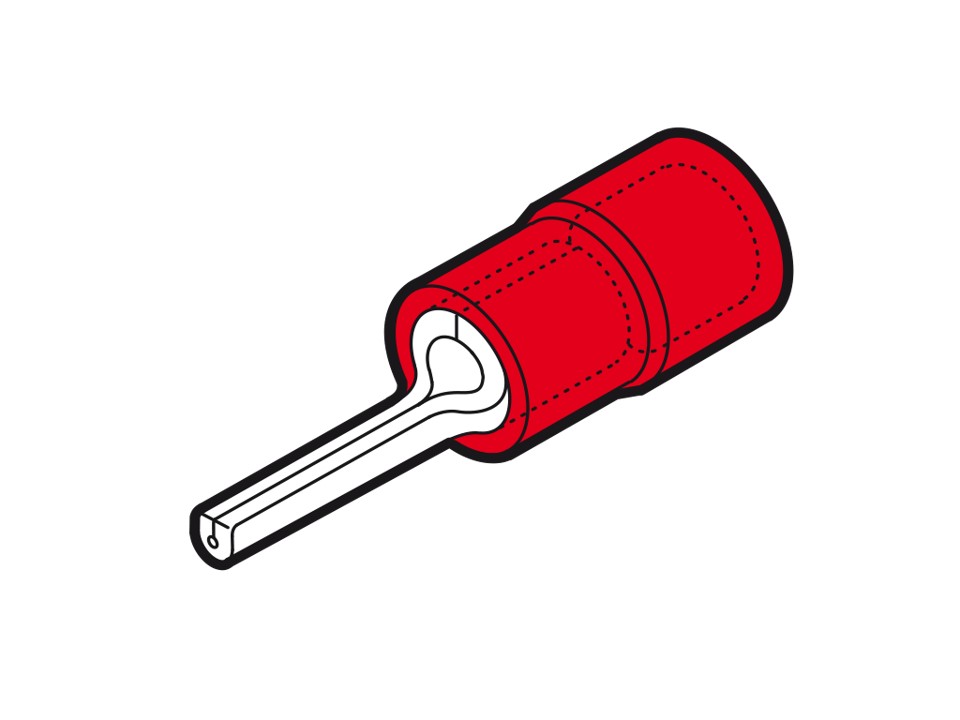

Cembre PVC Insulated Pin Terminal
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection. The internal surface of the barrel is rifled to improve contact with condictor strands when crimped and to increase tensile strength.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-P8 | 0.25 - 1.5mm2 conductor conductor size, 8mm fixing size | |
| RF-P10 | 0.25 - 1.5mm2 conductor conductor size, 10mm fixing size | |
| RF-P12 | 0.25 - 1.5mm2 conductor conductor size, 12mm fixing size | |
| BF-P8 | 1.5 - 2.5mm2 conductor conductor size, 8mm fixing size | |
| BF-P10 | 1.5 - 2.5mm2 conductor conductor size, 10mm fixing size | |
| BF-P12 | 1.5 - 2.5mm2 conductor conductor size, 12mm fixing size | |
| GF-P10 | 4 - 6mm2 conductor conductor size, 10mm fixing size | |
| GF-P12 | 4 - 6mm2 conductor conductor size, 12mm fixing size | |
| GF-P14 | 4 - 6mm2 conductor conductor size, 14mm fixing size |
