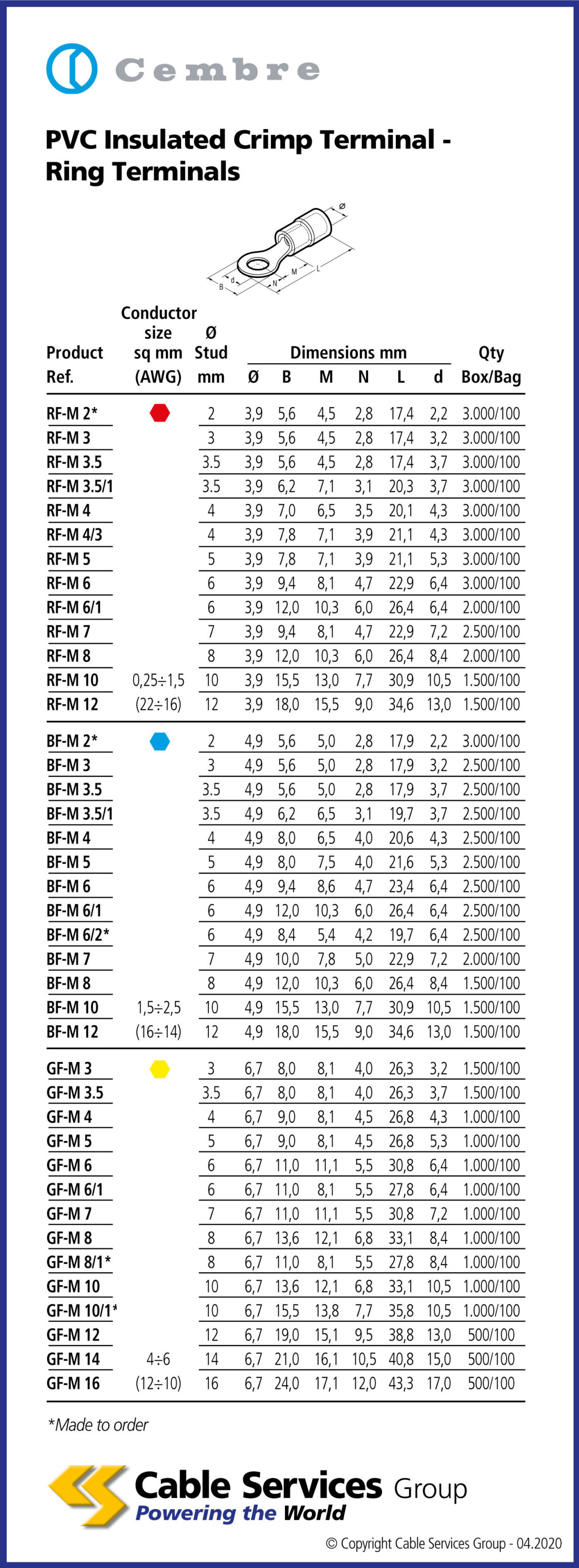

Selection Table

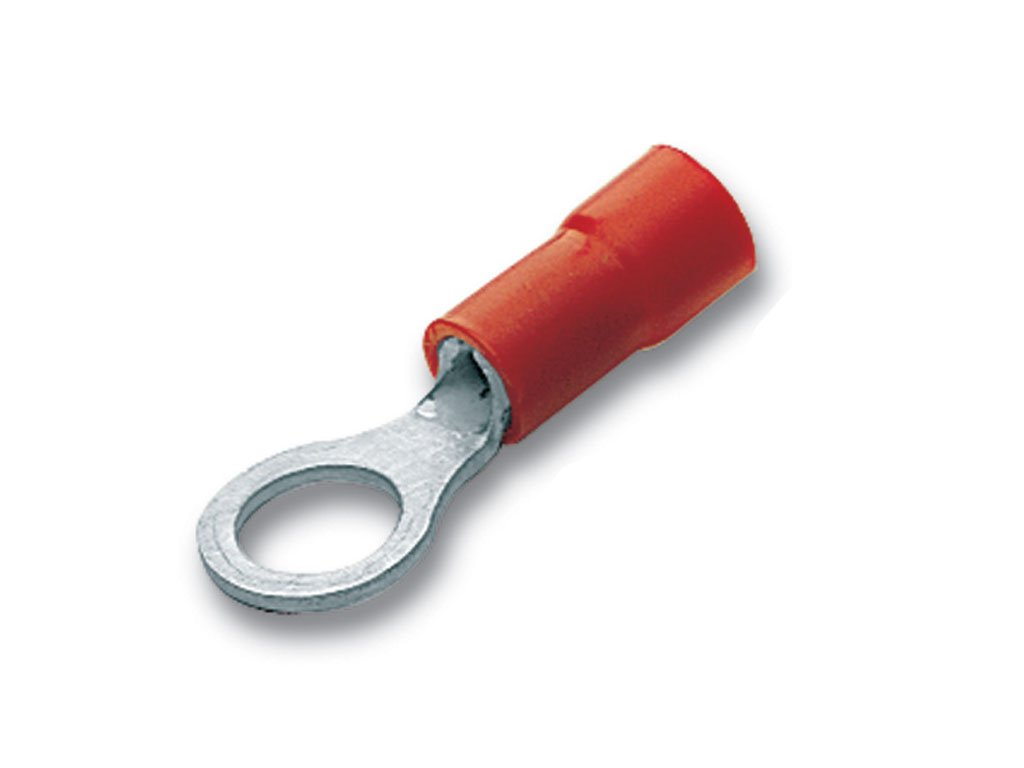

Cembre PVC Insulated Crimp Terminal – Ring Terminals
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands. The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-M2 | 0.25 - 1.5mm2 conductor conductor size, 2mm fixing size | |
| RF-M3 | 0.25 - 1.5mm2 conductor conductor size, 3mm fixing size | |
| RF-M3.5 | 0.25 - 1.5mm2 conductor conductor size, 3.5mm fixing size | |
| RF-M3.5/1 | 0.25 - 1.5mm2 conductor conductor size, 3.5/1mm fixing size | |
| RF-M4 | 0.25 - 1.5mm2 conductor conductor size, 4mm fixing size | |
| RF-M4/3 | 0.25 - 1.5mm2 conductor conductor size, 4/3mm fixing size | |
| RF-M5 | 0.25 - 1.5mm2 conductor conductor size, 5mm fixing size | |
| RF-M6 | 0.25 - 1.5mm2 conductor conductor size, 6mm fixing size | |
| RF-M6/1 | 0.25 - 1.5mm2 conductor conductor size, 6/1mm fixing size | |
| RF-M7 | 0.25 - 1.5mm2 conductor conductor size, 7mm fixing size | |
| RF-M8 | 0.25 - 1.5mm2 conductor conductor size, 8mm fixing size | |
| RF-M10 | 0.25 - 1.5mm2 conductor conductor size, 10mm fixing size | |
| RF-M12 | 0.25 - 1.5mm2 conductor conductor size, 12mm fixing size | |
| BF-M2 | 1.5 - 2.5mm2 conductor conductor size, 2mm fixing size | |
| BF-M3 | 1.5 - 2.5mm2 conductor conductor size, 3mm fixing size | |
| BF-M3.5 | 1.5 - 2.5mm2 conductor conductor size, 3.5mm fixing size | |
| BF-M3.5/1 | 1.5 - 2.5mm2 conductor conductor size, 3.5/1mm fixing size | |
| BF-M4 | 1.5 - 2.5mm2 conductor conductor size, 4mm fixing size | |
| BF-M5 | 1.5 - 2.5mm2 conductor conductor size, 5mm fixing size | |
| BF-M6 | 1.5 - 2.5mm2 conductor conductor size, 6mm fixing size | |
| BF-M6/1 | 1.5 - 2.5mm2 conductor conductor size, 6/1mm fixing size | |
| BF-M6/2 | 1.5 - 2.5mm2 conductor conductor size, 6/2mm fixing size | |
| BF-M7 | 1.5 - 2.5mm2 conductor conductor size, 7mm fixing size | |
| BF-M8 | 1.5 - 2.5mm2 conductor conductor size, 8mm fixing size | |
| BF-M10 | 1.5 - 2.5mm2 conductor conductor size, 10mm fixing size | |
| BF-M12 | 1.5 - 2.5mm2 conductor conductor size, 12mm fixing size | |
| GF-M3 | 4 - 6mm2 conductor conductor size, 3mm fixing size | |
| GF-M3.5 | 4 - 6mm2 conductor conductor size, 3.5mm fixing size | |
| GF-M4 | 4 - 6mm2 conductor conductor size, 4mm fixing size | |
| GF-M5 | 4 - 6mm2 conductor conductor size, 5mm fixing size | |
| GF-M6 | 4 - 6mm2 conductor conductor size, 6mm fixing size | |
| GF-M6/1 | 4 - 6mm2 conductor conductor size, 6/1mm fixing size | |
| GF-M7 | 4 - 6mm2 conductor conductor size, 7mm fixing size | |
| GF-M8 | 4 - 6mm2 conductor conductor size, 8mm fixing size | |
| GF-M8/1 | 4 - 6mm2 conductor conductor size, 8/1mm fixing size | |
| GF-M10 | 4 - 6mm2 conductor conductor size, 10mm fixing size | |
| GF-M10/1 | 4 - 6mm2 conductor conductor size, 10/1mm fixing size | |
| GF-M12 | 4 - 6mm2 conductor conductor size, 12mm fixing size | |
| GF-M14 | 4 - 6mm2 conductor conductor size, 14mm fixing size | |
| GF-M16 | 4 - 6mm2 conductor conductor size, 16mm fixing size |
