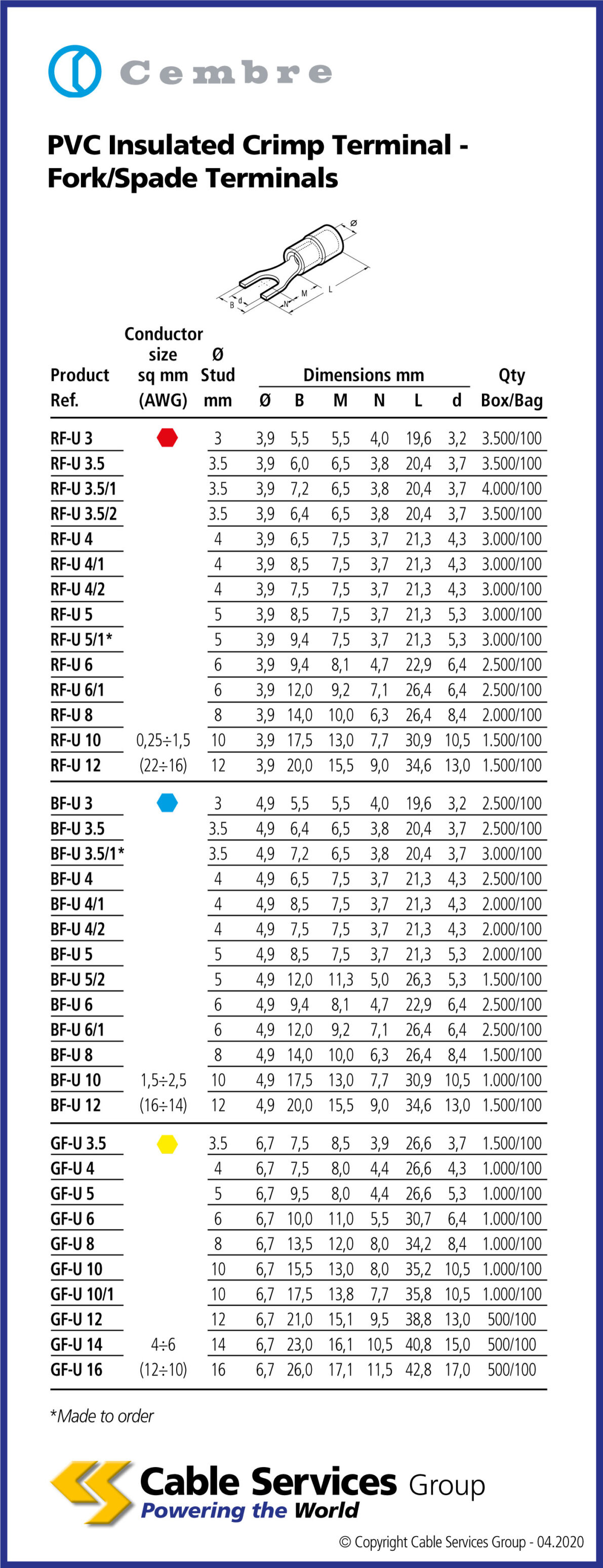

Selection Table

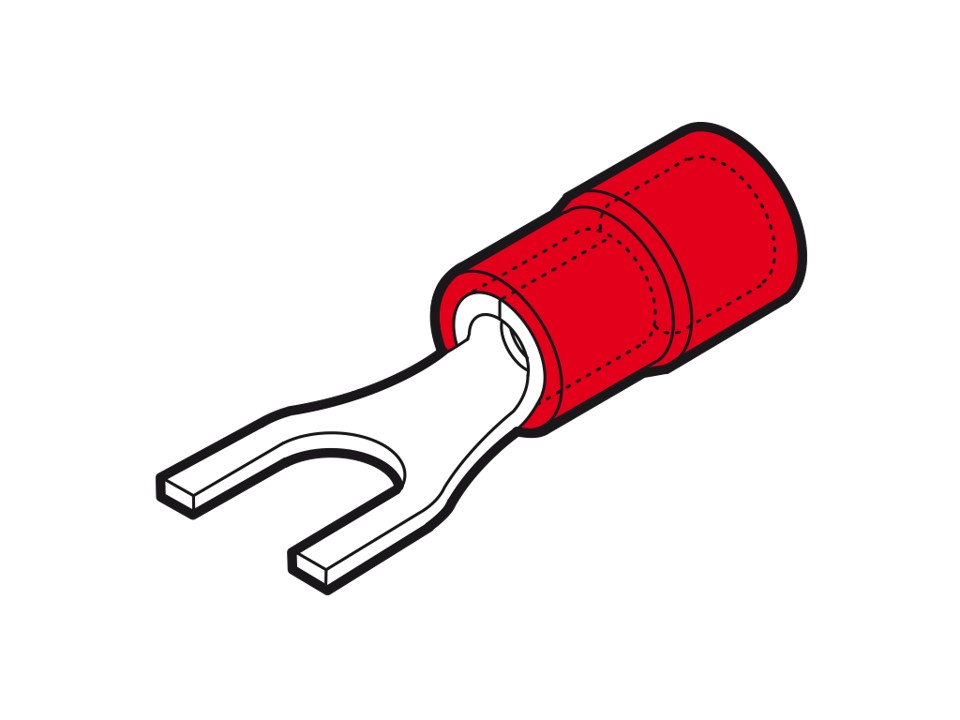

Cembre PVC Insulated Crimp Terminal – Fork/Spade Terminals
The unique funnel shaped PVC sleeve guarantees total insertion of the conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection. The internal surface of the barrel is rifled to improve contact with conductor strands when crimped and to increase tensile strength.
Data Sheets
| Reference | Name | |
|---|---|---|
| RF-U3 | 0.25 - 1.5mm2 conductor conductor size, 3mm fixing size | |
| RF-U3.5 | 0.25 - 1.5mm2 conductor conductor size, 3.5mm fixing size | |
| RF-U3.5/1 | 0.25 - 1.5mm2 conductor conductor size, 3.5/1mm fixing size | |
| RF-U3.5/2 | 0.25 - 1.5mm2 conductor conductor size, 3.5/2mm fixing size | |
| RF-U4 | 0.25 - 1.5mm2 conductor conductor size, 4mm fixing size | |
| RF-U4/1 | 0.25 - 1.5mm2 conductor conductor size, 4/1mm fixing size | |
| RF-U4/2 | 0.25 - 1.5mm2 conductor conductor size, 4/2mm fixing size | |
| RF-U5 | 0.25 - 1.5mm2 conductor conductor size, 5mm fixing size | |
| RF-U5/1 | 0.25 - 1.5mm2 conductor conductor size, 5/1mm fixing size | |
| RF-U6 | 0.25 - 1.5mm2 conductor conductor size, 6mm fixing size | |
| RF-U6/1 | 0.25 - 1.5mm2 conductor conductor size, 6/1mm fixing size | |
| RF-U8 | 0.25 - 1.5mm2 conductor conductor size, 8mm fixing size | |
| RF-U10 | 0.25 - 1.5mm2 conductor conductor size, 10mm fixing size | |
| RF-U12 | 0.25 - 1.5mm2 conductor conductor size, 12mm fixing size | |
| BF-U3 | 1.5 - 2.5mm2 conductor conductor size, 3mm fixing size | |
| BF-U3.5 | 1.5 - 2.5mm2 conductor conductor size, 3.5mm fixing size | |
| BF-U3.5/1 | 1.5 - 2.5mm2 conductor conductor size, 3.5/1mm fixing size | |
| BF-U4 | 1.5 - 2.5mm2 conductor conductor size, 4mm fixing size | |
| BF-U4/1 | 1.5 - 2.5mm2 conductor conductor size, 4/1mm fixing size | |
| BF-U4/2 | 1.5 - 2.5mm2 conductor conductor size, 4/2mm fixing size | |
| BF-U5 | 1.5 - 2.5mm2 conductor conductor size, 5mm fixing size | |
| BF-U5/2 | 1.5 - 2.5mm2 conductor conductor size, 5/2mm fixing size | |
| BF-U6 | 1.5 - 2.5mm2 conductor conductor size, 6mm fixing size | |
| BF-U6/1 | 1.5 - 2.5mm2 conductor conductor size, 6/1mm fixing size | |
| BF-U8 | 1.5 - 2.5mm2 conductor conductor size, 8mm fixing size | |
| BF-U10 | 1.5 - 2.5mm2 conductor conductor size, 10mm fixing size | |
| BF-U12 | 1.5 - 2.5mm2 conductor conductor size, 12mm fixing size | |
| GF-U3.5 | 4 - 6mm2 conductor conductor size, 3.5mm fixing size | |
| GF-U4 | 4 - 6mm2 conductor conductor size, 4mm fixing size | |
| GF-U5 | 4 - 6mm2 conductor conductor size, 5mm fixing size | |
| GF-U6 | 4 - 6mm2 conductor conductor size, 6mm fixing size | |
| GF-U8 | 4 - 6mm2 conductor conductor size, 8mm fixing size | |
| GF-U10 | 4 - 6mm2 conductor conductor size, 10mm fixing size | |
| GF-U10/1 | 4 - 6mm2 conductor conductor size, 10/1mm fixing size | |
| GF-U12 | 4 - 6mm2 conductor conductor size, 12mm fixing size | |
| GF-U14 | 4 - 6mm2 conductor conductor size, 14mm fixing size | |
| GF-U16 | 4 - 6mm2 conductor conductor size, 16mm fixing size |
