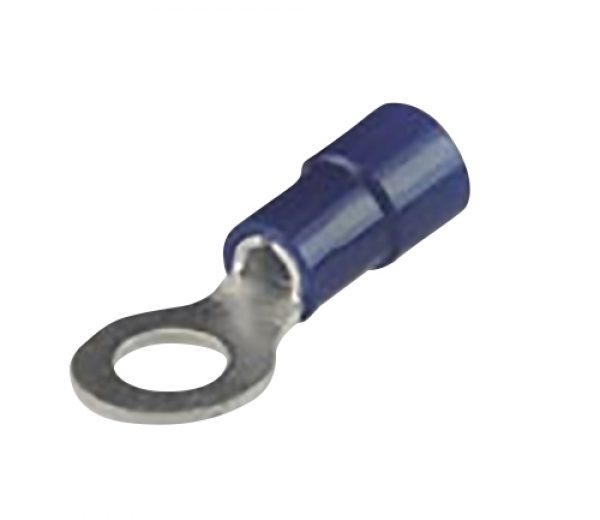

Prysmian Bicon Compression Connectors – Ring Connectors
Easy Entry – Pre Insulated connectors

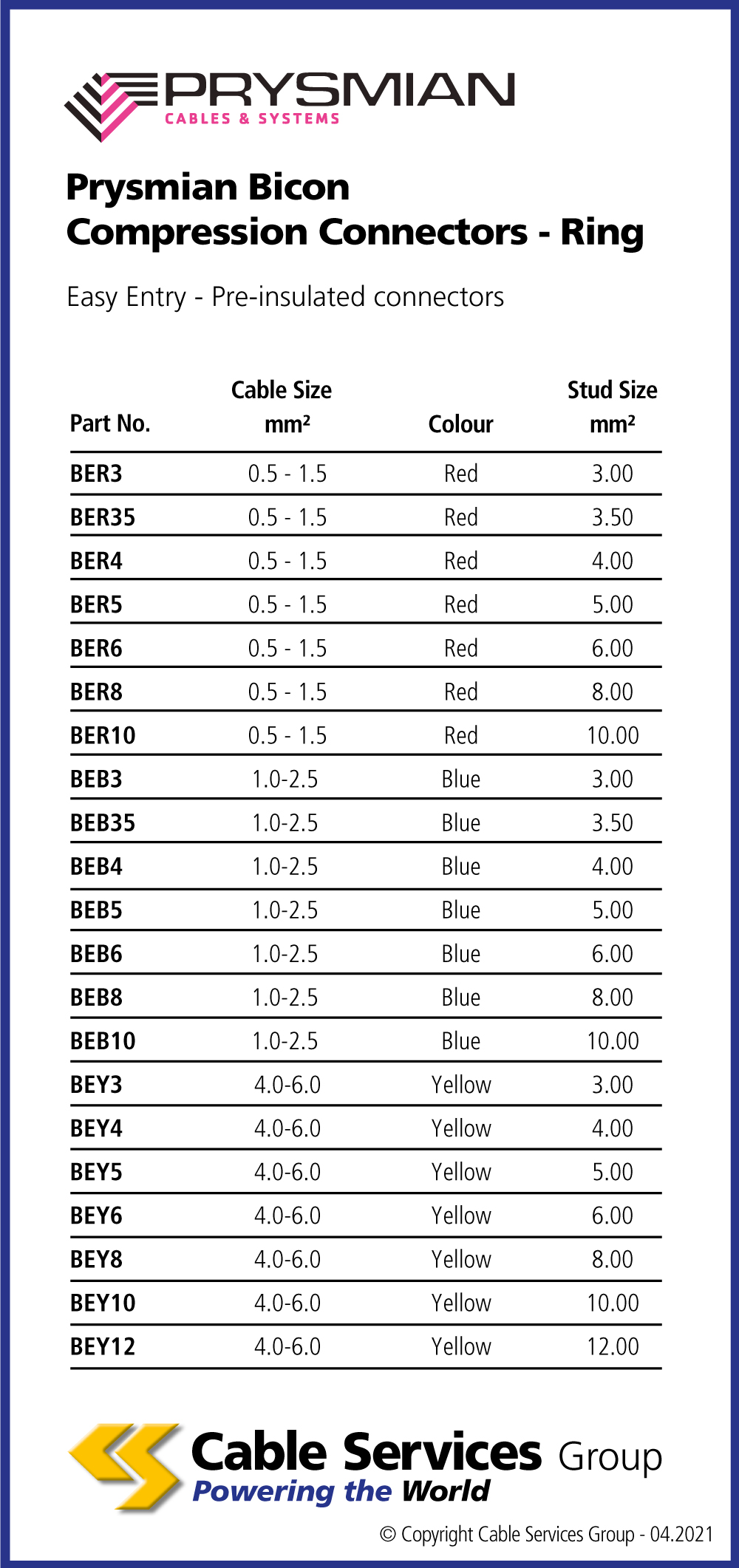

Selection Table
| Reference | Name | |
|---|---|---|
| BEB5 | 1.0-2.5 mm2 conductor conductor size, 5mm2 stud size fixing size | |
| BEY12 | 4.0-6.0mm2 conductor conductor size, 12mm2 stud size fixing size | |
| BEY10 | 4.0-6.0mm2 conductor conductor size, 10mm2 stud size fixing size | |
| BEY8 | 4.0-6.0mm2 conductor conductor size, 8mm2 stud size fixing size | |
| BEY6 | 4.0-6.0mm2 conductor conductor size, 6mm2 stud size fixing size | |
| BEY5 | 4.0-6.0mm2 conductor conductor size, 5mm2 stud size fixing size | |
| BEY4 | 4.0-6.0mm2 conductor conductor size, 4mm2 stud size fixing size | |
| BEY3 | 4.0-6.0mm2 conductor conductor size, 3mm2 stud size fixing size | |
| BEB10 | 1.0-2.5 mm2 conductor conductor size, 10mm2 stud size fixing size | |
| BEB8 | 1.0-2.5 mm2 conductor conductor size, 8mm2 stud size fixing size | |
| BEB6 | 1.0-2.5 mm2 conductor conductor size, 6mm2 stud size fixing size | |
| BER3 | 0.5 - 1.5mm2 conductor conductor size, 3mm2 stud size fixing size | |
| BEB4 | 1.0-2.5 mm2 conductor conductor size, 4mm2 stud size fixing size | |
| BEB35 | 1.0-2.5 mm2 conductor conductor size, 3.5mm2 stud size fixing size | |
| BEB3 | 1.0-2.5 mm2 conductor conductor size, 3mm2 stud size fixing size | |
| BER10 | 0.5 - 1.5mm2 conductor conductor size, 10mm2 stud size fixing size | |
| BER8 | 0.5 - 1.5mm2 conductor conductor size, 8mm2 stud size fixing size | |
| BER6 | 0.5 - 1.5mm2 conductor conductor size, 6mm2 stud size fixing size | |
| BER5 | 0.5 - 1.5mm2 conductor conductor size, 5mm2 stud size fixing size | |
| BER4 | 0.5 - 1.5mm2 conductor conductor size, 4mm2 stud size fixing size | |
| BER35 | 0.5 - 1.5mm2 conductor conductor size, 3.5mm2 stud size fixing size |
