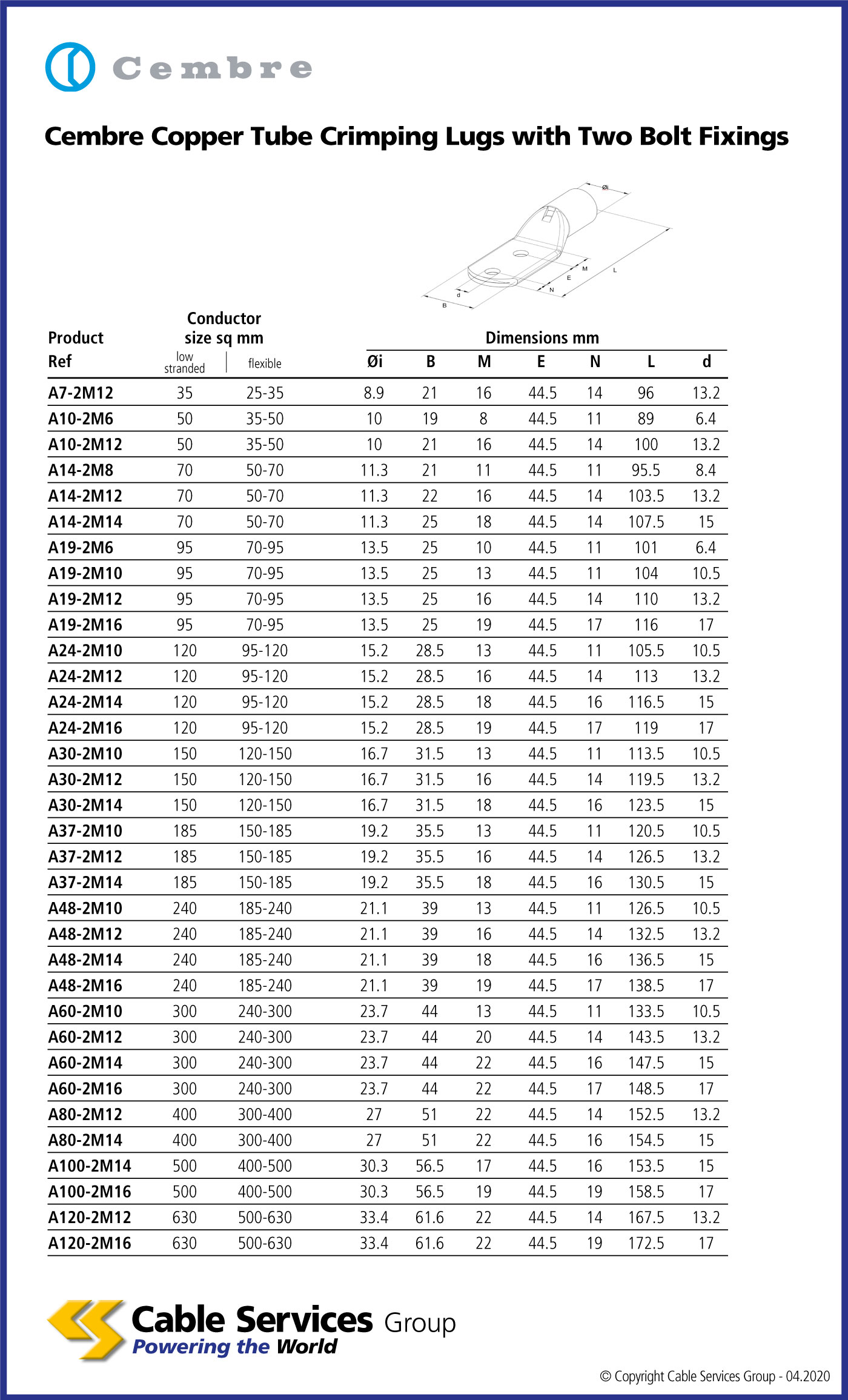

Selection Table

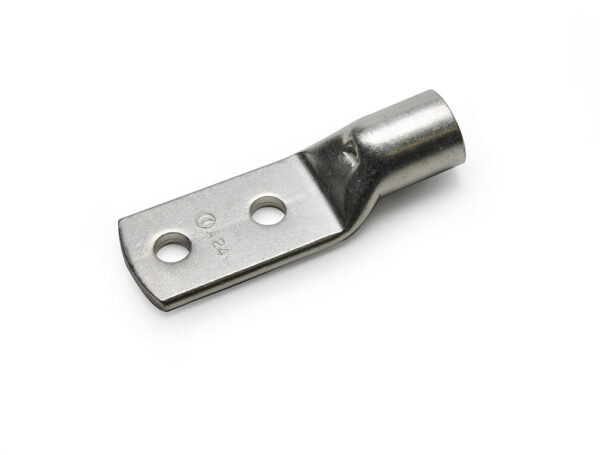

Cembre LV Copper Tube Crimping Lugs with Two Bolt Fixings
A-2M series lugs are manufactured from electrolytic copper tube. The dimensions of the tube are designed to obtain the mose efficient electrical conductivity and mechanical strength to resist vibration and pull out. Cembre lugs are annealed to guarantee optimun ductility, an absolute necessity for connectors which will have to withstand the servere deformation arising when compressed and any bending of the palm during installation.
Data Sheets
| Reference | Name | |
|---|---|---|
| A7-2M12 | 35mm2 conductor conductor size, 13.2mm fixing size | |
| A10-2M6 | 50mm2 conductor conductor size, 6.4mm fixing size | |
| A10-2M12 | 50mm2 conductor conductor size, 13.2mm fixing size | |
| A14-2M8 | 70mm2 conductor conductor size, 8.4mm fixing size | |
| A14-2M12 | 70mm2 conductor conductor size, 13.2mm fixing size | |
| A14-2M14 | 70mm2 conductor conductor size, 15mm fixing size | |
| A19-2M6 | 95mm2 conductor conductor size, 6.4mm fixing size | |
| A19-2M10 | 95mm2 conductor conductor size, 10.5mm fixing size | |
| A19-2M12 | 95mm2 conductor conductor size, 13.2mm fixing size | |
| A19-2M16 | 95mm2 conductor conductor size, 17mm fixing size | |
| A24-2M10 | 120mm2 conductor conductor size, 10.5mm fixing size | |
| A24-2M12 | 120mm2 conductor conductor size, 13.2mm fixing size | |
| A24-2M14 | 120mm2 conductor conductor size, 15mm fixing size | |
| A24-2M16 | 120mm2 conductor conductor size, 17mm fixing size | |
| A30-2M10 | 150mm2 conductor conductor size, 10.5mm fixing size | |
| A30-2M12 | 150mm2 conductor conductor size, 13.2mm fixing size | |
| A30-2M14 | 150mm2 conductor conductor size, 15mm fixing size | |
| A37-2M10 | 185mm2 conductor conductor size, 10.5mm fixing size | |
| A37-2M12 | 185mm2 conductor conductor size, 13.2mm fixing size | |
| A37-2M14 | 185mm2 conductor conductor size, 15mm fixing size | |
| A48-2M10 | 240mm2 conductor conductor size, 10.5mm fixing size | |
| A48-2M12 | 240mm2 conductor conductor size, 13.2mm fixing size | |
| A48-2M14 | 240mm2 conductor conductor size, 15mm fixing size | |
| A48-2M16 | 240mm2 conductor conductor size, 17mm fixing size | |
| A60-2M10 | 300mm2 conductor conductor size, 10.5mm fixing size | |
| A60-2M12 | 300mm2 conductor conductor size, 13.2mm fixing size | |
| A60-2M14 | 300mm2 conductor conductor size, 15mm fixing size | |
| A60-2M16 | 300mm2 conductor conductor size, 17mm fixing size | |
| A80-2M12 | 400mm2 conductor conductor size, 13.2mm fixing size | |
| A80-2M14 | 400mm2 conductor conductor size, 15mm fixing size | |
| A100-2M14 | 500mm2 conductor conductor size, 15mm fixing size | |
| A100-2M16 | 500mm2 conductor conductor size, 17mm fixing size | |
| A120-2M12 | 630mm2 conductor conductor size, 13.2mm fixing size | |
| A120-2M16 | 630mm2 conductor conductor size, 17mm fixing size |
