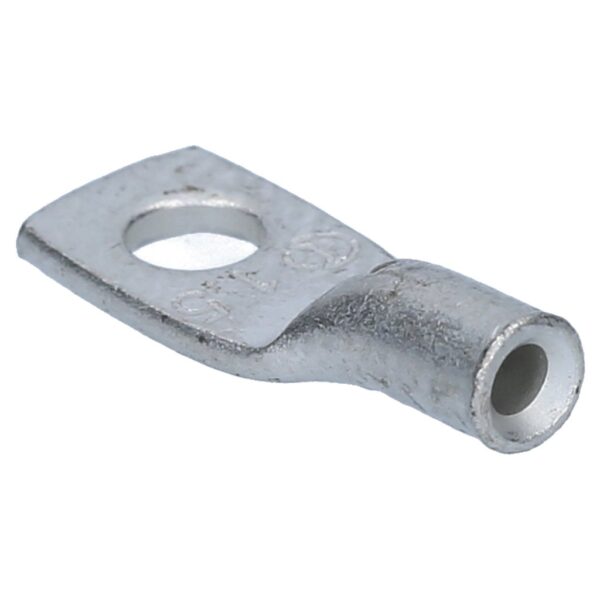

Cembre LV Copper Tube Crimping Lugs

Cembre LV Copper Tube Crimping Lugs

A-M series lugs are manufactured from electrolytic copper tubs Cu-OF CW008A conform to UNI EN 13600:2013. The dimensions of the tube are designed to obtain the most efficient electrical conductivity and mechanical strength to resist vibration and pull out. Cembre lugs are annealed to guarantee optimum ductility which is severe deformation arising when compressed and any bending of the palm during installation.

Category:

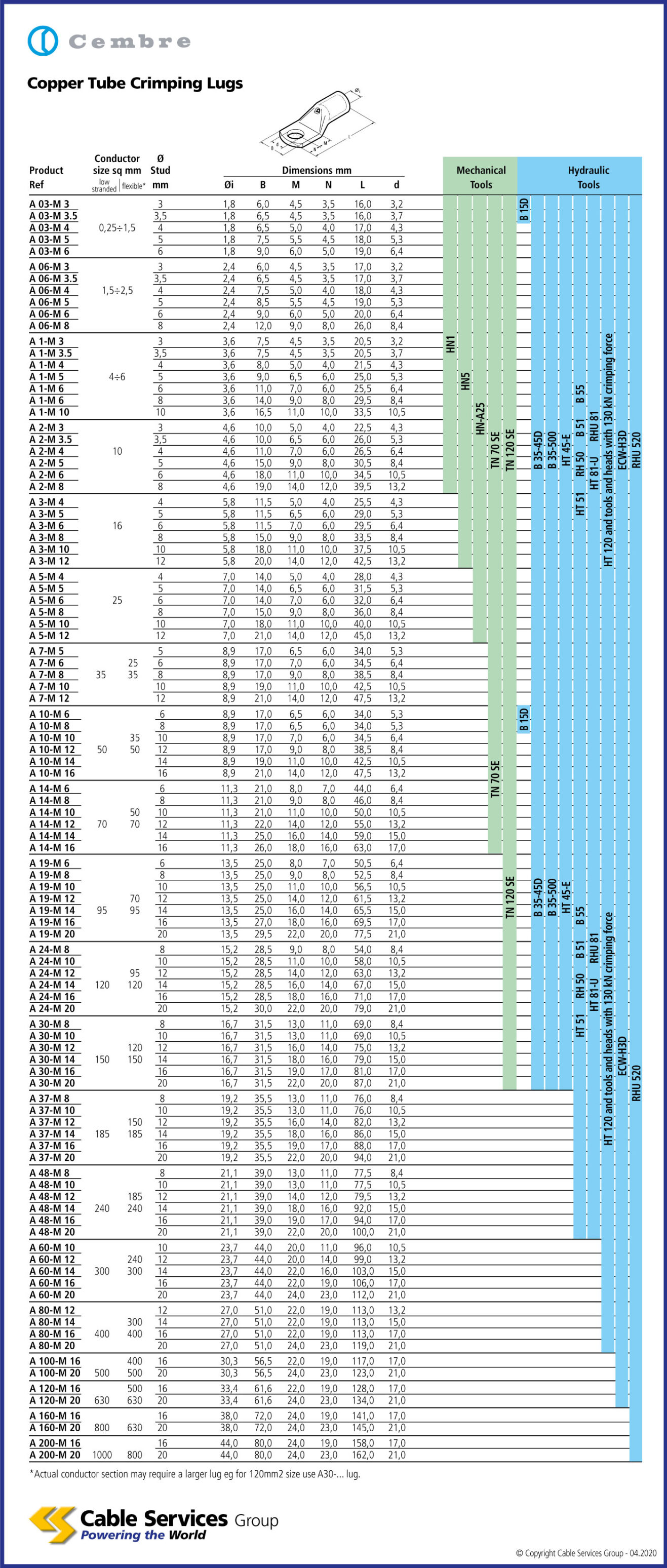

Selection Table

Data Sheets

Download Data Sheet

Reference Name
A24M10 120mm2 conductor conductor size, 10mm fixing size
A24M12 120mm2 conductor conductor size, 12mm fixing size
A24M14 120mm2 conductor conductor size, 14mm fixing size
A24M16 120mm2 conductor conductor size, 16mm fixing size
A24M20 120mm2 conductor conductor size, 20mm fixing size
A30M8 150mm2 conductor conductor size, 8mm fixing size
A30M10 150mm2 conductor conductor size, 10mm fixing size
A30M12 150mm2 conductor conductor size, 12mm fixing size
A30M14 150mm2 conductor conductor size, 14mm fixing size
A30M16 150mm2 conductor conductor size, 16mm fixing size
A30M20 150mm2 conductor conductor size, 20mm fixing size
A37M8 185mm2 conductor conductor size, 8mm fixing size
A37M10 185mm2 conductor conductor size, 10mm fixing size
A37M12 185mm2 conductor conductor size, 12mm fixing size
A37M14 185mm2 conductor conductor size, 14mm fixing size
A37M16 185mm2 conductor conductor size, 16mm fixing size
A37M20 185mm2 conductor conductor size, 20mm fixing size
A48M8 240mm2 conductor conductor size, 8mm fixing size
A48M10 240mm2 conductor conductor size, 10mm fixing size
A48M12 240mm2 conductor conductor size, 12mm fixing size
A48M14 240mm2 conductor conductor size, 14mm fixing size
A48M16 240mm2 conductor conductor size, 16mm fixing size
A48M20 240mm2 conductor conductor size, 20mm fixing size
A60M10 300mm2 conductor conductor size, 10mm fixing size
A60M12 300mm2 conductor conductor size, 12mm fixing size
A60M14 300mm2 conductor conductor size, 14mm fixing size
A60M16 300mm2 conductor conductor size, 16mm fixing size
A60M20 300mm2 conductor conductor size, 20mm fixing size
A80M10 400mm2 conductor conductor size, 10mm fixing size
A80M12 400mm2 conductor conductor size, 12mm fixing size
A80M14 400mm2 conductor conductor size, 14mm fixing size
A80M16 400mm2 conductor conductor size, 16mm fixing size
A80M20 400mm2 conductor conductor size, 20mm fixing size
A100M10 500mm2 conductor conductor size, 10mm fixing size
A100M12 500mm2 conductor conductor size, 12mm fixing size
A100M14 500mm2 conductor conductor size, 14mm fixing size
A100M16 500mm2 conductor conductor size, 16mm fixing size
A100M20 500mm2 conductor conductor size, 20mm fixing size
A120M10 630mm2 conductor conductor size, 10mm fixing size
A120M12 630mm2 conductor conductor size, 12mm fixing size
A120M14 630mm2 conductor conductor size, 14mm fixing size
A120M16 630mm2 conductor conductor size, 16mm fixing size
A120M20 630mm2 conductor conductor size, 20mm fixing size
A160M14 800mm2 conductor conductor size, 14mm fixing size
A160M16 800mm2 conductor conductor size, 16mm fixing size
A160M20 800mm2 conductor conductor size, 20mm fixing size
A200M16 1000mm2 conductor conductor size, 16mm fixing size
A200M20 1000mm2 conductor conductor size, 20mm fixing size
A10M16 50mm2 conductor conductor size, 16mm fixing size
A14M6 70mm2 conductor conductor size, 6mm fixing size
A14M8 70mm2 conductor conductor size, 8mm fixing size
A14M10 70mm2 conductor conductor size, 10mm fixing size
A14M12 70mm2 conductor conductor size, 12mm fixing size
A14M14 70mm2 conductor conductor size, 14mm fixing size
A14M16 70mm2 conductor conductor size, 16mm fixing size
A19M6 95mm2 conductor conductor size, 6mm fixing size
A19M8 95mm2 conductor conductor size, 8mm fixing size
A19M10 95mm2 conductor conductor size, 10mm fixing size
A19M12 95mm2 conductor conductor size, 12mm fixing size
A19M14 95mm2 conductor conductor size, 14mm fixing size
A19M16 95mm2 conductor conductor size, 16mm fixing size
A19M20 120mm2 conductor conductor size, 20mm fixing size
A24M8 120mm2 conductor conductor size, 8mm fixing size
A03M3 0.25 - 1.5mm2 conductor conductor size, 3mm fixing size
A03M3.5 0.25 - 1.5mm2 conductor conductor size, 3.5mm fixing size
A03M4 0.25 - 1.5mm2 conductor conductor size, 4mm fixing size
A03M5 0.25 - 1.5mm2 conductor conductor size, 5mm fixing size
A03M6 0.25 - 1.5mm2 conductor conductor size, 6mm fixing size
A06M3 1.5 - 2.5mm2 conductor conductor size, 3mm fixing size
A06M3.5 1.5 - 2.5mm2 conductor conductor size, 3.5mm fixing size
A06M4 1.5 - 2.5mm2 conductor conductor size, 4mm fixing size
A06M5 1.5 - 2.5mm2 conductor conductor size, 5mm fixing size
A06M6 1.5 - 2.5mm2 conductor conductor size, 6mm fixing size
A06M8 1.5 - 2.5mm2 conductor conductor size, 8mm fixing size
A1M3.5 4 - 6mm2 conductor conductor size, 3.5mm fixing size
A1M4 4 - 6mm2 conductor conductor size, 4mm fixing size
A1M5 4 - 6mm2 conductor conductor size, 5mm fixing size
A1M6 4 - 6mm2 conductor conductor size, 6mm fixing size
A1M8 4 - 6mm2 conductor conductor size, 8mm fixing size
A1M10 4 - 6mm2 conductor conductor size, 10mm fixing size
A2M4 10mm2 conductor conductor size, 4mm fixing size
A2M5 10mm2 conductor conductor size, 5mm fixing size
A2M6 10mm2 conductor conductor size, 6mm fixing size
A2M8 10mm2 conductor conductor size, 8mm fixing size
A2M10 10mm2 conductor conductor size, 10mm fixing size
A2M12 10mm2 conductor conductor size, 12mm fixing size
A2M16 10mm2 conductor conductor size, 16mm fixing size
A3M4 16mm2 conductor conductor size, 4mm fixing size
A3M5 16mm2 conductor conductor size, 5mm fixing size
A3M6 16mm2 conductor conductor size, 6mm fixing size
A3M8 16mm2 conductor conductor size, 8mm fixing size
A3M10 16mm2 conductor conductor size, 10mm fixing size
A3M12 16mm2 conductor conductor size, 12mm fixing size
A3M16 16mm2 conductor conductor size, 16mm fixing size
A5M4 25mm2 conductor conductor size, 4mm fixing size
A5M5 25mm2 conductor conductor size, 5mm fixing size
A5M6 25mm2 conductor conductor size, 6mm fixing size
A5M8 25mm2 conductor conductor size, 8mm fixing size
A5M10 25mm2 conductor conductor size, 10mm fixing size
A5M12 25mm2 conductor conductor size, 12mm fixing size
A5M16 25mm2 conductor conductor size, 16mm fixing size
A7M5 35mm2 conductor conductor size, 5mm fixing size
A7M6 35mm2 conductor conductor size, 6mm fixing size
A7M8 35mm2 conductor conductor size, 8mm fixing size
A7M10 35mm2 conductor conductor size, 10mm fixing size
A7M12 35mm2 conductor conductor size, 12mm fixing size
A7M14 35mm2 conductor conductor size, 14mm fixing size
A7M16 35mm2 conductor conductor size, 16mm fixing size
A10M6 50mm2 conductor conductor size, 6mm fixing size
A10M8 50mm2 conductor conductor size, 8mm fixing size
A10M10 50mm2 conductor conductor size, 10mm fixing size
A10M12 50mm2 conductor conductor size, 12mm fixing size
A10M14 50mm2 conductor conductor size, 14mm fixing size
