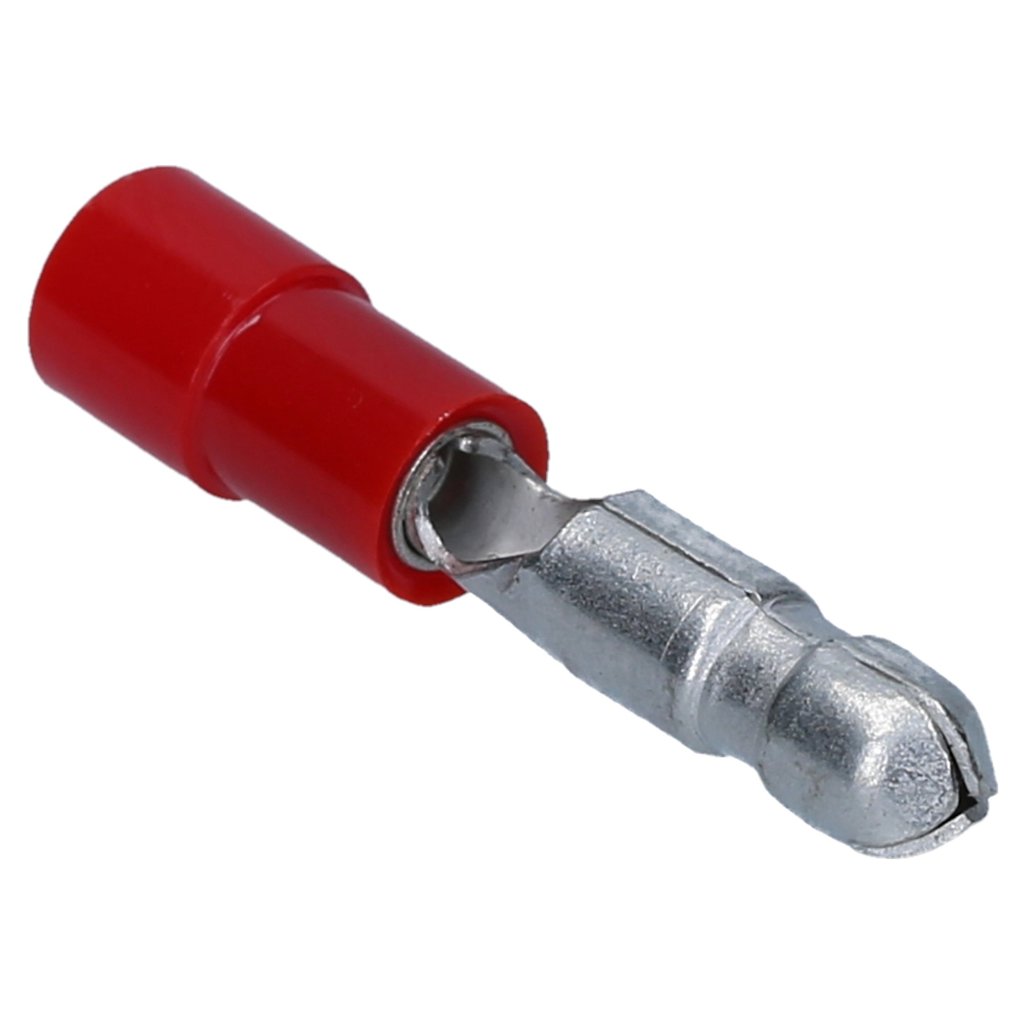

Cembre PVC Insulated Bullet and Socket Connectors

£0.00

The PC insulated disconnect terminals has been designed, to meet the increasing demands for improved safety and reliability of electrical connectors. The polycarbonated insulation, is a halogen free, self extingushing thermoplastic material class V0 (UL 94). The unique funnel shaped entry of the insulation sleeve, guarantees total insertion of conductor strands into the terminal barrel, creating a secure and reliable, electrical and mechanical connection.

Clear
Category:

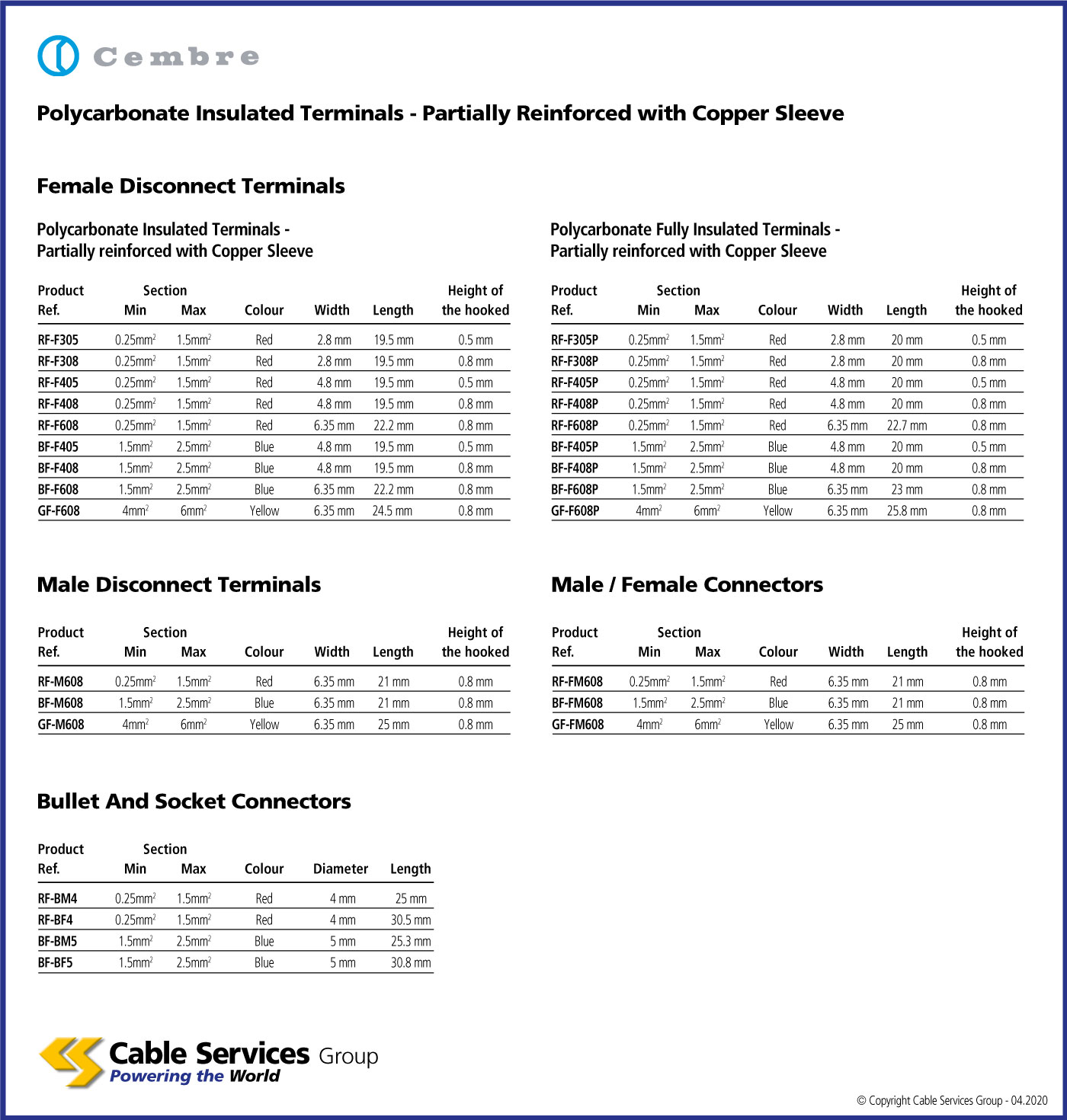

Selection Table

Data Sheets

Download Data Sheet

ReferenceName
RF-BM40.25 - 1.5mm2 conductor conductor size, 4 / 25mm fixing size
RF-BF40.25 - 1.5mm2 conductor conductor size, 4 / 30.5mm fixing size
BF-BM51.5 - 2.5mm2 conductor conductor size, 5 / 25.3mm fixing size
BF-BF51.5 - 2.5mm2 conductor conductor size, 5 / 30.8mm fixing size
