Cembre MV Copper Tube Crimping Lugs

Series CA-M and 2A-M terminals are designed for high voltage applications up to 33kV. They are manufactured from high purity copper tube, annealed and tin-plated. The extended barrel enhances both electrical and mechanical performance. The absence of an inspection hole prevents moisture entry into the crimped joint and makes these terminals suitable for outdoor applications.

Category:

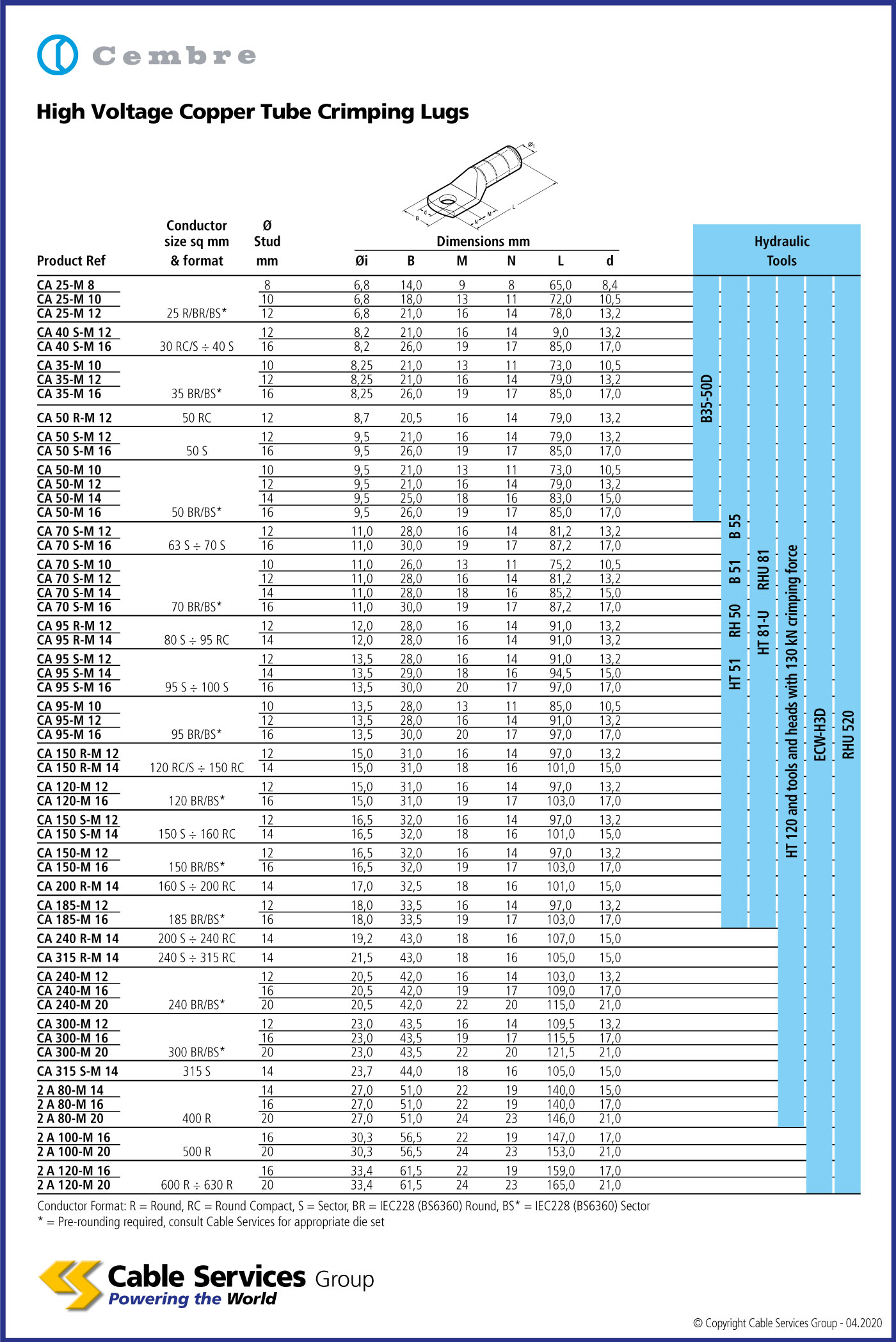

Selection Table

Data Sheets

Download Data Sheet

Reference Name
CA25M8 25mm2 conductor conductor size, 8mm fixing size
CA25M10 25mm2 conductor conductor size, 10mm fixing size
CA25M12 25mm2 conductor conductor size, 12mm fixing size
CA40SM12 30mm2 conductor conductor size, 12mm fixing size
CA40SM16 30mm2 conductor conductor size, 16mm fixing size
CA35M10 30mm2 conductor conductor size, 10mm fixing size
CA35M12 35mm2 conductor conductor size, 12mm fixing size
CA35M16 35mm2 conductor conductor size, 16mm fixing size
CA50RM12 50mm2 conductor conductor size, 12 / 8.7mm fixing size
CA50SM12 50mm2 conductor conductor size, 12 / 9.5mm fixing size
CA50SM16 50mm2 conductor conductor size, 16mm fixing size
CA50M10 50mm2 conductor conductor size, 10mm fixing size
CA50M12 50mm2 conductor conductor size, 12mm fixing size
CA50M14 50mm2 conductor conductor size, 14mm fixing size
CA50M16 50mm2 conductor conductor size, 16mm fixing size
CA70SM10 70mm2 conductor conductor size, 10mm fixing size
CA70SM12 70mm2 conductor conductor size, 12mm fixing size
CA70SM14 70mm2 conductor conductor size, 14mm fixing size
CA70SM16 70mm2 conductor conductor size, 16mm fixing size
CA95RM12 95mm2 conductor conductor size, 12mm fixing size
CA95RM14 95mm2 conductor conductor size, 14mm fixing size
CA95SM12 95mm2 conductor conductor size, 12mm fixing size
CA95SM14 95mm2 conductor conductor size, 14mm fixing size
CA95SM16 95mm2 conductor conductor size, 16mm fixing size
CA95M10 95mm2 conductor conductor size, 10mm fixing size
CA95M12 95mm2 conductor conductor size, 12mm fixing size
CA95M16 95mm2 conductor conductor size, 16mm fixing size
CA150RM12 150mm2 conductor conductor size, 12mm fixing size
CA150RM14 150mm2 conductor conductor size, 14mm fixing size
CA120M12 120mm2 conductor conductor size, 12mm fixing size
CA120M16 120mm2 conductor conductor size, 16mm fixing size
CA150SM12 150mm2 conductor conductor size, 12mm fixing size
CA150SM14 150mm2 conductor conductor size, 14mm fixing size
CA150M12 150mm2 conductor conductor size, 12mm fixing size
CA150M16 150mm2 conductor conductor size, 16mm fixing size
CA200RM14 200mm2 conductor conductor size, 14mm fixing size
CA185M12 185mm2 conductor conductor size, 12mm fixing size
CA185M16 185mm2 conductor conductor size, 16mm fixing size
CA240RM14 240mm2 conductor conductor size, 14mm fixing size
CA315RM14 315mm2 conductor conductor size, 14mm fixing size
CA240M12 315mm2 conductor conductor size, 12mm fixing size
CA240M16 240mm2 conductor conductor size, 16mm fixing size
CA240M20 240mm2 conductor conductor size, 20mm fixing size
CA300M12 300mm2 conductor conductor size, 12mm fixing size
CA300M16 300mm2 conductor conductor size, 16mm fixing size
CA300M20 300mm2 conductor conductor size, 20mm fixing size
CA315SM14 315mm2 conductor conductor size, 14mm fixing size
2A80M14 400mm2 conductor conductor size, 14mm fixing size
2A80M16 400mm2 conductor conductor size, 16mm fixing size
2A80M20 400mm2 conductor conductor size, 20mm fixing size
2A100M16 500mm2 conductor conductor size, 16mm fixing size
2A100M20 500mm2 conductor conductor size, 20mm fixing size
2A120M16 600mm2 conductor conductor size, 16mm fixing size
2A120M20 600mm2 conductor conductor size, 20mm fixing size
