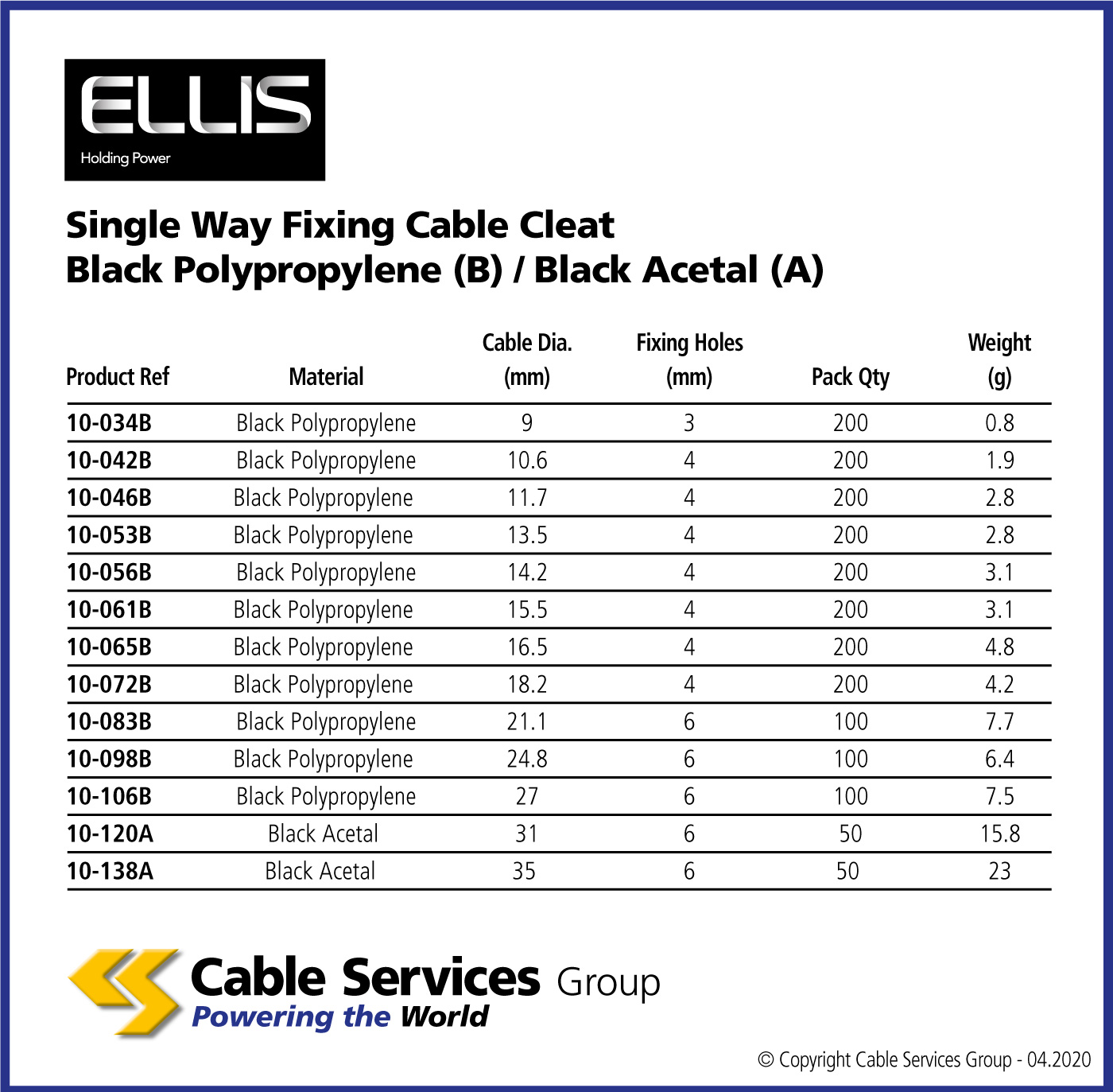

Selection Table

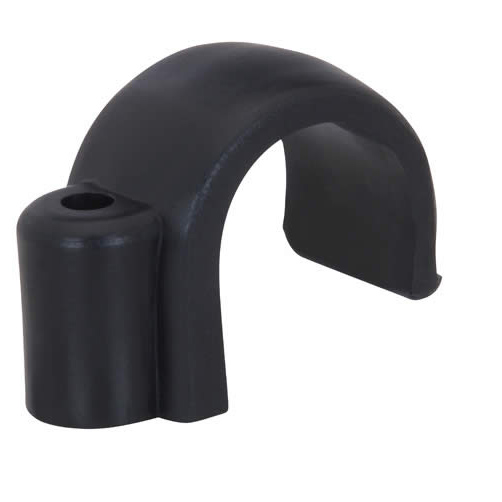

Ellis Patents Single Way Fixing Cable Cleat
Manufactured as standard in Black Acetal (A), Black Polypropylene (B) or Grey Flame Retardant Polypropylene (FR). A robust cleat used for securing armoured power cables.
See our cable cleat sizing guide for help choosing the right cleat size.
Data Sheets
| Reference | Name | |
|---|---|---|
| 1003A | ||
| 10-034B | 9mm cable sizing | |
| 10-042B | 10.6mm cable sizing | |
| 10-046B | 11.7mm cable sizing | |
| 10-053B | 13.5mm cable sizing | |
| 10-056B | 14.2mm cable sizing | |
| 10-061B | 15.5mm cable sizing | |
| 10-065B | 16.5mm cable sizing | |
| 10-072B | 18.2mm cable sizing | |
| 10-083B | 21.1mm cable sizing | |
| 10-098B | 24.8mm cable sizing | |
| 10-106B | 27mm cable sizing | |
| 10-120A | 31mm cable sizing | |
| 10-138A | 35mm cable sizing |
