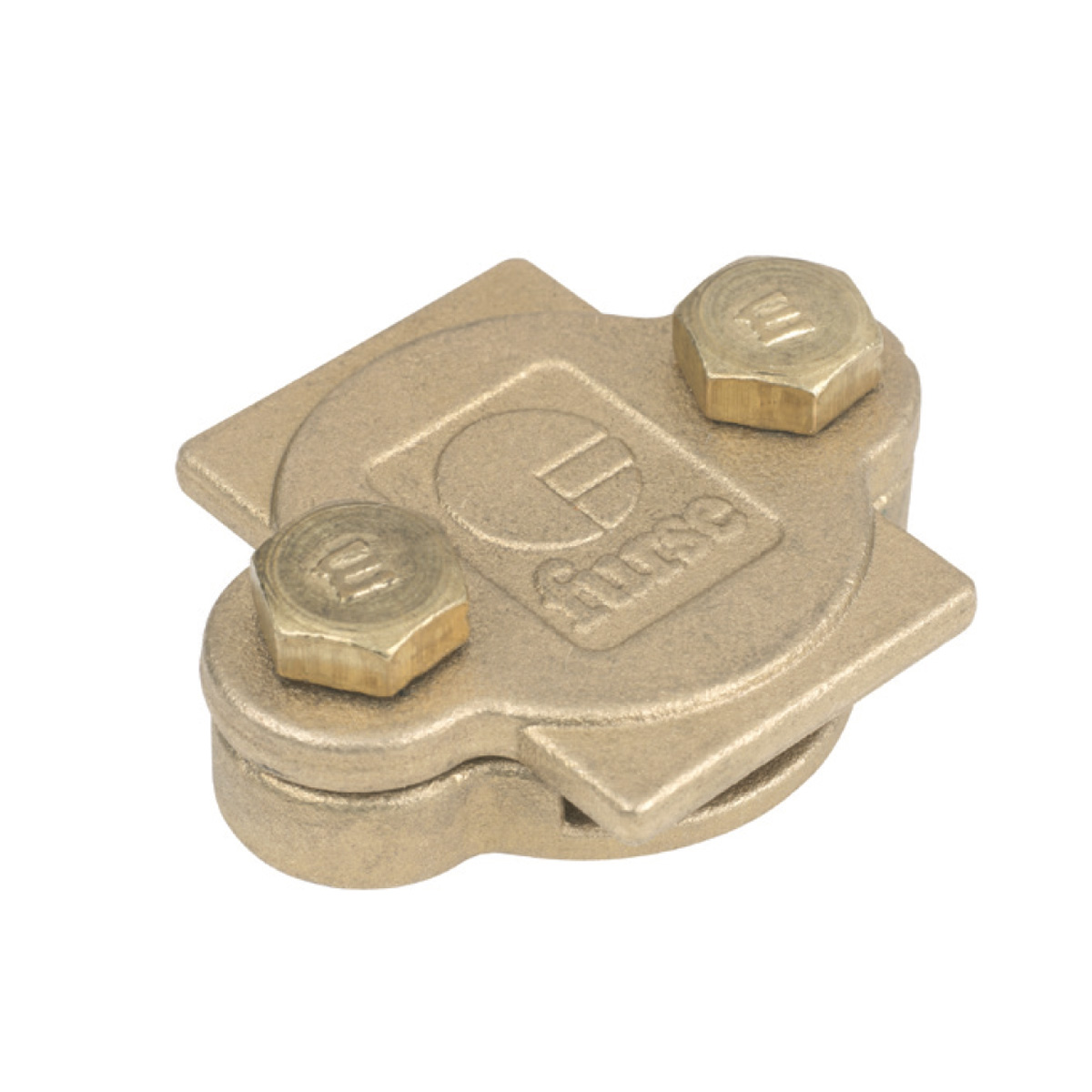

Furse Test / Junction Clamp

Manufactured from high quality alloys of either copper or aluminium. Simple to install, providing an effective low resistance connection between overlapping tapes. The clamped connection is easily made/remade to allow for periodic testing. Tightening torque CN005 15 Nm; CN105-H 13 Nm.

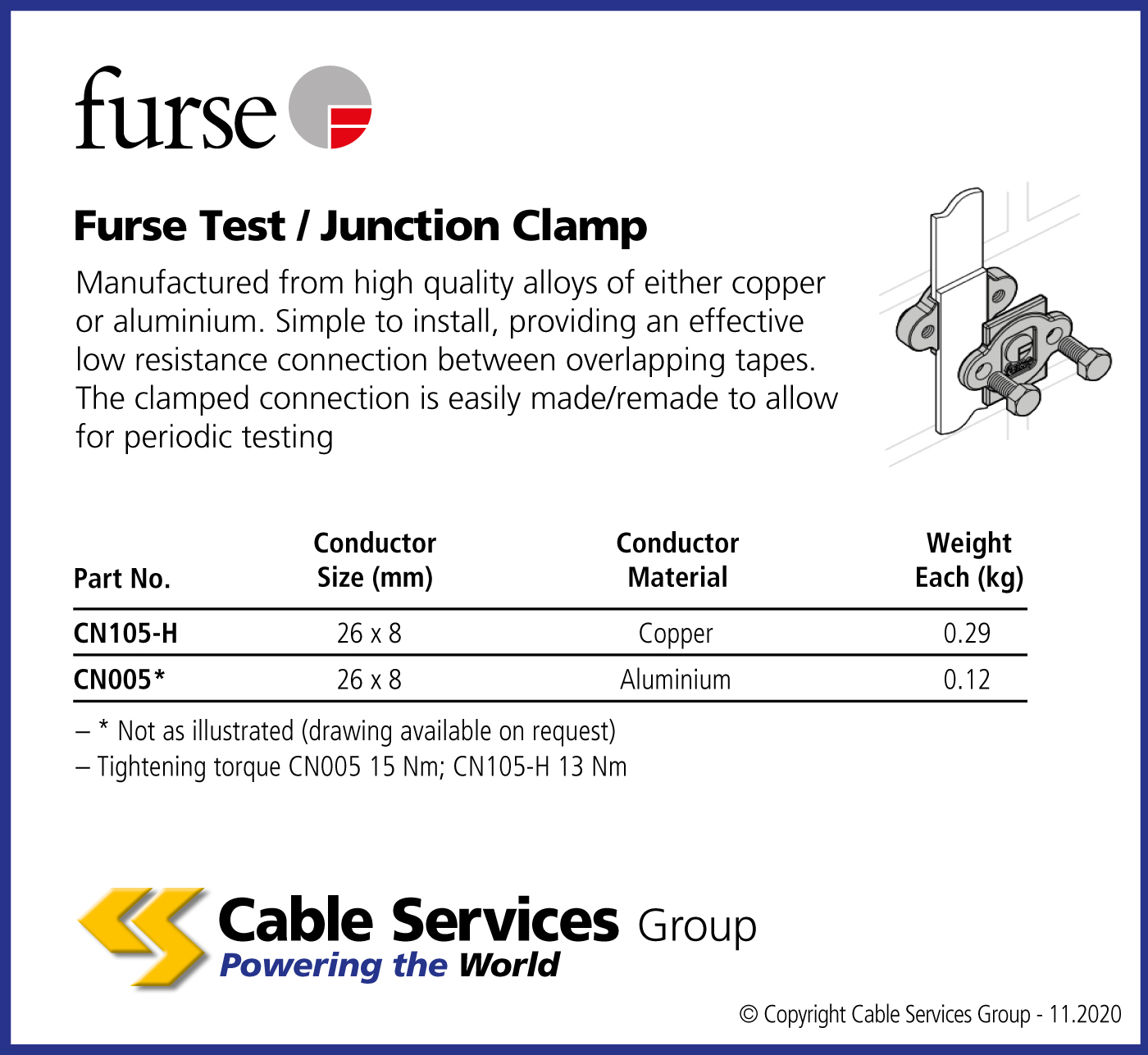

Selection Table

Data Sheets

Download Data Sheet

Reference Name
CN105H 26 x 8mm size, Copper fixing type
CN005 26 x 8mm size, Aluminium fixing type
