Selection Table

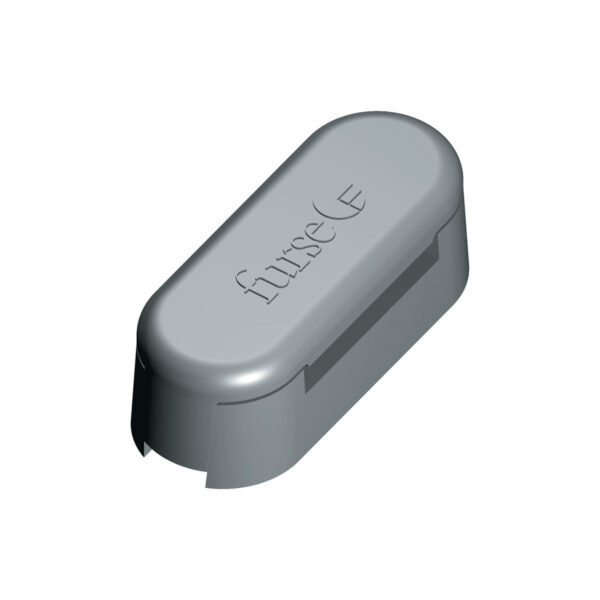

Furse Non-metallic DC Tape Clip
High grade Polypropylene, UV stabilized against degradation by sunlight and non-brittle to prevent cold weather damage. Available in six colours to match bare and PVC covered copper and aluminium tapes. Fix using countersunk wood screws 11⁄2” No. 10 or M6 and wall plugs.
Data Sheets

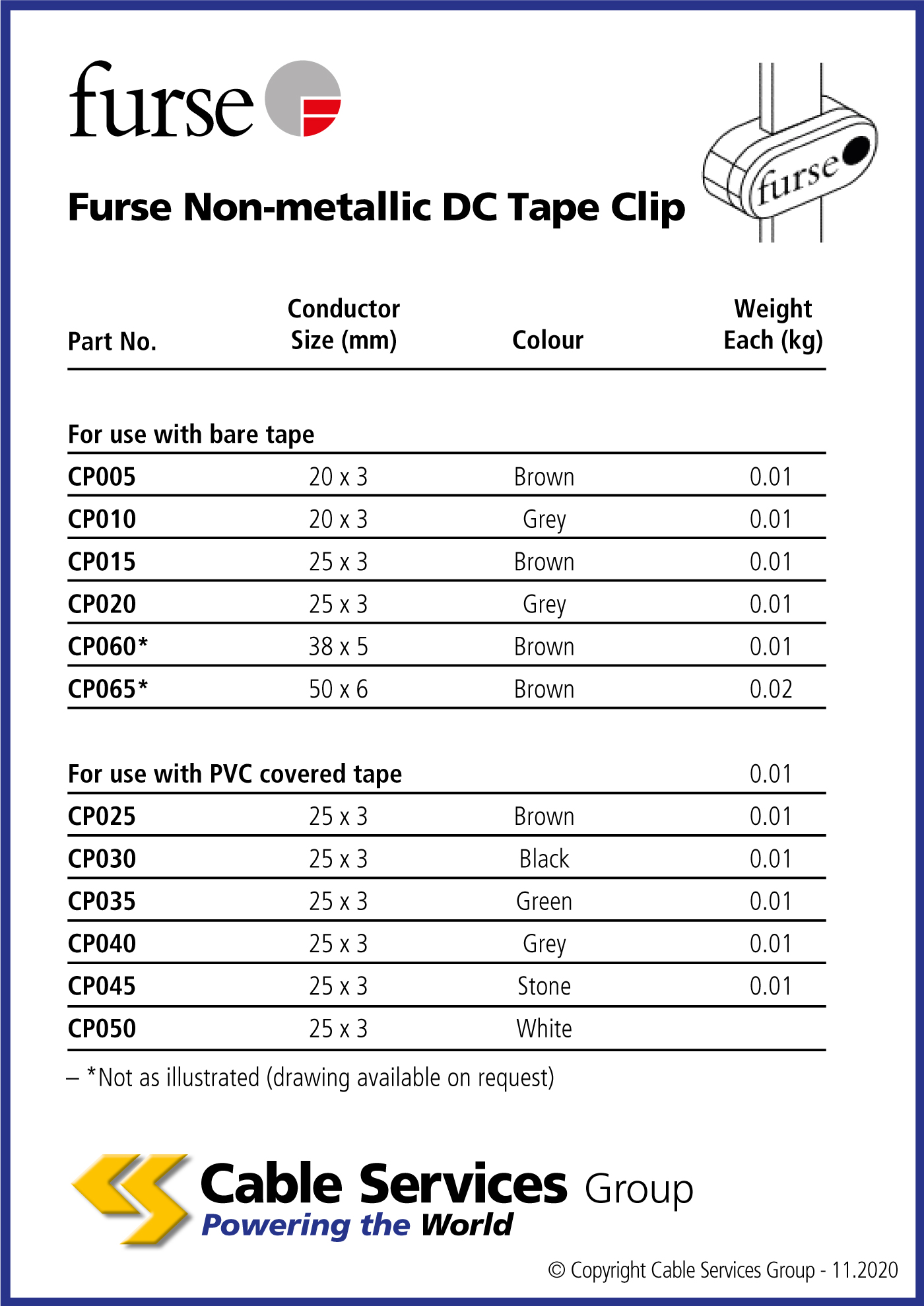

| Reference | Name | |
|---|---|---|
| CP005 | 20 x 3mm size, Brownuse with bare tape fixing type | |
| CP010 | 20 x 3mm size, Greyuse with bare tape fixing type | |
| CP015 | 25 x 3mm size, Brownuse with bare tape fixing type | |
| CP020 | 25 x 3mm size, Greyuse with bare tape fixing type | |
| CP060 | 38 x 5mm size, Brownuse with bare tape fixing type | |
| CP065 | 50 x 6mm size, Brownuse with bare tape fixing type | |
| CP025 | 25 x 3mm size, Brown use with PVC covered tape fixing type | |
| CP030 | 25 x 3mm size, Black use with PVC covered tape fixing type | |
| CP035 | 25 x 3mm size, Green use with PVC covered tape fixing type | |
| CP040 | 25 x 3mm size, Grey use with PVC covered tape fixing type | |
| CP045 | 25 x 3mm size, Stone use with PVC covered tape fixing type | |
| CP050 | 25 x 3mm size, White use with PVC covered tape fixing type |
