Selection Table

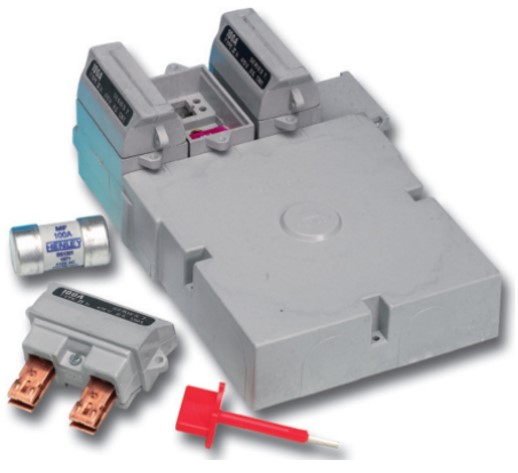

Henley House Service Cut Out – Series 7 Single Pole/Triple Pole
The market leading Series 7 range, sets the standard for safety and convenience in House Service Cut-outs. Designed for Combined Neutral and Earth (CNE) systems, rated up to 100A and fully compliant with BS 7657:2010
Data Sheets

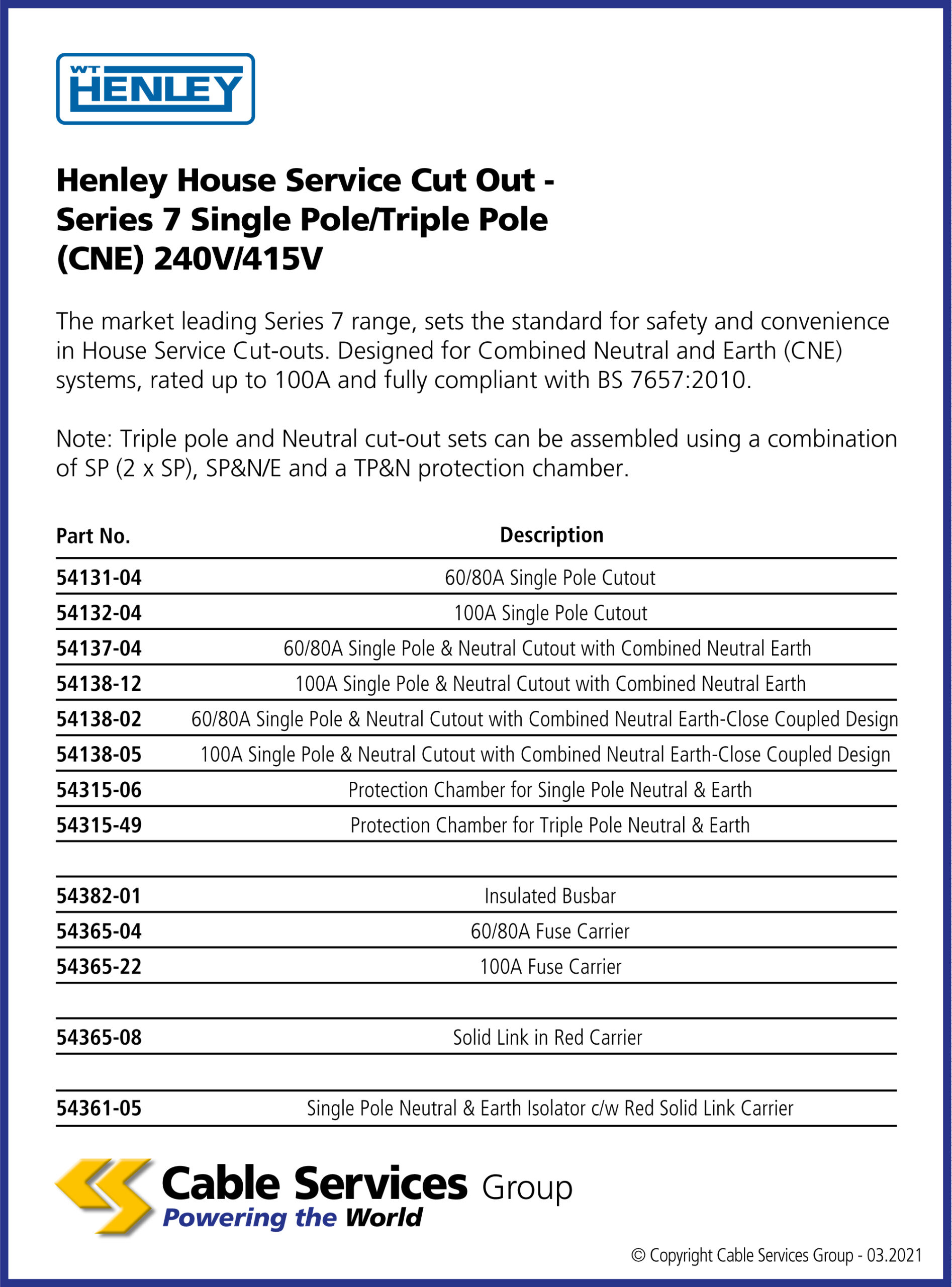

| Reference | Name | |
|---|---|---|
| 54131-04 | 60/80A Single Pole Cutout variant | |
| 54132-04 | 100A Single Pole Cutout variant | |
| 54137-04 | 60/80A Single Pole & Neutral Cutout with Combined Neutral Earth variant | |
| 54138-12 | 100A Single Pole & Neutral Cutout with Combined Neutral Earth variant | |
| 54138-02 | 60/80A Single Pole & Neutral Cutout with Combined Neutral Earth-Close Coupled Design variant | |
| 54138-05 | 100A Single Pole & Neutral Cutout with Combined Neutral Earth-Close Coupled Design variant | |
| 54315-06 | Protection Chamber for Single Pole Neutral & Earth variant | |
| 54315-49 | Protection Chamber for Triple Pole Neutral & Earth variant | |
| 54382-01 | Insulated Busbar variant | |
| 54365-04 | 60/80A Fuse Carrier variant | |
| 54365-22 | 100A Fuse Carrier variant | |
| 54365-08 | Solid Link in Red Carrier variant | |
| 54361-05 | Single Pole Neutral & Earth Isolator c/w Red Solid Link Carrier variant |
